Input Voltage: DC 12V LED Type: SMD 3528 LED Density: 240 LEDs/Meter
Beam Angle: 120 Degree Strip Width: 15mm LED Per Segment: 6 LED
Lumen Per Foot (White): 476 lm/ft
Power Consumption Per Meter : 19.2W @ 12V DC

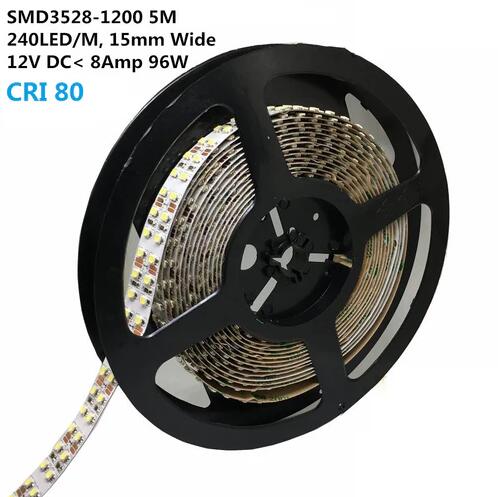

SMD3528-1200flexible LED light strip with SMD 3528 LEDs.Available in lengths of 0.5m(1.64ft), 1m(3.28ft), 2m(6.56ft), 3m(9.84ft), 5m(16.4ft) with White finish. Non-waterproof and IP65 flexible light strips will come with adhesive backing, IP67 strip will come with mounting clips. Can be cut into 3-LED segments for 12V DC operation version.
Item: 12VDC SMD3528 LED flexible strip, 1200LED per 5meter per roll
LED Type: single color SMD3528
LED QTY.: 240LED/Meter
Input Voltage: 12V DC
Wattage (max): 19.2Watt/Meter
Cuttable: Every 6LED per 1'' can be cut
Size(W*H/mm): 15*2
Weight: 0.2kgs per 5meter per roll
Lumen Output: 1200LM/Meter (max)
Light Color: Pure White(5500-6500K), Warm White(3000-3500K), Ultra Warm White(2700K), Natural White(4000-4500K)
CCT: 2700K-6500K
PCB color option: White
PCB Backing: Double-sided Adhesive backing, extra rubber mounting clip for IP67 and IP68
Beam Angle: 120°
Dimming: PWM dimmable(more information please refer to different Dimmer applications)
Waterproof Type: Non-waterproof(indoor use), Waterproof IP65, Waterproof IP67

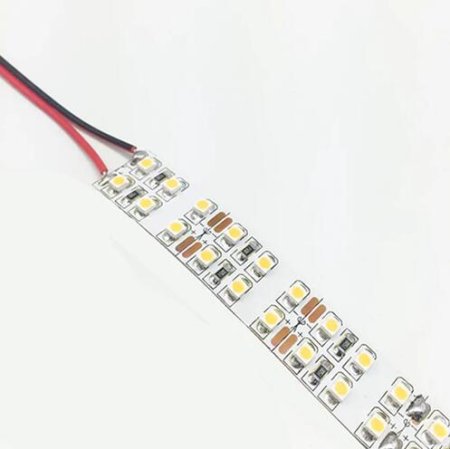

Pre-wiring: 20cm Red/Black Lead wire at one end of the strip
Packing: 5meter per roll packed in a static bag
NOTE:
* This 15mm wide strip has no comptaible solderless connector.
* When the strip make into a long run in 5meter, for there is voltage drop, which will cause some lost in brightness.
