(image for) 2.4G Touch Screen Dimmable LED RGBW Remote Wireless RF Controller For Light Strip

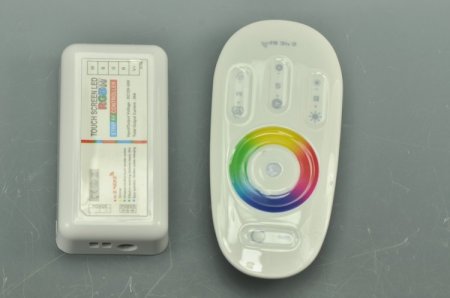

2.4G Touch Screen Dimmable LED RGBW Remote Wireless RF Controller For Light Strip

Model: LD-TCM-490-A
Shipping Weight: 0.127kg
In Stock: 989

2.4G Touch Screen Dimmable LED RGBW Remote Wireless RF Controller For Light Strip

$29.99

LD-TCM-490-A

Qty Discounts Off Price
1-4 $29.99	5-9 $26.99	10-19 $25.49	20-49 $23.99	50-99 $22.49	100+ $20.99

(0 Reviews) Add Your Review

Â Product Description: This system is a high-performance RGB led touch remote controller, adopting the most advanced PWM control technology, controlling all RGB led products with four lines and three circuits( common anode), owning 640 thousand colors and 20 automatical changing modes to...

This product was added to our catalog on Thursday 05 December, 2013.

Description

Â Product Description:
This system is a high-performance RGB led touch remote controller, adopting the most advanced PWM control technology, controlling all RGB led products with four lines and three circuits( common anode), owning 640 thousand colors and 20 automatical changing modes to choose.
Also, it has the memory function (that is to say, the previous settings will be resumed when power on again). It is widely used in led RGB strip light, led module and so on.
With the technology of the 2.4G high frequency wireless remote control, it has the characteristics of low power consumption, long distance transmission, and strong anti-interference ability, high speed telecommunications, etc.
The remote looks fashionable and elegant, with simple and practical functions of color changing and brightness dimming, the capacitive touch screen design makes the remote easy to use.

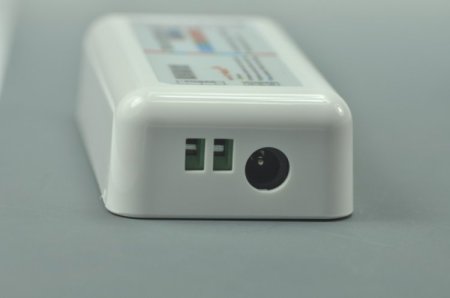

The modular design and easy screwed terminals enable the controller easy to match with all kinds of led light products.

Main features:
640000 Colors
Long life 50000H
Wireless intuitive touch remote control
Plug and play installation

Technical Data:

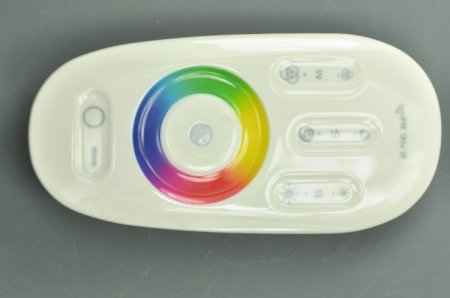

Remote:
Power: AAA battery*2pcsÂ (not included)
Material: ABS
Fabrication processing: Multicolor printing & UV varnish
Size: 110 x 52 x 20mm (L x W x H)

Controller:
Size: 85 x 45 x 23mm (L x W x H)
Working voltage: DC 12V ~ 24V
Control way: R G B three channels
Max load per channel: 6A
Total Output Current: 18A
Output connection: Common Anode(+)
Control distance: 30 meters
