(image for) DC12V 3x2A LED Touch RF RGB Controller For LED SMD RGB Strip

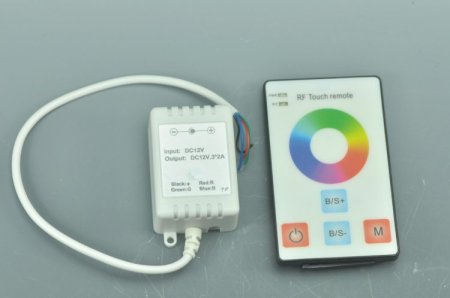

DC12V 3x2A LED Touch RF RGB Controller For LED SMD RGB Strip

Model: LD-TCM-250-A
Shipping Weight: 0.077kg
In Stock: 1000

DC12V 3x2A LED Touch RF RGB Controller For LED SMD RGB Strip

$16.88

LD-TCM-250-A

Qty Discounts Off Price
1-4 $16.88	5-9 $15.19	10-19 $14.34	20-49 $13.50	50-99 $12.66	100+ $11.81

(0 Reviews) Add Your Review

Technical parameters Controller Touch remote Working temperature: -20-60 degree Working Temperature: -20-60 degree Supply voltage: DC12V/24V (optional) Battery Specifications: 28*8mm Connection Mode:common anode ...

This product was added to our catalog on Thursday 05 December, 2013.

Description

Technical parameters

Controller	Touch remote
Working temperature: -20-60 degree	Working Temperature: -20-60 degree
Supply voltage: DC12V/24V (optional)	Battery Specifications: 28*8mm
Connection Mode:common anode	Supply Voltage: 12V
Output:3 loops	Static power consumption: 0.036mW
Output current: <2A(per loop)	Standby current: 3uA
Static power consumption: <1W	Work current: 300uA
Power output: 12V:<72W, 24V:<144W	Emission current: 12mA

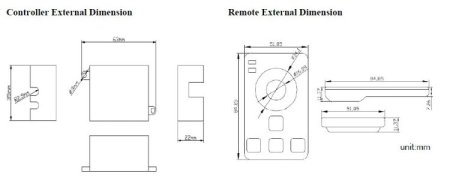

External dimension: L63Ã—W35Ã—H22 mm	Remote distance: 30m
Packing size: L105Ã—W65Ã—H40 mm	Standby time: 6 months
