Technical Parameters

Controller
1. Working temperature: -20-60 degree
2. Supply voltage: DC12V/24V(optional)
3. Connection mode: common anode
4. Output: 3 loops
5. Output current: <4A(per loop)
6. Static power consumption: <1W
7. Power output: 12V<144W; 24V<288W

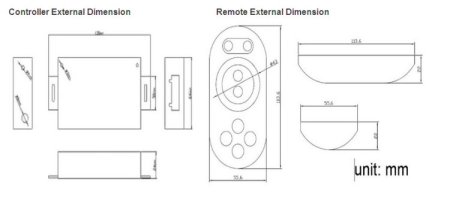

8. External dimension: L89xW70xH28mm
9. Packing size: L145xW95xH50mm
10. Net Weight:259g

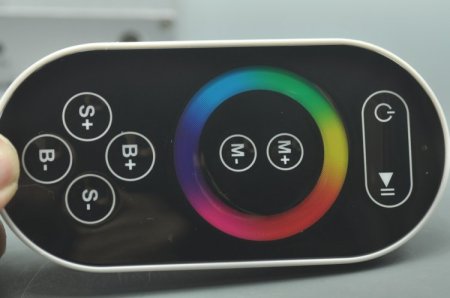

Touch remote
1. Working temperature: -20-60 degree
2. power supply mode: AAA*3 battery(Not Include)
3. Supply voltage: 12V
4. Static power consumption: 0.015mW
5. Standby current: 3uA
6. Work current: 300uA
7. Emission current: 12mA
8. Remote distance: 30m
9. Standby time: 6 months

Main feature

1. Touch-button, ultrathin, light quality, protable.
2. Touch-key count up to 64, up to 64 kinds of mode function, small volume , more key funcation.
3. Easy to use, have color pulley touch screen, all sorts of design and color mode at a glance, can a single point also can continuous touch to realize color mode select, users can speedily choose the needed color, and the static and dynamic mode can change freely.
4. Auto dormancy function, the remote control is without buttons state more than 20 seconds, remote will automatic enter the standby state, realize electricity, extending battery life.

Controller instruction:

1. Controller panel have 6 buttons, and the function as follows:

ON/OFF: you could turn on/off controller at any time;

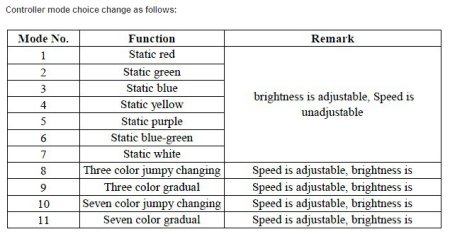

MODE: the color change button,there are 21 modes of change for you to choose;
B+: A brightness control button,the grade of the brightness add 1 by each pressing,a total of 100 grades;
B-: The grade of the brightness subtract 1 by each pressing;
S+: The grade of the speed change add 1 by each pressing,a total of 100 grades.
S-: The grade of the speed change subtract 1 by each pressing.
