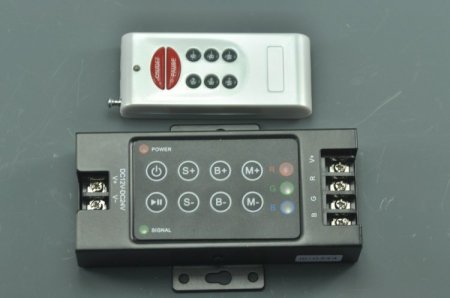

Black Steel LED 8 Key RGB Controller with RF Remote for RGB Strip Light 4A/Channel

RF 8-key controller adopts the advanced micro-control unit,it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible strip light, wall washer lamp, glass curtain wall light and so on;It has power-fail memory, synchronized indicator light show and other functions. At the same time,it has many advantages such as low price, easy connection and simplicity to use. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.
    Working temperature: -20-60 C
    Supply voltage: DC12V (optional DC5V, 24V available, please contact us if you need.)
    Output: 3 channels
    Connecting mode: Common anode (pls contact us if you need common cathode.)
    External dimension: L121*W53*H25 mm
    Packing size: L150*W76*H51 mm
    Net weight: 255g
    Gross weight: 285g
    Static power consumption: <1W
    Output current: <4A(each channel)
    Output power: 12V: <144W, 24V: <288W
    This item can work great with(MAX) 20 meters SMD5050 30LEDs/M LED Strips
    or 10 meters SMD5050 60LEDs/M LED Strips.

How to use:

1. Connect the load wire at first, following by the power wire
2. Adopt film button and RF for controlling,there are 8 buttons in all, the funtion of each key as follows:
(1): you could turn on/off controller at any time;
(2): Play/pause button,it is convenient for you to see the static effection of led;
S(3)+: The step of the speed change add 1 by each pressing;
S-(4): The step of the speed change subtract 1 by each pressing;
B+(5): A brightness control button,the step of the brightness add 1 by each pressing;
B-(6): The step of the brightness subtract 1 by each pressing;
M+(7): The NO. of patterns add 1 by each pressing;(refer to the following form)
M-(8): The NO. of patterns subtract 1 by each pressing;
Standard changes funtion as the following form:

No.	Patterns	Remarks	No.	Patterns	Remarks
1	Static red	   Brightness is adjustable,Speed is unadjustable.	14	Blue stroboflash	  Speed and Brightness are adjustable
2	Static blue		15	Purple stroboflash
3	Static purple		16	Green stroboflash
4	Static green		17	Yellow stroboflash
5	Static yellow		18	Cycan stroboflash
6	Static cyan		19	White stroboflash
7	Static white		20	R/B crossfade	  Speed is adjustable, brightness is unadjustable
8	Three-color jumpy changing	Speed and brightness are adjustable	21	B/G crossfade
9	Seven-color jumpy changing		22	G/R crossfade
10	Three-color gradual changing	Speed is adjustable,brightness is unadjustable	23	fadeout and fadein in whole
11	Seven-color gradual changing		24	  Random flashing	Â
12	Three-color running	Speed and Brightness are adjustable	25	AUTO	1-24Â
13	Red stroboflash		Â	Â	Â

Package Included:

• 1x RGB Controller
• 1x Remote
• 1x User Manual
