RF LED Controller For RGB LED Strip Light Wireless LED Control with 6 Keys 11 Modle

Model: LD-TCM-170-A
Shipping Weight: 0.145kg
In Stock: 996

RF LED Controller For RGB LED Strip Light Wireless LED Control with 6 Keys 11 Modle

$14.71

LD-TCM-170-A

Qty Discounts Off Price
1-4 $14.71	5-9 $13.24	10-19 $12.50	20-49 $11.77	50-99 $11.03	100+ $10.30

(0 Reviews) Add Your Review

Product DescriptionUniversal Red/Green/Blue (RGB) LED controller and dimmer with handheld Infrared Remote that can control any 12VDC RGB LED products. 7 static modes or 4 dynamic color-changing modes with speed and on/off controls. The maximum load is 4 amps per channel, 12 amps total. Product...

This product was added to our catalog on Tuesday 02 July, 2013.

Description

Product Description

Universal Red/Green/Blue (RGB) LED controller and dimmer with handheld Infrared Remote that can control any 12VDC RGB LED products. 7 static modes or 4 dynamic color-changing modes with speed and on/off controls. The maximum load is 4 amps per channel, 12 amps total.

Product Specifications
Amps	12.00 Amps	Amps per Channel	4 Amps/CH
Remote^[1]	Infrared (IR)/Multi Device Pairing	Standards And Certifications	CE/FCC/ROHS Compliant
Suitable for Vehicles	No	Type	RGB Controller
Volts	12 VDC

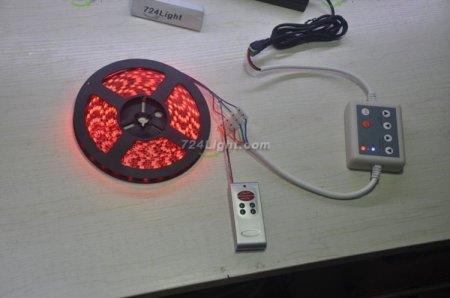

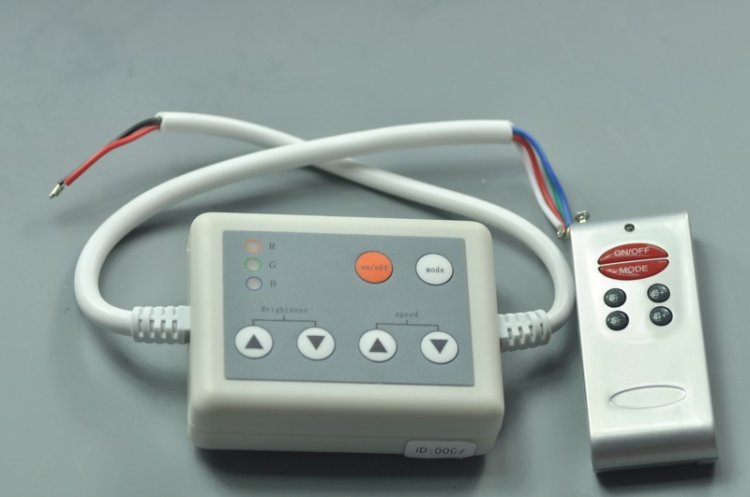

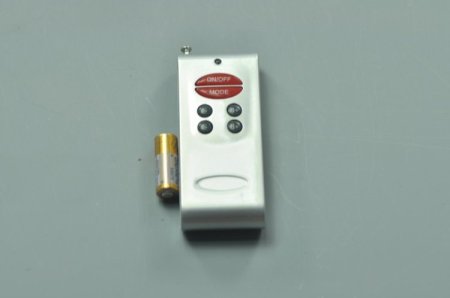

rf wireless rgb led strip controller, with RF remote panel controller for led lighting, 6-key RF controller adopts the advanced micro-control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on. It has power-fail memory, synchronized indicator light show and other functions. At the same time, it has many advantages such as low price, easy connection and simplicity to use. According to the actual need of customers, it can carry out jumpy changing, gradual changing, strobe flash and other effects of change, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control. Technical Parameters Working temperature: -20-60 Â°C Supply voltage: DC5V, 12V ,18V, 24V(specify the required Voltage on orders) Output: 3 channels Connecting mode: common anode External dimension: L105Î§W75Î§H29 mm Net weight: 150g Static power consumption: <1W Output current: <4A(each channel). Output power: 5V:<60W, 12V:<144W, 24V:<288W. RF remote panel
