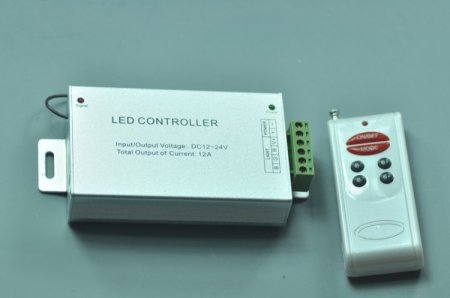

RF Audio controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time, it has many advantages such as convenient connection, simplicity to use and others. According to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.

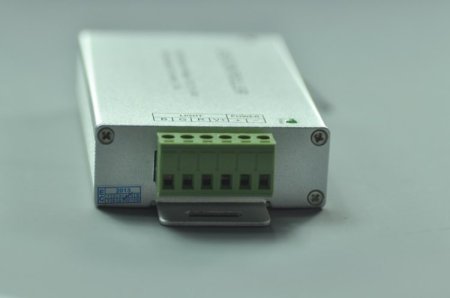

Technical parameters
- Working temperature: -20-60 °C
- Supply voltage: 12V-24V 12A
- Output: 3 channels
- Connectiing mode: common anode
- Transmission/Receiving frequency: 433Mhz
- External dimension: L130ΧW64ΧH24 mm
- Packing size: L145ΧW95ΧH50 mm
- Net weight: 185g
- Gross weight: 220g
- Static power consumption: <1W
- Output current: <4A(each channel)
- Output power: 5V:<60W, 12V:<144W, 24V:<288W
| No |
Patterns |
Remarks |
| 1 |
Static red |
Brightness is adjustable,Speed is unadjustable. |
| 2 |
Static green |
| 3 |
Static yellow |
| 4 |
Static blue |
| 5 |
Static purple |
| 6 |
Static cyan |
| 7 |
Static white |
| 8 |
Three-color jumpy changing |
Speed and brightness are adjustable |
| 9 |
Seven-color jumpy changing |
| 10 |
Three-color gradual changing |
Speed is adjustable |
| 11 |
Seven-color gradual changing |
| 12 |
Three-color jumpy changing(extenal signal) |
Speed changes with the voice swing, brighteness controlled with the volume,the higher volume is, the greater the brightness.
|
| 13 |
Seven-color jumpy changing (extenal signal) |
Application Circuit 1
Application Circuit 2
