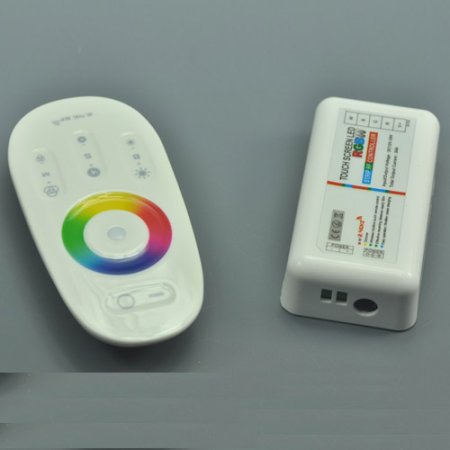

(image for) 2.4G RGBW Wireless Controller With Dimmable Touch Panel for RGBW LED Bulb and LED Strip Light

2.4G RGBW Wireless Controller With Dimmable Touch Panel for RGBW LED Bulb and LED Strip Light

Model: LD-TCM-490-A
Shipping Weight: 0.13kg
In Stock: 981

2.4G RGBW Wireless Controller With Dimmable Touch Panel for RGBW LED Bulb and LED Strip Light

$28.13

LD-TCM-490-A

Qty Discounts Off Price
1-4 $28.13	5-9 $25.31	10-19 $23.91	20-49 $22.50	50-99 $21.09	100+ $19.69

(0 Reviews) Add Your Review

2.4G RF Wireless Touch Screen Dimmable LED RGB Remote Controller for LED Strip Light This system is a high-performance RGB LED Touch remote controller, adopting the most advanced PWM control technology, controlling all RGB LED products with four lines and three circuits (common anode), owning 640...

This product was added to our catalog on Tuesday 02 June, 2015.

Description

2.4G RF Wireless Touch Screen Dimmable LED RGB Remote Controller for LED Strip Light

This system is a high-performance RGB LED Touch remote controller, adopting the most advanced PWM control technology, controlling all RGB LED products with four lines and three circuits (common anode), owning 640 thousand colors and 20 automatical changing modes to choose.
Also, It has the memory function (that is to say, the previous settings will be resumed when power on again). It is widely used in LED RGB strip light, led module and so on.
With the technology of the 2.4G high frequency wireless remote control, it has the characteristics of low power consumption, long distance transmission, and strong anti-interference ability, high speed telecommunications, etc.
The remote looks fashionable and elegant, with simple and practical functions of color changing and brightness dimming, the capacitive touch screen design makes the remote easy to use.
The modular design and easy screwed terminals enable the controller easy to match with all kinds of led light products.

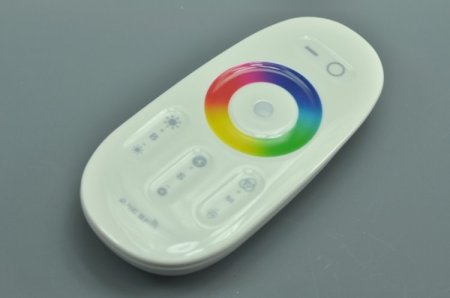

Technical Data Remote

Size:110 x 52 x 20mm
Power:AAA battery x2
Material:ABS
Fabrication processing:Multicolor printing & UV varnish

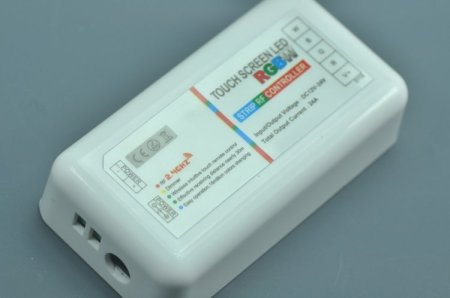

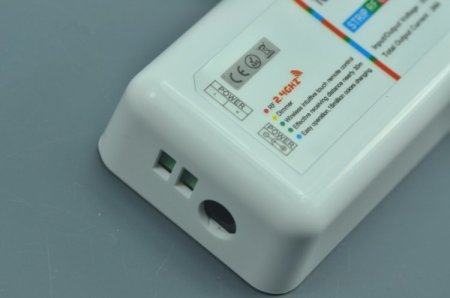

Controller

Size:85 x 45 x 23mm
Working voltage:DC12V -24 V
Control way:RGB three channels
Max load per channel:6A

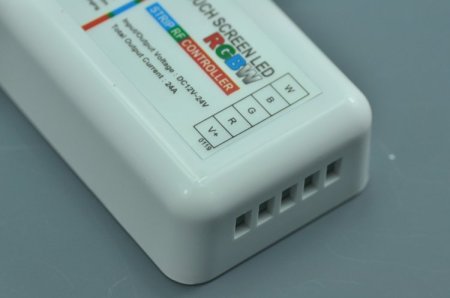

Output connection:Common anode
Telecontrol distance:30 meters
Programs:20 kinds

Programming (code clearing and code matching) Code matching:

For a new kit (remote & controller), the remote can work only when it is programmed to the controller.
please follow the below instructions:
Confirm it is correctly connected between power supply, led controller and led load.
Switch off the power, then switch on again, and press key 5 once (within 3 seconds) the moment you see the light is on. the led light blinks twice slowly when it is done.

Code clearing:

The code can be cleared as needed.
The kit (remote an controller) will stay in the original state after code clearing. and it can work again when code rematching is done.
Please follow the below instructions:
Confirm it is correctly connected between power supply, led controller and led load.
Switch off the power ,then switch on again, and long press key 5 (with 3 seconds) the moment you see the light is on. The LED light blinks nine times swiftly when it is done.
