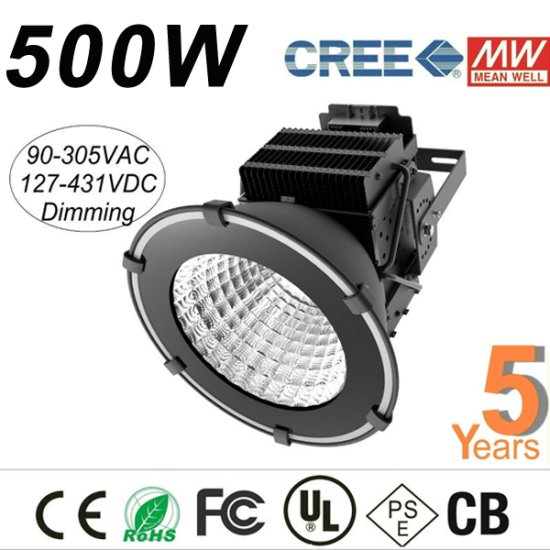

724Light LD-LHB-101 series 500W LED high bay light Lifetime >
50000hr, Pure white, warm white and cool white color options, 70% energy saving, and easy to install, suitable for Football, Stadium, Stadium, Pier, Airport, Plaza Industria.(Big order/need customized LED high bay light, info@724light.com)
| Product Specifications |
|---|
| Part number: |
LD-LHB-101-500W |
| Power |
500W |
| Led Chip: |
CREE LED |
| Lumens: |
37855-38150LM |
| Lumens: |
Warm White(2700-3000K)/Nature White(4000-4500K)/Cool White(5500-6500K) |
| Power Supply: |
Mean Well HLG-240H-42A(2pcs) |
| Operating Voltage: |
100~240VAC |
| Working Frequency: |
50-60HZ |
| Working Environment: |
-25 - + 45° C |
| Beam Degree: |
60 Degree |
| Material: |
Aluminum+Copper |
| Body Color: |
Black |
| IP Grade: |
IP65 |
| Life-span: |
50000hrs |
| Certification: |
CE ROHS |
| Warranty: |
3 Years Warranty |

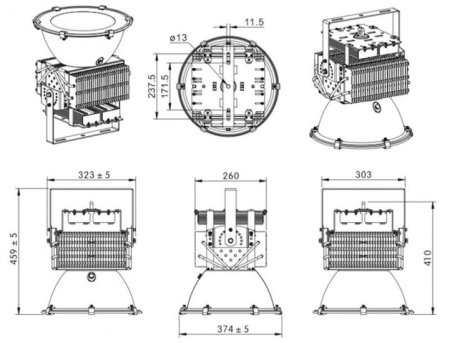

| Lamp Dimension: |
Dia 374*H448mm |
| Weight: |
15kg |
| Packaging List |
1 * High Bay Light
2 * Mean Well HLG-240H-42A Power Supply
|
ALL LD-LHB-101 Series LED High Bay Light
| Images |
Part Number |
Power |
LED Chip |
Lumens |
Power Supply |
Dimensions |
Weight |
 |
LD-LHB-101-100W |
100W |
CREE LED |
8400-8700LM |
Mean Well HLG-100H-36A |
Dia 374*H410mm |
11.5Kg |
 |
LD-LHB-101-120W |
120W |
CREE LED |
10000-10400LM |
Mean Well HLG-120H-36A |
Dia 374*H410mm |
11.8Kg |
 |
LD-LHB-101-150W |
150W |
CREE LED |
12850-13200LM |
Mean Well HLG-150H-48A |
Dia 374*H410mm |
13Kg |
 |
LD-LHB-101-200W |
200W |
CREE LED |
16400-16800LM |
Mean Well HLG-240H-42A |
Dia 374*H410mm |
13Kg |
 |
LD-LHB-101-300W |
300W |
CREE LED |
24850-25300LM |
Mean Well HLG-150H-36A(2pcs) |
Dia 374*H410mm |
13.6Kg |
 |
LD-LHB-101-400W |
400W |
CREE LED |
32865-33150LM |
Mean Well HLG-185H-42A(2pcs) |
Dia 374*H448mm |
15Kg |
 |
LD-LHB-101-500W |
500W |
CREE LED |
37855-38150LM |
Mean Well HLG-240H-42A(2pcs) |
Dia 374*H448mm |
15Kg |
