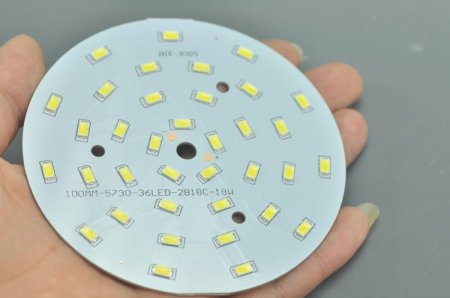

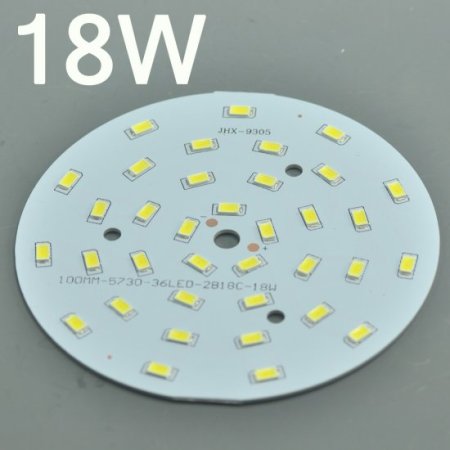

18WÂ PCB For LED BULB/led downlight Dry ,this semi-finished chip to produce up to max
990 lumens. Color include:Pure White, Warm White.(We can do any color temperature led chip,if need custom/wholesale ,please contact
info@724light.com:) Â
Â
Â
| Product Specifications |
|---|
| Part number: |
PCBH-DW-H-5730-18W |
| Wattage: |
18W |
| Compares to: |
45 Watt Halogen Quartz |
| Color: |
Pure White, Warm White |
| Color Temperature: |
Pure White(6000-6500k),Warm White(2700-3500k) |
| Lumen: |
990 Lumens |
| LED Type: |
SMD 5730 |
| LED Quantity: |
1x36 series |
| Beam Angle: |
Approx. 140° |
| CRI: |
80 CR |
| Operating Temperature: | -40~+50 °C |
| Materials: | Aluminum |
| Operating Voltage: | 54-60V |
| Operating Current: |
260-300mA |
| Dimensions: |
100mm |
| Lifetime: | 40000 Hours |
| Standards And Certifications: | CE/FCC/ROHS Compliant |
| Warranty: | 2 Years |
| Weight : |
0.025 kg |
| Packaging list: | 1 pcs x  semi-finished pcb with led |
| Number into the box : |
100pcs |
