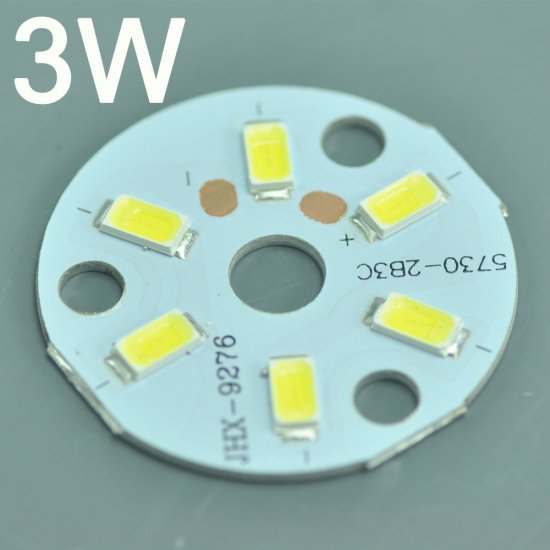

LED Dowlight 3W aluminium PCB SMD5730 Semi-Finished Dry LED Aluminium Base For LED Bulb

There are no additional tax charge

(image for) LED Dowlight 3W aluminium PCB SMD5730 Semi-Finished Dry LED Aluminium Base For LED Bulb

LED Dowlight 3W aluminium PCB SMD5730 Semi-Finished Dry LED Aluminium Base For LED Bulb

Model: PCBH-DW-H-5730-3W
Shipping Weight: 0.003kg
In Stock: 99965

Qty Discounts Off Price

50-499
$0.60

500-999
$0.54

1,000-2,999
$0.47

3,000-4,999
$0.40

5,000+
$0.34

* Discounts may vary based on options above

$0.67

PCBH-DW-H-5730-3W

(0 Reviews) Add Your Review

724Light 3WÂ PCB For LED BULB/led downlight Dry ,this semi-finished chip to produce up to max 165 lumens. Color include:Pure White, Warm White.(We can do any color temperature led chip,if need custom/wholesale ,please contact info@724light.com:) Â Â Â Product...

This product was added to our catalog on Monday 22 September, 2014.

Description

724Light 3WÂ PCB For LED BULB/led downlight Dry ,this semi-finished chip to produce up to max 165 lumens. Color include:Pure White, Warm White.(We can do any color temperature led chip,if need custom/wholesale ,please contact info@724light.com:) Â
Â Â

Product Specifications
Part number:	PCBH-DW-H-5730-3W
Wattage:	3W
Compares to:	7.5 Watt Halogen Quartz
Color:	Pure White, Warm White
Color Temperature:	Pure White(6000-6500k),Warm White(2700-3500k)
Lumen:	165 Lumens
LED Type:	SMD 5730
LED Quantity:	1x6 series
Beam Angle:	Approx. 140Â°
CRI:	80 CR
Operating Temperature:	-40~+50 Â°C
Materials:	Aluminum
Operating Voltage:	9-12V
Operating Current:	260-300mA
Dimensions:	32mm
Lifetime:	40000 Hours
Standards And Certifications:	CE/FCC/ROHS Compliant
Warranty:	2 Years
Weight :	0.003 kg
Packaging list:	1 pcs x Â semi-finished pcb with led
Number into the box :	100pcs
