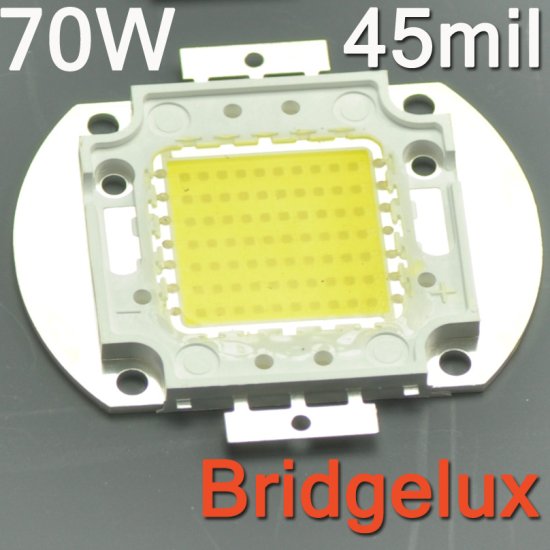

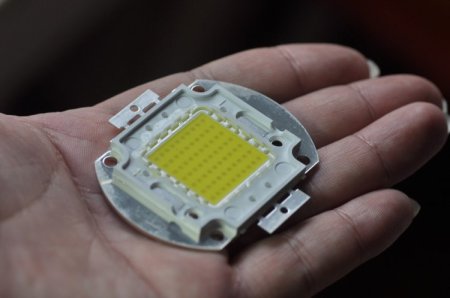

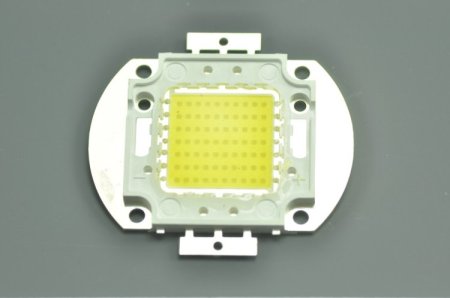

724Light Bridgelux 45mil*45mil series
70W LED high power chip to produce up to max
6300 lumens. Color include:Pure White, Warm White,Blue,Green,Red,Yellow,Purple UV. This suit for diy high power led light such as floodlight or the superbright led light.(We can do any color temperature led chip,if need custom/wholesale ,please contact
info@724light.com:)
| Product Specifications |
|---|
| Part number: | CHIP-BC-PR-45mil-70W |
| Wattage: | 70W |
| Compares to: |
165 Watt Halogen Quartz |
| Color: |
Pure White, Warm White,Blue,Green,Red,Yellow,Purple UV |
| Color Temperature: |
Pure White(6000-6500k),Warm White(2700-3500k),Blue(450-460nm),Green(520-525nm),Red(620-625nm),Yellow(605-610nm),Purple UV(440-445 nm) |
| Lumen: |
6300 Lumens |
| LED Type: | Bridgelux 45mil*45mil |
| LED Quantity: | 10 x 7 series |
| Beam Angle: |
Approx. 140° |
| CRI: |
80 CR |
| Operating Temperature: | -40~+50 °C |
| Materials: | Aluminum/Copper Holder |
| Operating Voltage: | 30-36V |
| Operating Current: |
2100-2450mA |
| Dimensions: |
Chip Size: 22mm x 22mm
PCB Size:65mm x 52mm |
| Lifetime: | 40000 Hours |
| Standards And Certifications: | CE/FCC/ROHS Compliant |
| Warranty: | 2 Years |
| Weight : |
0.06 kg |
| Packaging list: |
1 pcs x High Power Chip |
| Number into the box : |
15pcs |
