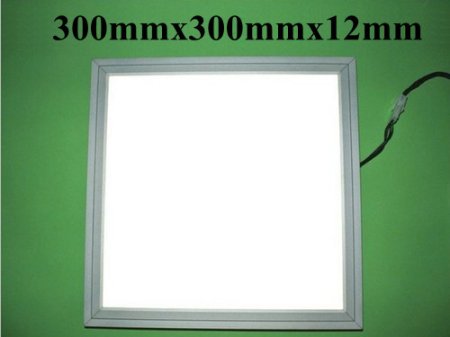

300*300*12mm LED Panel Light ,Super bright 3014LED as lighting sources, aluminium frame with good heat conduction.
Instant start, no flickering, no humming. Input voltage 85-230V (LED Panel Light with constant current driver), No electric wave, Imported light diffusion material,mercury and lead free.
High lumen output,high efficiency，energy saving up to 60%, Eco-friendly, energy-saving and high luminous efficacy. excellent heat dissipation structure，long lifespan,normal use can reach over 30,000hours.
Specifications |
| Dimension |
300*300*12mm |
Color |
Pure White/Warm White/Cold White |
| Color Temperature |
3000K ~ 6000K |
Input |
AC80-265V 50-60Hz |
| LED |
SMD3014 |
Lighting Angle |
120° |
| IP Rating |
IP42 |
Material |
Aluminum And PMMA Cover |
| Weight |
1.2Kg |
Packeage Dimension |
L405 x W405 x H55 |
Model |
LED type |
LED Qty |
Power Consumption |
Luminous flux |
| GY-PL0303-9W |
SMD3014 |
84 |
9W |
675-750LM |
| GY-PL0303-12W |
SMD3014 |
110 |
12W |
900-1000LM |
| GY-PL0303-18W |
SMD3014 |
160 |
18W |
1350-1500LM |
| GY-PL0303-24W |
SMD3014 |
220 |
24W |
1800-1950LM |
| GY-PL0303-30W |
SMD3014 |
308 |
30W |
2300-2500LM |
| GY-PL0303-36W |
SMD3014 |
320 |
36W |
2700-2900LM |
Applications:
- Metro Station /Lobby & Passageway
- Residential Home /Institution Buildings
- Exhibition lighting & decoration Counter
- Restaurant / Retail Store / Grocery Store
Features:
- 1.Low power & high intensity save 10 times energy more than that of incandescent fixtures 2 times of CFL luminaries at same illumination.
- 2.Wide light emitting dimension (≥120degree) uniform light no glare no radiated heat.
- 3.The integration of thermal design to derive heat to ensure the LED light-emitting efficiency and span life up to 50000 hours. As a result cost of maintenance and replacement is reduced.
- 4.Instant start no flickering no humming.
- 5.The brightness or color can be dimmable with remote controller
- 6.Available in various sizes can be custom-made.

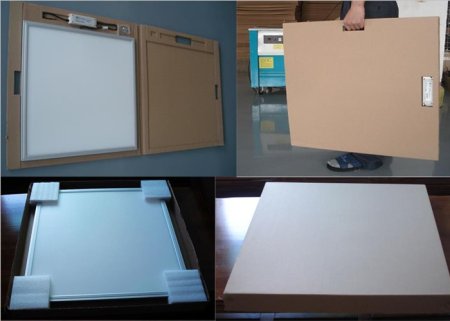

Package Includes
- 1 x LED Panel Light
- 1 x LED Power Driver
