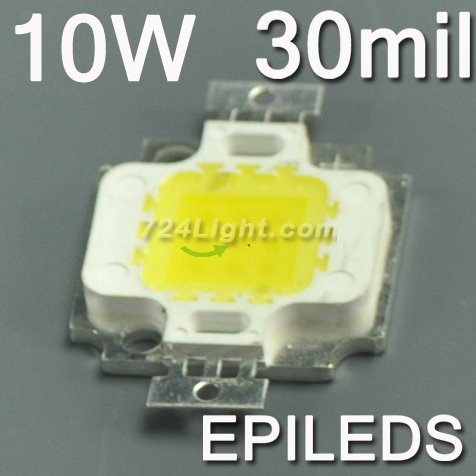

EPILEDS 10W High Power LED Chip 800 Lumens 30*30mil For Diy LED light

Model: CHIP-BC-GH-30mil-10W
Availability :  In Stock
  • EPILEDS 10W High Power LED Chip 800 Lumens 30*30mil For Diy LED light
  • EPILEDS 10W High Power LED Chip 800 Lumens 30*30mil For Diy LED light
  • EPILEDS 10W High Power LED Chip 800 Lumens 30*30mil For Diy LED light
  • EPILEDS 10W High Power LED Chip 800 Lumens 30*30mil For Diy LED light
$2.50
LED Color

Qty Discounts Off Price
1-4
$2.50		 5-19
$2.25		 20-49
$2.13		 50-99
$2.00		 100-199
$1.88		 200+
$1.75

* Discounts may vary based on options above
QTY :

724Light EPILEDS 30mil*30mil series 10W LED high power chip to produce up to max 800 lumens. Color include:Pure White, Warm White,Blue,Green,Red,Yellow,Purple UV. This suit for diy high power led light such as floodlight or the superbright led light.(We can do any color temperature led chip,if need custom/wholesale ,please contact [email protected]:)

Product Specifications
Part number:CHIP-BC-GH-30mil-10W
Wattage:10W
Compares to: 22 Watt Halogen Quartz
Color: Pure White, Warm White,Blue,Green,Red,Yellow,Purple UV
Color Temperature: Pure White(6000-6500k),Warm White(2700-3500k),Blue(450-460nm),Green(520-525nm),Red(620-625nm),Yellow(605-610nm),Purple UV(440-445 nm)
Lumen: 800 Lumens
LED Type:EPILEDS 30mil*30mil
LED Quantity:3 x 3 series
Beam Angle: Approx. 140°
CRI: 80 CR
Operating Temperature:-40~+50 °C
Materials:Aluminum/Copper Holder
Operating Voltage:9-12V
Operating Current: 900-1050mA

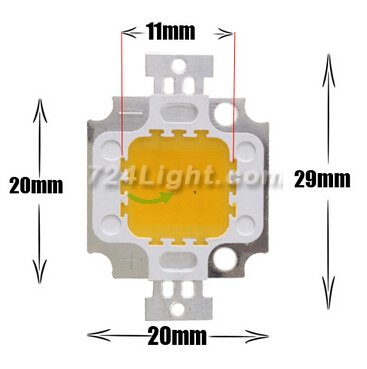

Dimensions: Chip Size: 11mm x 11mm
PCB Size:29mm x 20mm
Lifetime:40000 Hours
Standards And Certifications:CE/FCC/ROHS Compliant
Warranty:2 Years
Weight : 0.03 kg
Packaging list: 1 pcs x High Power Chip
Number into the box : 50pcs
