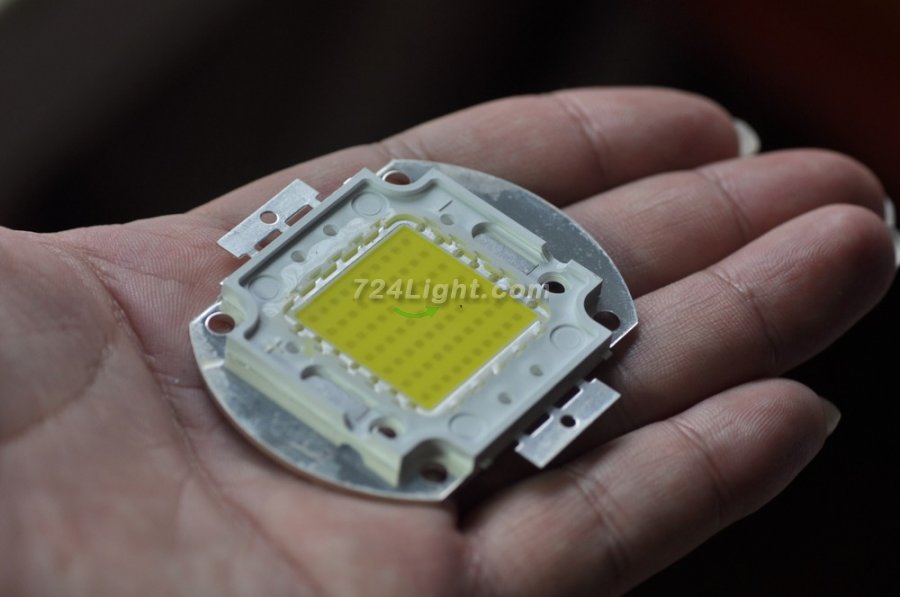

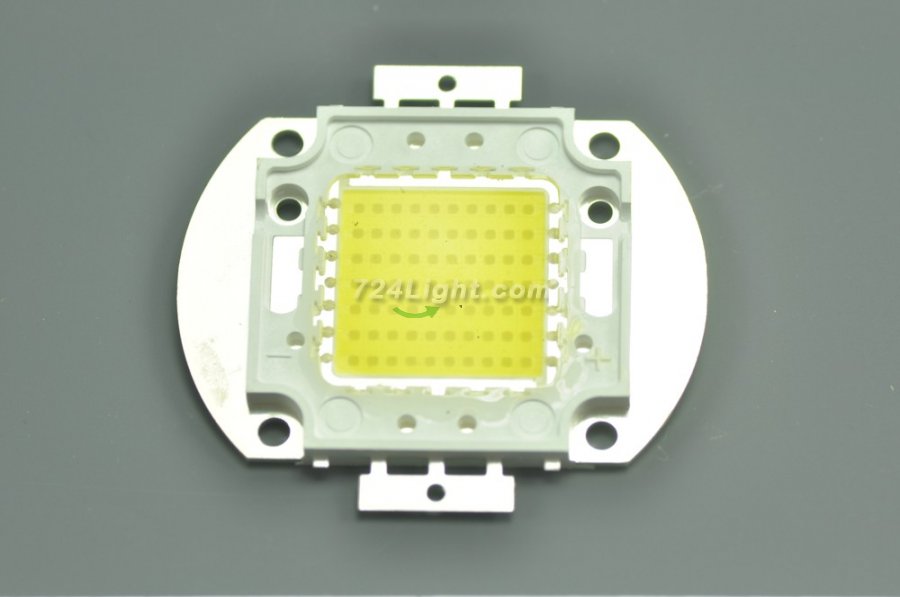

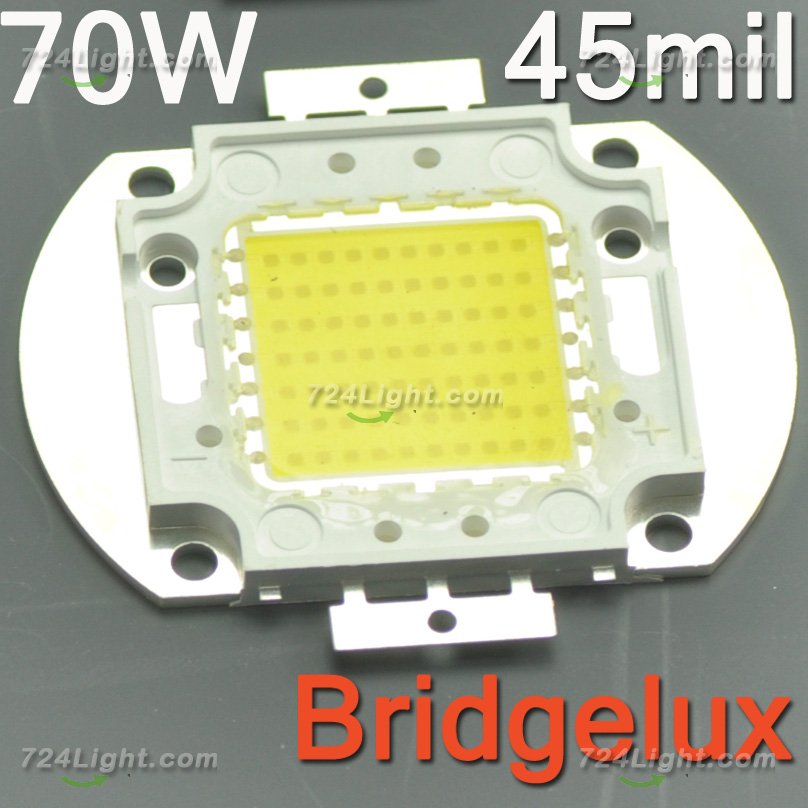

Bridgelux 70W LED High Power Chip 6300 Lumens 45*45mil LED Lights

Model: CHIP-BC-PR-45mil-70W
Availability :  In Stock
  • Bridgelux 70W LED High Power Chip 6300 Lumens 45*45mil LED Lights
  • Bridgelux 70W LED High Power Chip 6300 Lumens 45*45mil LED Lights
  • Bridgelux 70W LED High Power Chip 6300 Lumens 45*45mil LED Lights
$43.90
LED Color

Qty Discounts Off Price
1-4
$43.90		 5-19
$39.51		 20-49
$37.32		 50-99
$35.12		 100-199
$32.93		 200+
$30.73

* Discounts may vary based on options above
QTY :

724Light Bridgelux 45mil*45mil series 70W LED high power chip to produce up to max 6300 lumens. Color include:Pure White, Warm White,Blue,Green,Red,Yellow,Purple UV. This suit for diy high power led light such as floodlight or the superbright led light.(We can do any color temperature led chip,if need custom/wholesale ,please contact [email protected]:)

Product Specifications
Part number:CHIP-BC-PR-45mil-70W
Wattage:70W
Compares to: 165 Watt Halogen Quartz
Color: Pure White, Warm White,Blue,Green,Red,Yellow,Purple UV
Color Temperature: Pure White(6000-6500k),Warm White(2700-3500k),Blue(450-460nm),Green(520-525nm),Red(620-625nm),Yellow(605-610nm),Purple UV(440-445 nm)
Lumen: 6300 Lumens
LED Type:Bridgelux 45mil*45mil
LED Quantity:10 x 7 series
Beam Angle: Approx. 140°
CRI: 80 CR
Operating Temperature:-40~+50 °C
Materials:Aluminum/Copper Holder
Operating Voltage:30-36V
Operating Current: 2100-2450mA
Dimensions: Chip Size: 22mm x 22mm
PCB Size:65mm x 52mm
Lifetime:40000 Hours
Standards And Certifications:CE/FCC/ROHS Compliant
Warranty:2 Years
Weight : 0.06 kg
Packaging list: 1 pcs x High Power Chip
Number into the box : 15pcs
