Bridgelux 30W High Power Beads LED Chip 2700 Lumens 45*45mil LED lighting

Model: CHIP-BC-PR-45mil-30W
Availability :  In Stock
  • Bridgelux 30W High Power Beads LED Chip 2700 Lumens 45*45mil LED lighting
  • Bridgelux 30W High Power Beads LED Chip 2700 Lumens 45*45mil LED lighting
  • Bridgelux 30W High Power Beads LED Chip 2700 Lumens 45*45mil LED lighting
  • Bridgelux 30W High Power Beads LED Chip 2700 Lumens 45*45mil LED lighting
$19.50
LED Color

Qty Discounts Off Price
1-4
$19.50		 5-19
$17.55		 20-49
$16.58		 50-99
$15.60		 100-199
$14.63		 200+
$13.65

* Discounts may vary based on options above
QTY :

724Light Bridgelux 45mil*45mil series 30W LED high power chip to produce up to max 2700 lumens. Color include:Pure White, Warm White,Blue,Green,Red,Yellow,Purple UV. This suit for diy high power led light such as floodlight or the superbright led light.(We can do any color temperature led chip,if need custom/wholesale ,please contact [email protected]:)

Product Specifications
Part number:CHIP-BC-PR-45mil-30W
Wattage:30W
Compares to: 75 Watt Halogen Quartz
Color: Pure White, Warm White,Blue,Green,Red,Yellow,Purple UV
Color Temperature: Pure White(6000-6500k),Warm White(2700-3500k),Blue(450-460nm),Green(520-525nm),Red(620-625nm),Yellow(605-610nm),Purple UV(440-445 nm)
Lumen: 2700 Lumens
LED Type:Bridgelux 45mil*45mil
LED Quantity:10 x 3 series
Beam Angle: Approx. 140°
CRI: 80 CR
Operating Temperature:-40~+50 °C
Materials:Aluminum/Copper Holder
Operating Voltage:30-36V
Operating Current: 900-1050mA

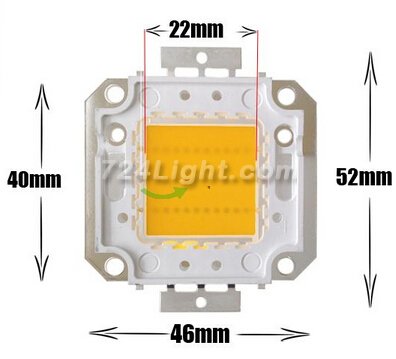

Dimensions: Chip Size: 22mm x 22mm
PCB Size:52mm x 46mm
Lifetime:40000 Hours
Standards And Certifications:CE/FCC/ROHS Compliant
Warranty:2 Years
Weight : 0.06 kg
Packaging list: 1 pcs x High Power Chip
Number into the box : 15pcs
