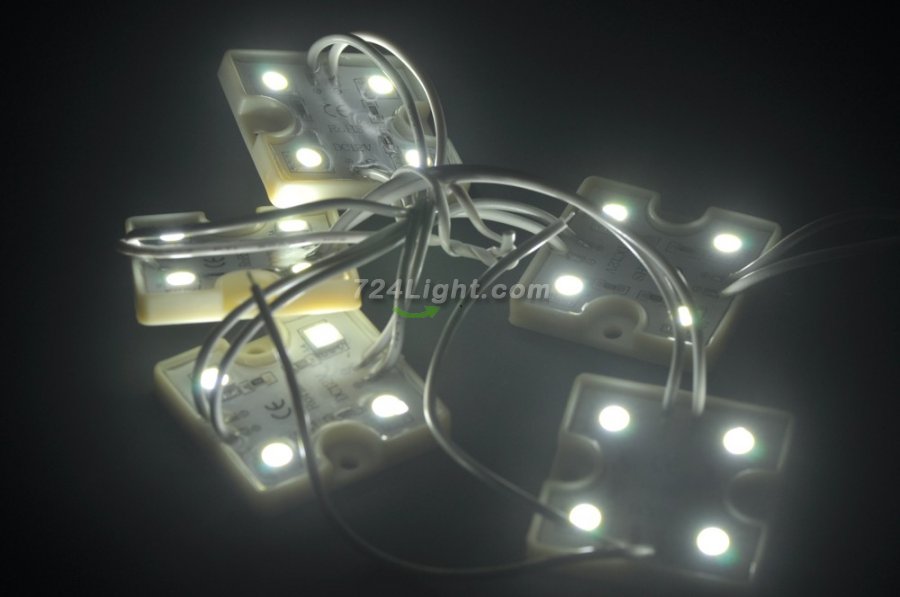

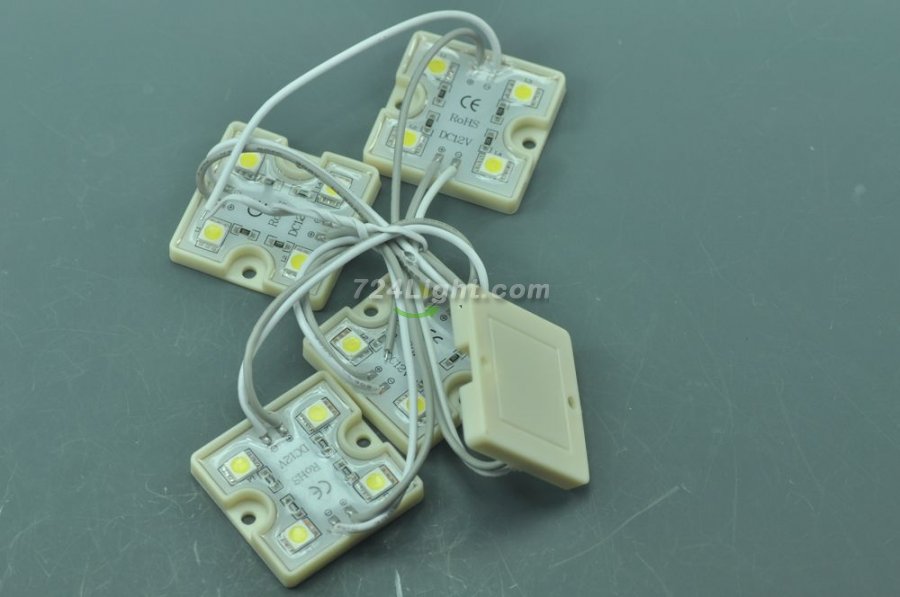

5050 SMD LED Modules 5050 4 LED Modules 36x36x5MM 12V 1W Waterproof IP65 Modules

Model: GY-ML-SMD5050-02
Availability :  In Stock
  • 5050 SMD LED Modules 5050 4 LED Modules 36x36x5MM 12V 1W Waterproof IP65 Modules
  • 5050 SMD LED Modules 5050 4 LED Modules 36x36x5MM 12V 1W Waterproof IP65 Modules
$0.67
LED Color

Color

Qty Discounts Off Price
20-99
$0.67		 100-499
$0.60		 500-999
$0.57		 1,000-1,999
$0.54		 2,000-4,999
$0.50		 5,000+
$0.44

* Discounts may vary based on options above
Min:  20 Units:  20
QTY :


LED Type: 4 x SMD 5050
Size(mm): 36x36MM
Light Color: Pure White/Warm White/Cold White/Blue/Red/Green/Yellow
Input: 12V DC
Power(W) 1w/pcs
Min Cutting: 1pcs
Waterproof IP65
Length(Row): 232cm(91.34inch)
Luminous: 18-20lm/led
Luminous(Row): 1600lm
Life: 50,000 hrs
Materials: Plastic
Temperature: -40℃- 60℃ (-40℉~140℉)
Wire Length : the lines of the two module light is 8cm(3.15inch)
Package: 20pcs in one string, 100pcs in one package

The LED Module power consumption calculation: If the power is 1W each LED Module, one string power is 20x1W.(Suggest 24w or 36w power supply)
