  4. 3W CL-HQ-04-3W LED Down Light Cut-out 70.5mm Diameter 3.4" Gray Recessed Dimmable/Non-Dimmable LED Down Light

3W CL-HQ-04-3W LED Down Light Cut-out 70.5mm Diameter 3.4" Gray Recessed Dimmable/Non-Dimmable LED Down Light

Model: LD-CL-HQ-04-3W
Availability :  In Stock
  • 3W CL-HQ-04-3W LED Down Light Cut-out 70.5mm Diameter 3.4" Gray Recessed Dimmable/Non-Dimmable LED Down Light
  • 3W CL-HQ-04-3W LED Down Light Cut-out 70.5mm Diameter 3.4" Gray Recessed Dimmable/Non-Dimmable LED Down Light
  • 3W CL-HQ-04-3W LED Down Light Cut-out 70.5mm Diameter 3.4" Gray Recessed Dimmable/Non-Dimmable LED Down Light
  • 3W CL-HQ-04-3W LED Down Light Cut-out 70.5mm Diameter 3.4" Gray Recessed Dimmable/Non-Dimmable LED Down Light
  • 3W CL-HQ-04-3W LED Down Light Cut-out 70.5mm Diameter 3.4" Gray Recessed Dimmable/Non-Dimmable LED Down Light
  • 3W CL-HQ-04-3W LED Down Light Cut-out 70.5mm Diameter 3.4" Gray Recessed Dimmable/Non-Dimmable LED Down Light
  • 3W CL-HQ-04-3W LED Down Light Cut-out 70.5mm Diameter 3.4" Gray Recessed Dimmable/Non-Dimmable LED Down Light
$7.60
LED Color

Driver and Dimmable

Qty Discounts Off Price
1-4
$7.60		 5-9
$7.22		 10-19
$6.84		 20-49
$6.46		 50-99
$6.08		 100+
$5.70

* Discounts may vary based on options above
QTY :
Part Number Hole Size Size Material Surface Color Brightness Light Source Light Angle CRI Weight
LD-CL-HQ-04-12W 0.474 KG
LD-CL-HQ-04-9W 0.474 KG
LD-CL-HQ-04-7W 0.305 KG
LD-CL-HQ-04-5W 0.305 KG

724Light LD-CL-HQ-04 series 3W high lumens of exceptional 75+ CRI light,Lifetime > 50000hr, Pure white and warm white color options,Dimmable/Non-Dimmable options. maximum 85 lumens per watt.50% energy saving, and easy to install, suitable for office, home, indoor, lobby, living room, bedroom, bathroom, kitchen, cabinet, company.(Big order/need customized LED downlight, [email protected])

Product Specifications
Part number: LD-CL-HQ-04-3W
Cut-out: Φ70.5mm
Surface Diameter: 3.4"(86mm)
Power Consumption: 3W
Operating Voltage:100~277VAC
Body Material: Aluminum
Replacement For: 4.5W CFL
Body Color: Gray
LED Color: Pure White(6000-6500k),Warm White(2700-3500k)
Lumen: 255 Lumens
LED Type: Epistar Chip
LED Quantity: 3*1W/PCS
Beam Angle: Approx. 60°
CRI: 75 CR
Operating Temperature: -40~+45 °C
Dimmable: Dimmable(Default)/Non-Dimmable
Power Factor: 0.90
Connector: 2-Pin 10cm Power Line(4")
Lens:Clear
Lifetime: 50000 Hours
Standards And Certifications:CE/FCC/ROHS Compliant
Warranty: 2 Years
Weight : 0.188 kg
Dimensions(D*H): 86mm x 47mm
Packaging list : 1* LED Downlight
1* LED Driver

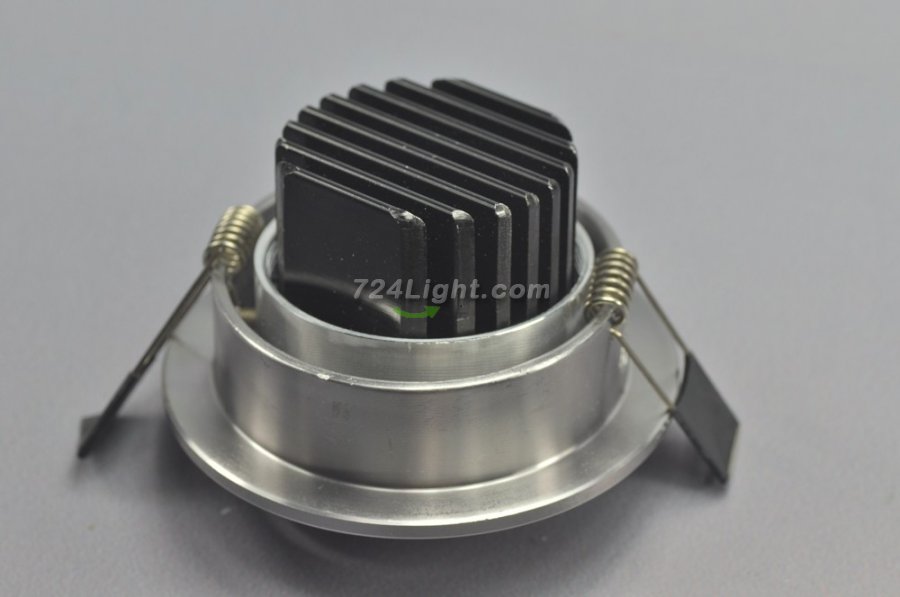

Heat Sink:
    The source mounts directly to heat sink extend aluminum heat sink with even distribution hackle cool board.High thermal conductivity, reasonable of radiation coefficient and convection coefficient to solve thermal management system design of the cooling.This enables the LEDs to consistently run cooler, providing significant boosts to lifetime, efficacy, and color consistency
Optical System:
    The reflector is made of metal material and with surface oxidized, which effectively enhances the lumen output ratio. Also its fish scale shape design on interior surface prevent lighting glare very well, making the light effect quiteeven and free from layering
Applications:
  • Ceiling Lights in Office, Schools, Hallways,Parking Garage, Parking Structure Lighting
  • Lighting in education,government, Warehouse,Coolers, Freezers, Vending Machines
  • Retail Store Display Lighting,Transportation, Railroad, Buses
  • Undercabinet or Cabinet Lights,Light Boxes, Signage Backlighting

Install

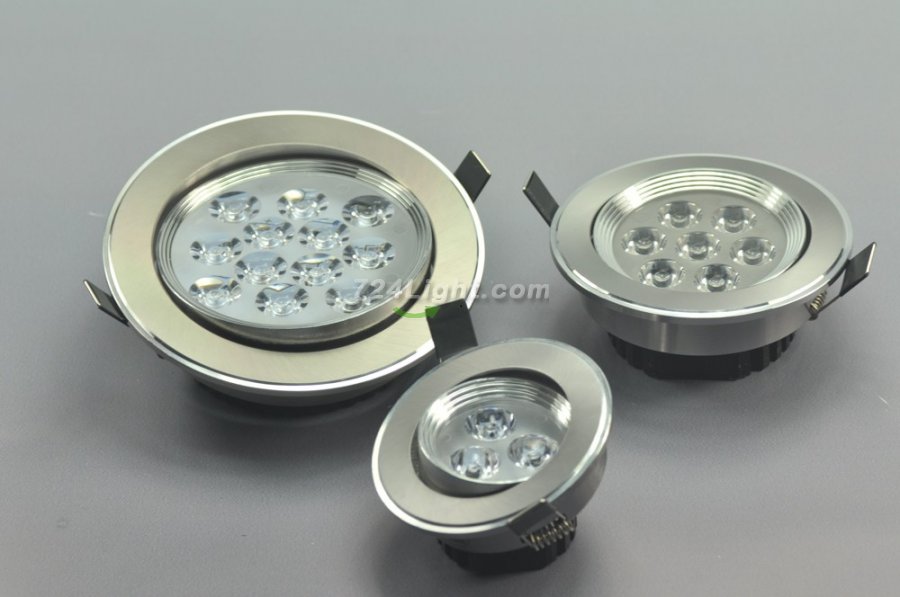

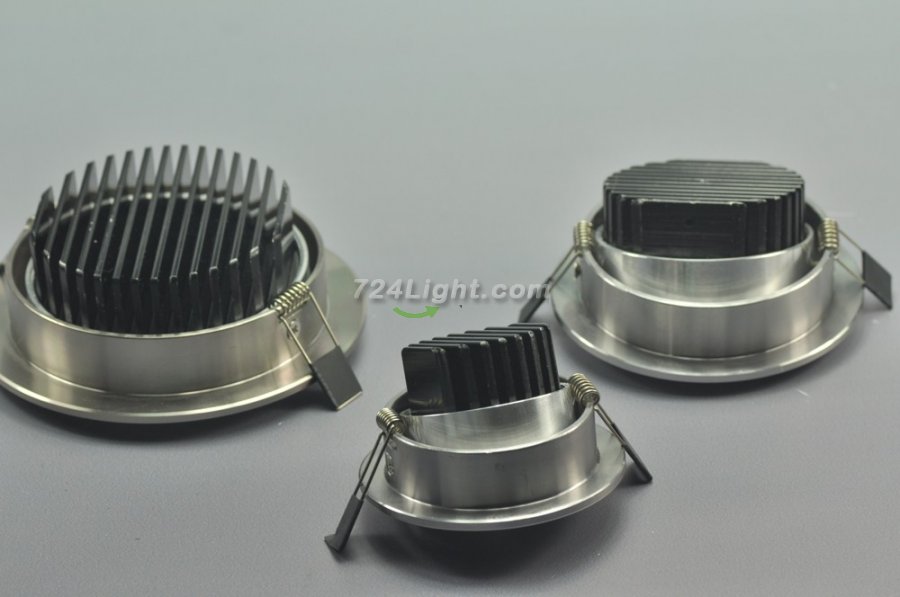

LD-CL-HQ-04 Series Other LED Down Light
Part Number Wattage Color Dimension(W*H) Cut-out LED Weight
3W
Pure wthite/Warm White
Φ86mm*47mm
Φ70.5mm
3*1W LED
0.188kg
5W
Pure wthite/Warm White
Φ109mm*44mm
Φ91mm
5*1W LED
0.305kg
7W
Pure wthite/Warm White
Φ109mm*44mm
Φ91mm
7*1W LED
0.305kg
9W
Pure wthite/Warm White
Φ138mm*45mm
Φ114mm
9*1W LED
0.474kg
12W
Pure wthite/Warm White
Φ138mm*45mm
Φ114mm
12*1W LED
0.474kg

3W CL-HQ-04-3W LED Down Light Cut-out 70.5mm Diameter 3.4" Gray Recessed Dimmable/Non-Dimmable LED Down Light
3W CL-HQ-04-3W LED Down Light Cut-out 70.5mm Diameter 3.4" Gray Recessed Dimmable/Non-Dimmable LED Down Light
3W CL-HQ-04-3W LED Down Light Cut-out 70.5mm Diameter 3.4" Gray Recessed Dimmable/Non-Dimmable LED Down Light
3W CL-HQ-04-3W LED Down Light Cut-out 70.5mm Diameter 3.4" Gray Recessed Dimmable/Non-Dimmable LED Down Light
3W CL-HQ-04-3W LED Down Light Cut-out 70.5mm Diameter 3.4" Gray Recessed Dimmable/Non-Dimmable LED Down Light
3W CL-HQ-04-3W LED Down Light Cut-out 70.5mm Diameter 3.4" Gray Recessed Dimmable/Non-Dimmable LED Down Light
3W CL-HQ-04-3W LED Down Light Cut-out 70.5mm Diameter 3.4" Gray Recessed Dimmable/Non-Dimmable LED Down Light

Shenzhen Guangye Technology Co., LTD was found in 2009 and started the business by the production and foreign sales of led commercial lightings.

It is registerd in Macau China,and the manufacturing factory is located in "Chinese Lighting Capital"---Baoan,ShenZhen.

After 10 years of development,by insisting on the quality, professionality and responsibility, QPLL has become one of the leading brand among the industry.

With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially Europe. and our products has enjoyed great favor in the international market.

We highly welcome customers, business associations and friends from all parts of the world,to contact us and achieve the cooperation of mutual benefits.




Q1. Are you a factory or trading company?

A1.our company is a factory,we provide the OEM&ODM service.

Q2. What is your main product line?

A2.Our company mainly produce commercial and residential lighting,led panel light, led downlight,led ceiling lamp,ect.

Q3: How do you insure the product quality?

A3: We have professional quality inspection team and provide 3 years warranty for each product.

Q4. How about ability for research and development?

A4.We have experienced engineer team. We also collect feedback information from each customer, product improvement and new product development.

Q5: What certificate do you have?

A5: our company has the TUV/CB/EMC/RoHS/ETL/SAA certificate for the product,

and has the ISO9001 for the company's quality management.

Q6:Is there cheap shipping cost to import to our country?

A6: For small order, express will be best.And for bulk order,sea ship way is best but take much time.

For urgent orders, we suggest via air to airport plus our ship partner send to your door.

Q7:Can we get support if we have our own market position?

A7: Please inform us your detailed mind on your market demand, we will discuss and propose helpful suggestion for you,to find the best solution for you.
