  4. 36W LD-DL-CPS-01-36W LED Down Light Cut-out 210mm Diameter 9.4" White Recessed Dimmable/Non-Dimmable LED Down Light

36W LD-DL-CPS-01-36W LED Down Light Cut-out 210mm Diameter 9.4" White Recessed Dimmable/Non-Dimmable LED Down Light

Model: LD-DL-CPS-01-36W
Availability :  In Stock
  • 36W LD-DL-CPS-01-36W LED Down Light Cut-out 210mm Diameter 9.4" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 36W LD-DL-CPS-01-36W LED Down Light Cut-out 210mm Diameter 9.4" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 36W LD-DL-CPS-01-36W LED Down Light Cut-out 210mm Diameter 9.4" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 36W LD-DL-CPS-01-36W LED Down Light Cut-out 210mm Diameter 9.4" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 36W LD-DL-CPS-01-36W LED Down Light Cut-out 210mm Diameter 9.4" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 36W LD-DL-CPS-01-36W LED Down Light Cut-out 210mm Diameter 9.4" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 36W LD-DL-CPS-01-36W LED Down Light Cut-out 210mm Diameter 9.4" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 36W LD-DL-CPS-01-36W LED Down Light Cut-out 210mm Diameter 9.4" White Recessed Dimmable/Non-Dimmable LED Down Light
  • 36W LD-DL-CPS-01-36W LED Down Light Cut-out 210mm Diameter 9.4" White Recessed Dimmable/Non-Dimmable LED Down Light
$73.90
LED Color

Driver and Dimmable

Qty Discounts Off Price
1-4
$73.90		 5-9
$70.21		 10-19
$66.51		 20-49
$62.82		 50-99
$59.12		 100+
$55.43

* Discounts may vary based on options above
QTY :
Part Number Hole Size Size Material Surface Color Brightness Light Source Light Angle CRI Weight
LD-DL-CPS-01-24W 0.474 KG
LD-DL-CPS-01-12W 0.25 KG
LD-DL-CPS-01-9W 0.25 KG
LD-DL-CPS-01-7W 0.12 KG
LD-DL-CPS-01-5W 0.12 KG
LD-DL-CPS-01-3W 0.085 KG

724Light LD-DL-CPS-01 series 36W high lumens of exceptional 75+ CRI light,Lifetime > 50000hr, Pure white and warm white color options,Dimmable/Non-Dimmable options. maximum 85 lumens per watt.50% energy saving, and easy to install, suitable for office, home, indoor, lobby, living room, bedroom, bathroom, kitchen, cabinet, company.(Big order/need customized LED downlight, [email protected])

Product Specifications
Part number: LD-DL-CPS-01-36W
Cut-out: Φ210mm
Surface Diameter: 9.4"(240mm)
Power Consumption: 36W
Operating Voltage:100~277VAC
Body Material: Aluminum+Plastic
Replacement For: 54W CFL
Body Color: White
LED Color: Pure White(6000-6500k),Warm White(2700-3500k)
Lumen: 3060 Lumens
LED Type: Epistar Chip
LED Quantity: 36*1W/PCS
Beam Angle: Approx. 120°
CRI: 75 CR
Operating Temperature: -40~+45 °C
Dimmable: Dimmable(Default)/Non-Dimmable
Power Factor: 0.90
Connector: 2-Pin 10cm Power Line(4")
Lens:Clear
Lifetime: 50000 Hours
Standards And Certifications:CE/FCC/ROHS Compliant
Warranty: 2 Years
Weight : 0.724 kg
Dimensions(D*H): 240mm x 106mm
Packaging list : 1* LED Downlight
1* LED Driver

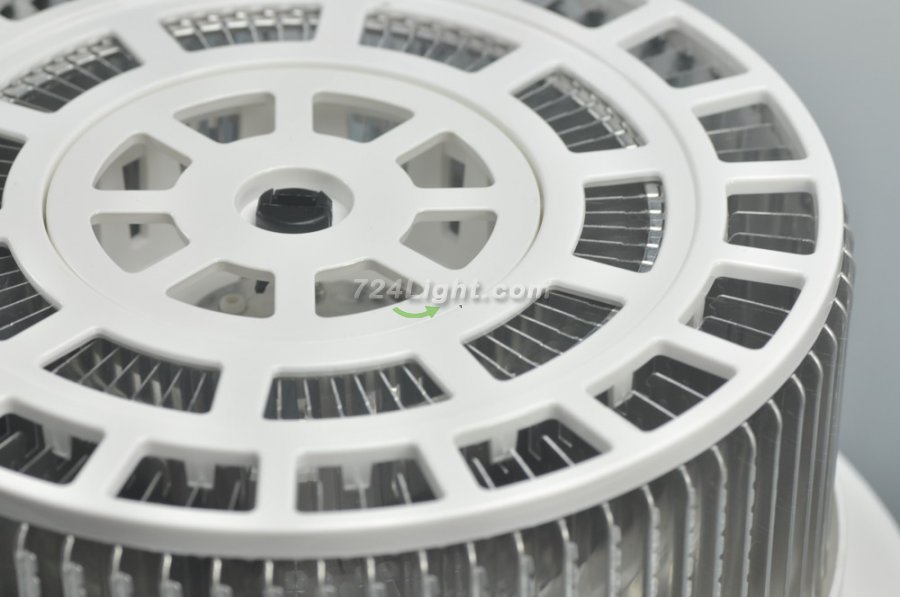

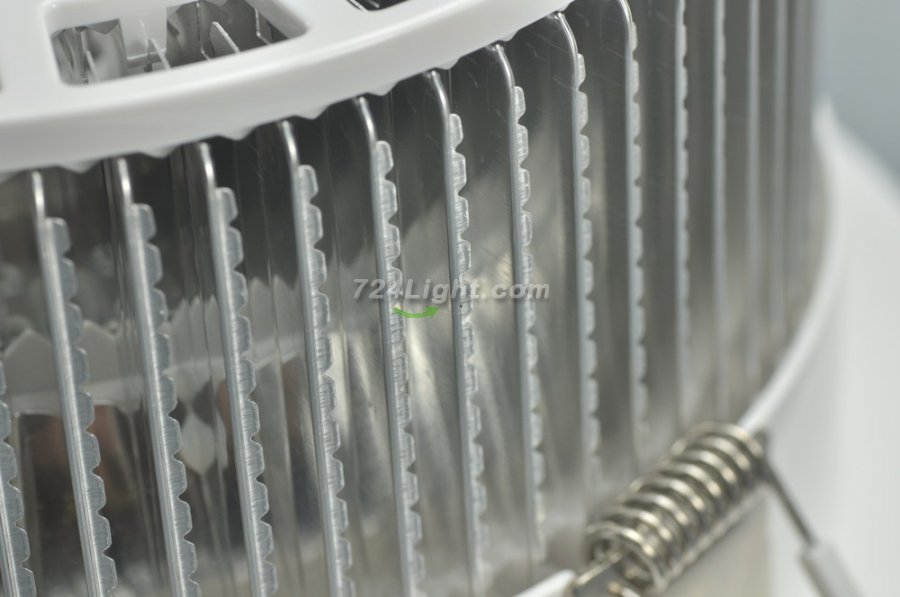

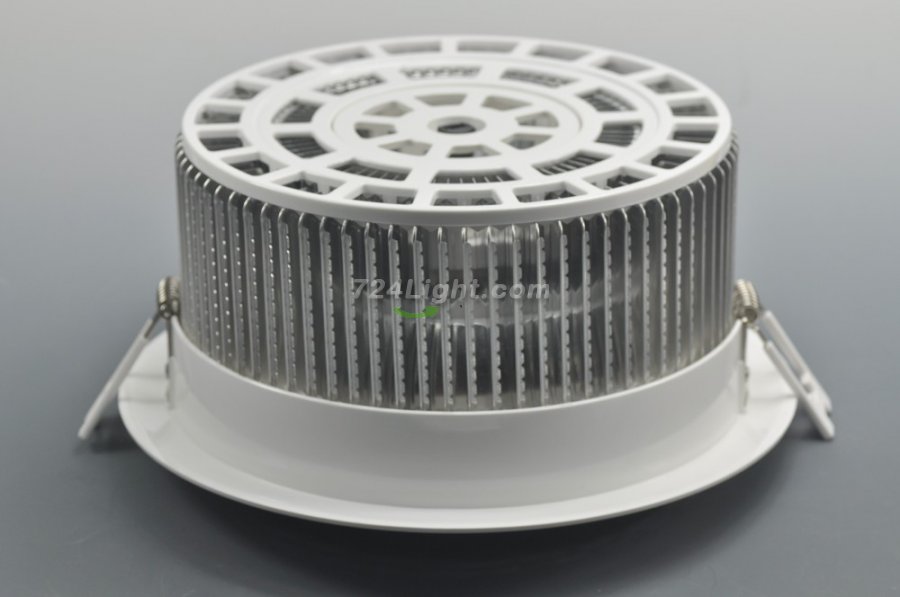

Heat Sink:
    The source mounts directly to heat sink extend aluminum heat sink with even distribution hackle cool board.High thermal conductivity, reasonable of radiation coefficient and convection coefficient to solve thermal management system design of the cooling.This enables the LEDs to consistently run cooler, providing significant boosts to lifetime, efficacy, and color consistency

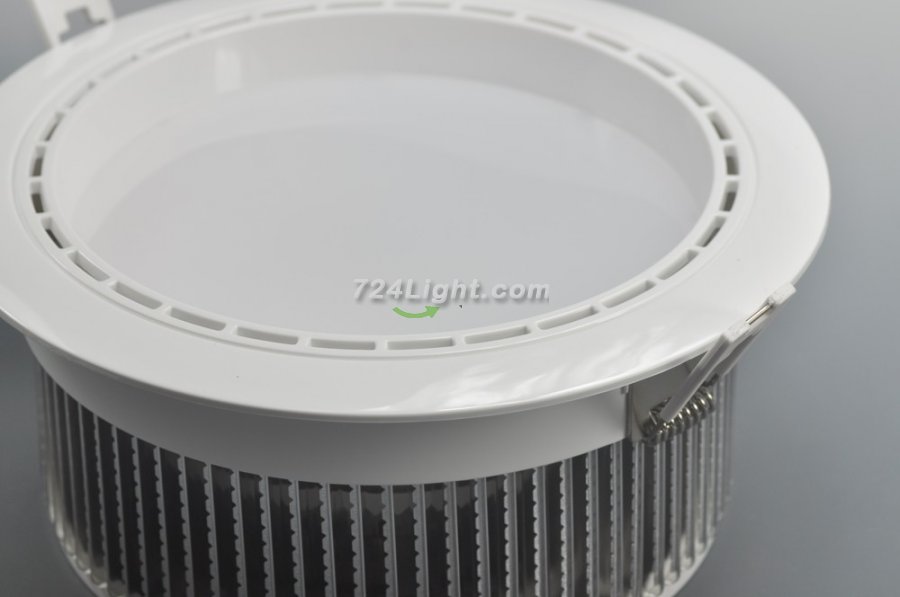

Optical System:
    The reflector is made of metal material and with surface oxidized, which effectively enhances the lumen output ratio. Also its fish scale shape design on interior surface prevent lighting glare very well, making the light effect quiteeven and free from layering
Applications:
  • Ceiling Lights in Office, Schools, Hallways,Parking Garage, Parking Structure Lighting
  • Lighting in education,government, Warehouse,Coolers, Freezers, Vending Machines
  • Retail Store Display Lighting,Transportation, Railroad, Buses
  • Undercabinet or Cabinet Lights,Light Boxes, Signage Backlighting

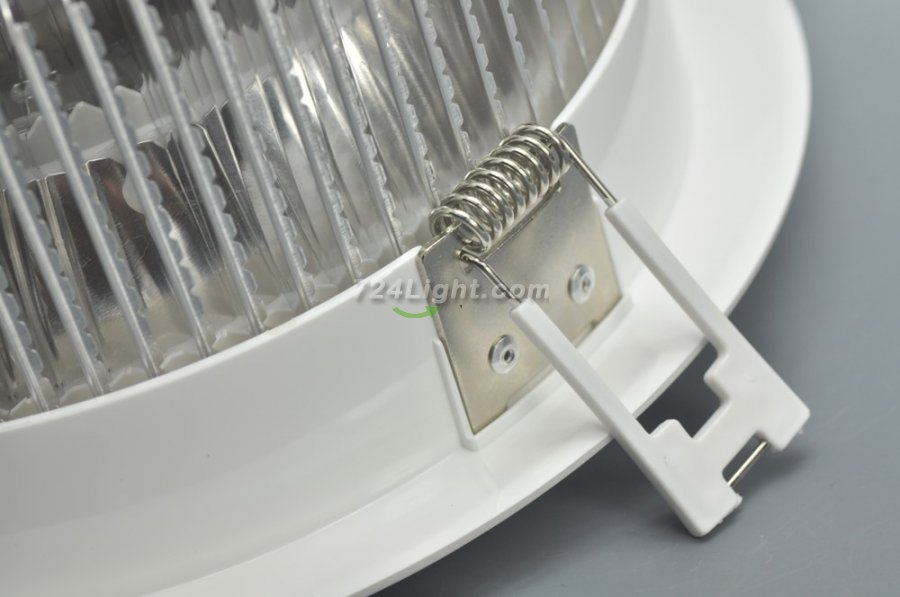

Install

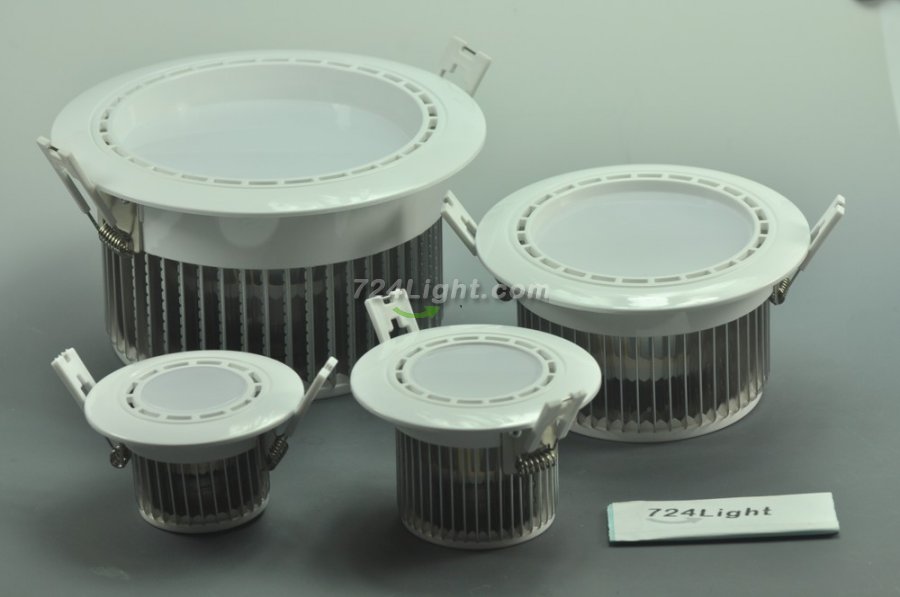

LD-DL-CPS-01 Series LED Down Light
Part Number Wattage Color Dimension(W*H) Cut-out LED Weight
3W
Pure wthite/Warm White
Φ90mm*52.3mm
Φ70mm
3*1W LED
0.085kg
5W
Pure wthite/Warm White
Φ102mm*65.9mm
Φ80mm
5*1W LED
0.12kg
7W
Pure wthite/Warm White
Φ102mm*65.9mm
Φ80mm
7*1W LED
0.12kg
9W
Pure wthite/Warm White
Φ145mm*78mm
Φ125mm
9*1W LED
0.25kg
12W
Pure wthite/Warm White
Φ145mm*78mm
Φ125mm
12*1W LED
0.25kg
24W
Pure wthite/Warm White
Φ195mm*105mm
Φ170mm
24*1W LED
0.474kg
36W
Pure wthite/Warm White
Φ240mm*106mm
Φ210mm
36*1W LED
0.724kg

36W LD-DL-CPS-01-36W LED Down Light Cut-out 210mm Diameter 9.4" White Recessed Dimmable/Non-Dimmable LED Down Light
36W LD-DL-CPS-01-36W LED Down Light Cut-out 210mm Diameter 9.4" White Recessed Dimmable/Non-Dimmable LED Down Light
36W LD-DL-CPS-01-36W LED Down Light Cut-out 210mm Diameter 9.4" White Recessed Dimmable/Non-Dimmable LED Down Light
36W LD-DL-CPS-01-36W LED Down Light Cut-out 210mm Diameter 9.4" White Recessed Dimmable/Non-Dimmable LED Down Light
36W LD-DL-CPS-01-36W LED Down Light Cut-out 210mm Diameter 9.4" White Recessed Dimmable/Non-Dimmable LED Down Light
36W LD-DL-CPS-01-36W LED Down Light Cut-out 210mm Diameter 9.4" White Recessed Dimmable/Non-Dimmable LED Down Light
36W LD-DL-CPS-01-36W LED Down Light Cut-out 210mm Diameter 9.4" White Recessed Dimmable/Non-Dimmable LED Down Light
36W LD-DL-CPS-01-36W LED Down Light Cut-out 210mm Diameter 9.4" White Recessed Dimmable/Non-Dimmable LED Down Light
36W LD-DL-CPS-01-36W LED Down Light Cut-out 210mm Diameter 9.4" White Recessed Dimmable/Non-Dimmable LED Down Light
