2.4Ghz DC12V - 192W DC24V - 384W 2Channels 8A 2.4G LED Color Temperature Adjust Controller With RF Touch Remote

Model: LD-TCM-340-A
Availability :  In Stock
  • 2.4Ghz DC12V - 192W DC24V - 384W 2Channels 8A 2.4G LED Color Temperature Adjust Controller With RF Touch Remote
  • 2.4Ghz DC12V - 192W DC24V - 384W 2Channels 8A 2.4G LED Color Temperature Adjust Controller With RF Touch Remote
  • 2.4Ghz DC12V - 192W DC24V - 384W 2Channels 8A 2.4G LED Color Temperature Adjust Controller With RF Touch Remote
  • 2.4Ghz DC12V - 192W DC24V - 384W 2Channels 8A 2.4G LED Color Temperature Adjust Controller With RF Touch Remote
  • 2.4Ghz DC12V - 192W DC24V - 384W 2Channels 8A 2.4G LED Color Temperature Adjust Controller With RF Touch Remote
$29.99
Qty Discounts Off Price
1-4
$29.99		 5-9
$26.99		 10-19
$25.49		 20-49
$23.99		 50-99
$22.49		 100+
$20.99

QTY :

Summarization

  • 2.4G controller is newly introduced wireless high-power LED controller of our company.
  • It equips with touch remote control, touch remote control adopts high precision capacitance touch control technology, you can select the color you need by one button.
  • It is convenient and easy. Each controller has a globally unique address code, in order to prevent confusion caused by controlling repeated address code.
  • Each controller can be equipped with four remote controls, can achieve multiple controllers synchronization control.
  • It is used for controlling a variety of lamp whose source of light is LED.
  • For instance, point source of light, flexible light strip, wall washer lamp, glass wall light etc.
  • It has many advantages such as convenient to connect, easy to use and others.
  • It can achieve single control and group control, easy for user to use.

    • Technical Parameters

    Controller

    • working temperature: -20-60 degree
    • supply voltage: DC5V-24V
    • output: 2 channels
    • connection mode: common anode
    • external dimension: L120ΧW62ΧH24mm
    • packing size: L185ΧW145ΧH52 mm
    • net weight: 220g
    • gross weight: 314g
    • static power consumption: <1W
    • output current: <8A (each channel)
    • output power: 12V:<192W, 24V:<384W

    Touch Remote Control

    • working temperature: -20-60 degree
    • power supply mode: AAA * 3
    • supply voltage: 1.5V * 3
    • transmission frequency: 2.4Ghz
    • standby power consumption: 0.015mW
    • standby current: 60uA
    • working current: 200uA
    • emission current: 10mA
    • remote distance: about 30m
    • standby time: 6 months
    • remote control weight: 94g

    Total packing included:

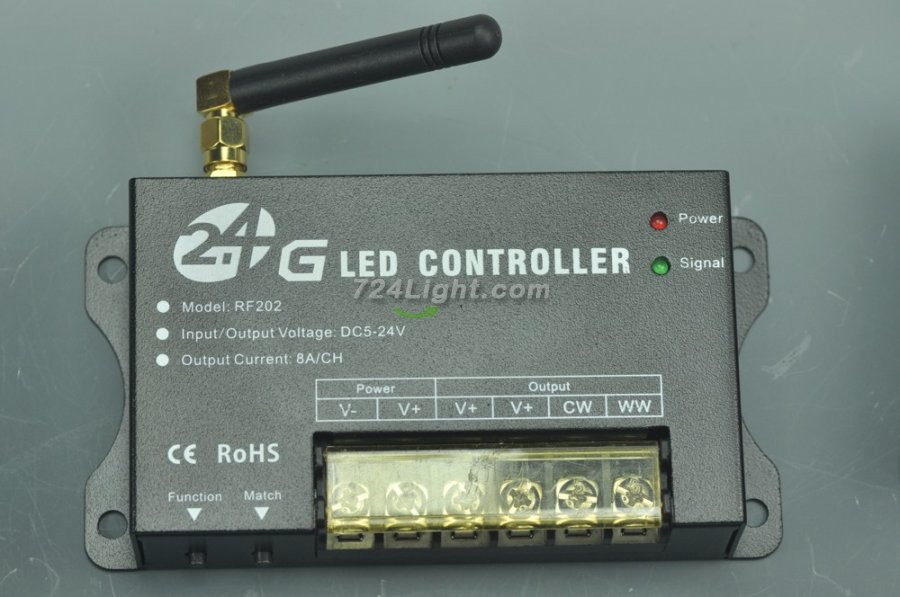

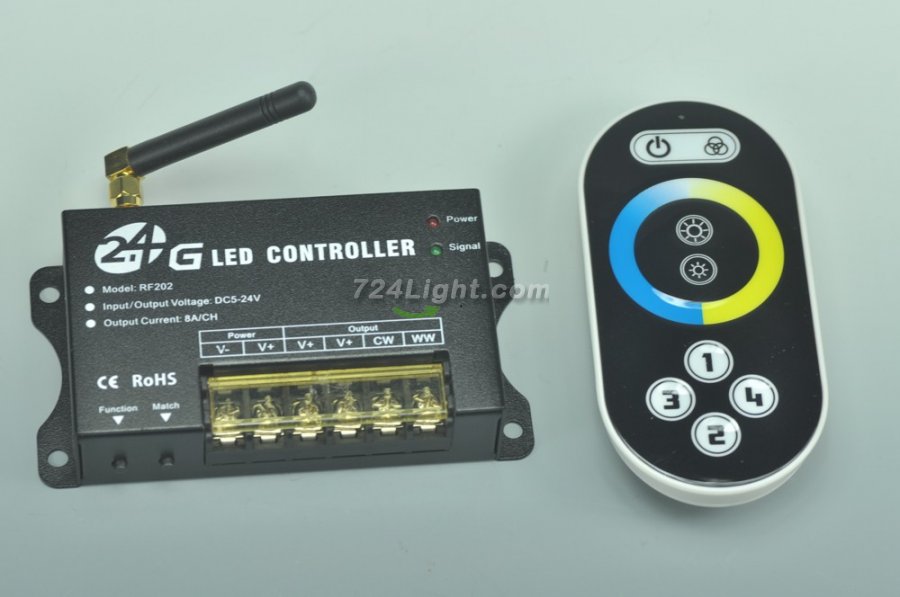

    1*2.4G LED Color Temperature controller

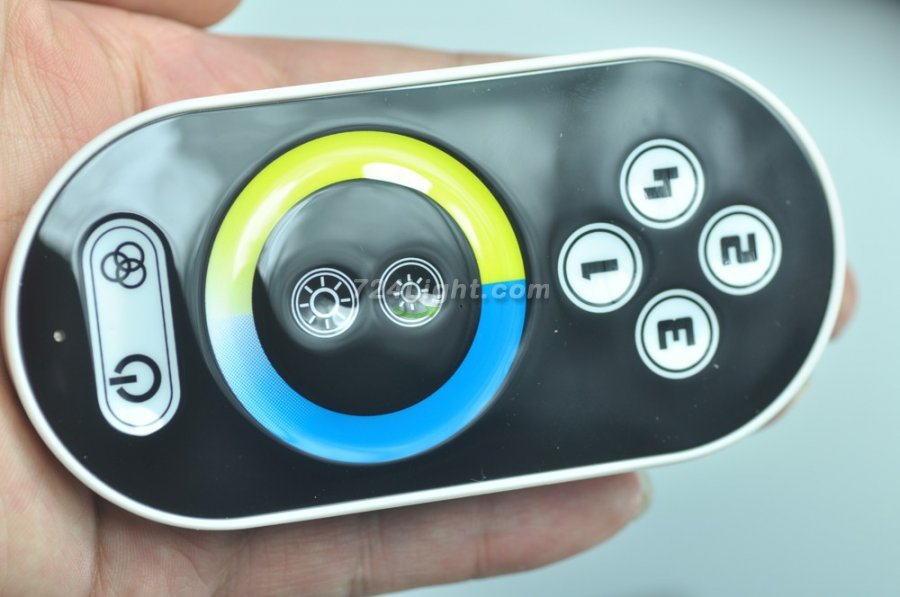

    1*Touch Remote

    2.4Ghz DC12V - 192W DC24V - 384W 2Channels 8A 2.4G LED Color Temperature Adjust Controller With RF Touch Remote
    2.4Ghz DC12V - 192W DC24V - 384W 2Channels 8A 2.4G LED Color Temperature Adjust Controller With RF Touch Remote
    2.4Ghz DC12V - 192W DC24V - 384W 2Channels 8A 2.4G LED Color Temperature Adjust Controller With RF Touch Remote
    2.4Ghz DC12V - 192W DC24V - 384W 2Channels 8A 2.4G LED Color Temperature Adjust Controller With RF Touch Remote
    2.4Ghz DC12V - 192W DC24V - 384W 2Channels 8A 2.4G LED Color Temperature Adjust Controller With RF Touch Remote
