15W LD-DL-HK-04-15W LED Down Light Dimmable 15W(120W Equivalent) Recessed LED Retrofit Downlight

Model: LD-DL-HK-04-15W
Availability :  In Stock
  • 15W LD-DL-HK-04-15W LED Down Light Dimmable 15W(120W Equivalent) Recessed LED Retrofit Downlight
  • 15W LD-DL-HK-04-15W LED Down Light Dimmable 15W(120W Equivalent) Recessed LED Retrofit Downlight
  • 15W LD-DL-HK-04-15W LED Down Light Dimmable 15W(120W Equivalent) Recessed LED Retrofit Downlight
  • 15W LD-DL-HK-04-15W LED Down Light Dimmable 15W(120W Equivalent) Recessed LED Retrofit Downlight
  • 15W LD-DL-HK-04-15W LED Down Light Dimmable 15W(120W Equivalent) Recessed LED Retrofit Downlight
  • 15W LD-DL-HK-04-15W LED Down Light Dimmable 15W(120W Equivalent) Recessed LED Retrofit Downlight
  • 15W LD-DL-HK-04-15W LED Down Light Dimmable 15W(120W Equivalent) Recessed LED Retrofit Downlight
  • 15W LD-DL-HK-04-15W LED Down Light Dimmable 15W(120W Equivalent) Recessed LED Retrofit Downlight
  • 15W LD-DL-HK-04-15W LED Down Light Dimmable 15W(120W Equivalent) Recessed LED Retrofit Downlight
  • 15W LD-DL-HK-04-15W LED Down Light Dimmable 15W(120W Equivalent) Recessed LED Retrofit Downlight
  • 15W LD-DL-HK-04-15W LED Down Light Dimmable 15W(120W Equivalent) Recessed LED Retrofit Downlight
  • 15W LD-DL-HK-04-15W LED Down Light Dimmable 15W(120W Equivalent) Recessed LED Retrofit Downlight
$23.95
LED Color

Mounting Way

Base

Voltage

Qty Discounts Off Price
1-4
$23.95		 5-9
$22.75		 10-19
$21.56		 20-49
$20.36		 50-99
$19.16		 100+
$17.96

* Discounts may vary based on options above
QTY :
Part Number Hole Size Size Material Surface Color Brightness Light Source Light Angle CRI Weight
LD-DL-HK-04-12W 0.7 KG
LD-DL-HK-04-10W 0.7 KG

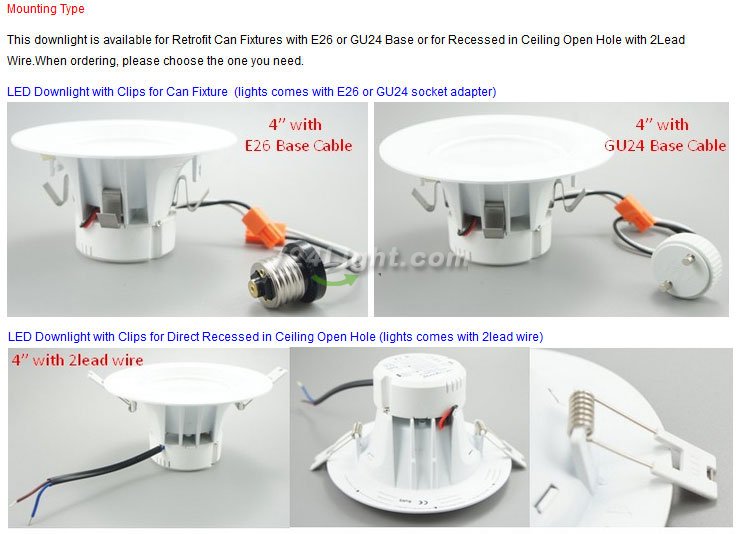

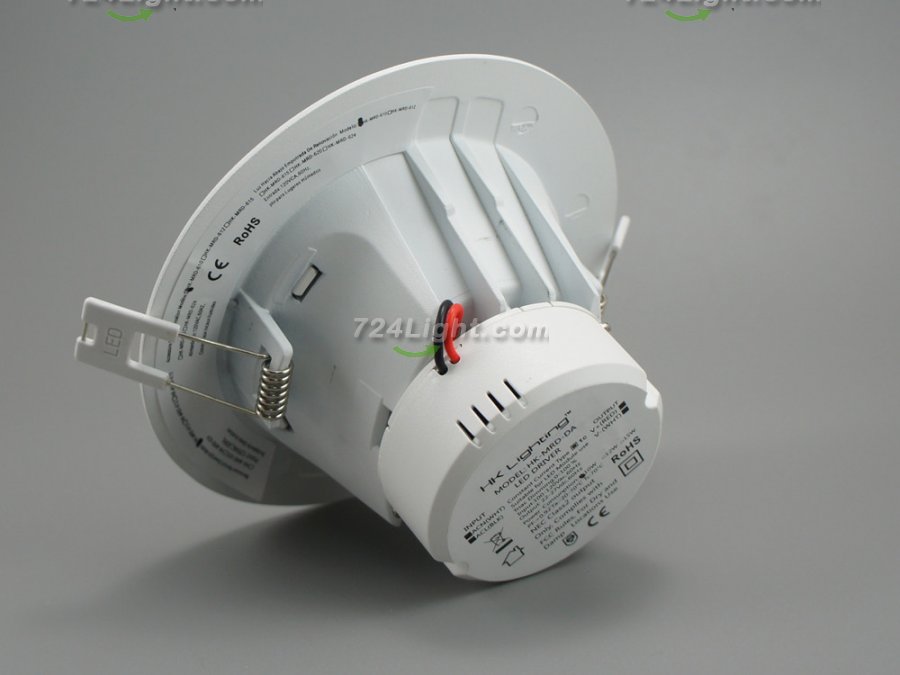

The LD-DL-HK-04 Series Recessed Down light integrates Philips 3030 LED light source and a compact high efficient driver into CFL/Halogen replacement.It is suitable for 120/220V AC input. With E26 Edison Screw Socket adapter or GU24 Socket Adapter, it can use for recessed retrofit down light or new construction down light application. It's compatible with most of the Capri/Halo/Juno and other competitors Cans. With 2 colors lead wire, it can be recessed in Ceiling Open Hole.(Big order/need customized  LED downlight, [email protected])


Product Specifications
Part number: LD-DL-HK-04-15W
Cut-out: Φ4inch/Φ95-140mm
Surface Diameter: 5.5"(140mm)
Power Consumption: 12W
Operating Voltage:200-240VAC/90-130VAC
Body Material: Aluminum
Replacement For: 120W Equivalent
Body Color:White
LED Color:Pure White(6000-6500k),Warm White(2700-3500k),Nature White(3800-4200k)
Lumen: 1300 Lumens
LED Type: Philips 3030 LED
LED Quantity: 15*1W/PCS
Beam Angle: Approx. 90°
CRI: 80 CR
Operating Temperature: -40~+45 °C
Dimmable: Yes
Power Factor: 0.90

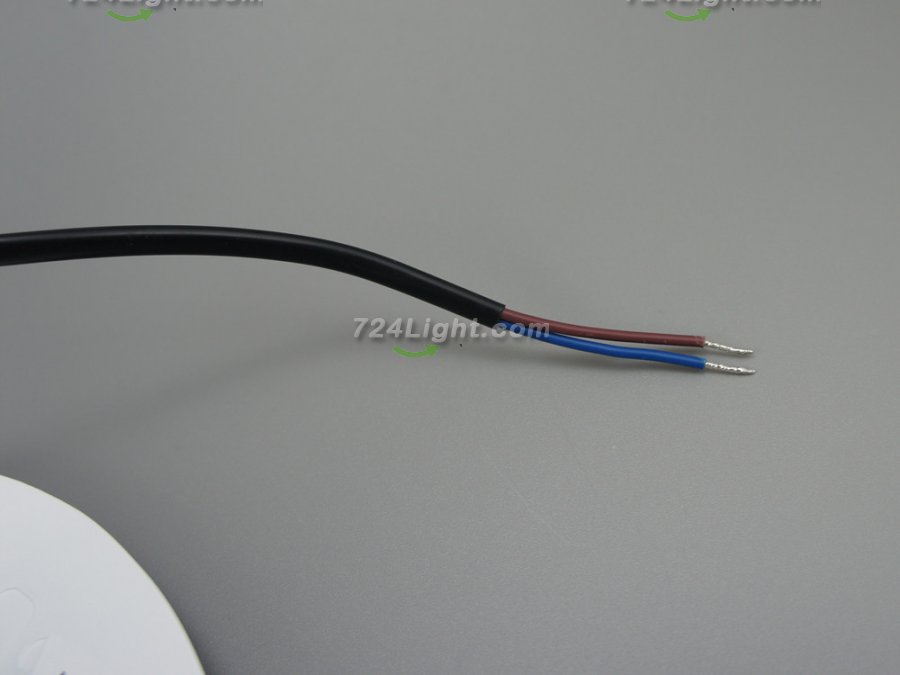

Connector:2-Pin 10cm Power Line(4")
Lens:Clear
Lifetime: 50000 Hours
Standards And Certifications:CE/FCC/ROHS Compliant
Warranty: 2 Years
Weight : 0.7 kg

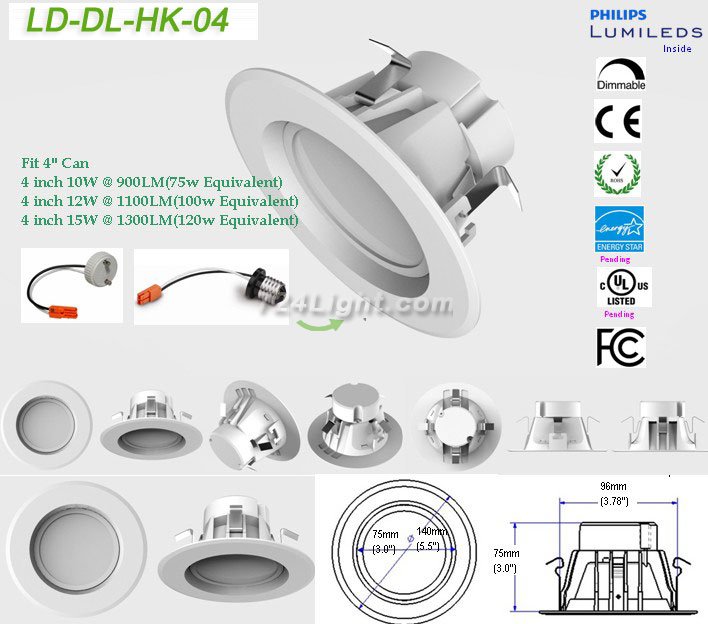

Dimensions(D*H): 140mm x 75mm
Packaging list : 1* LED Downlight

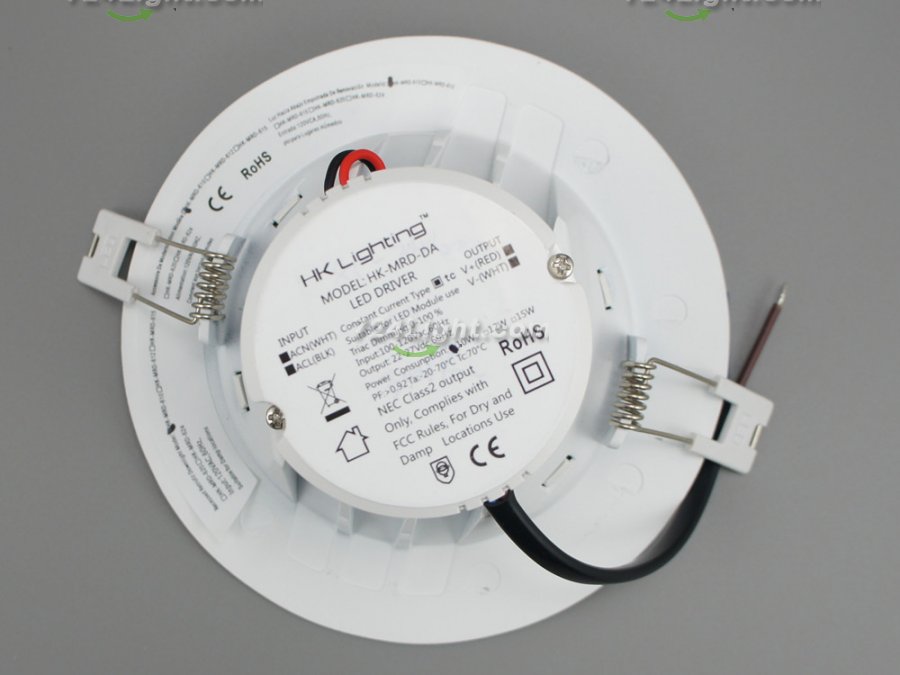

1* LED Driver
Heat Sink:

    The source mounts directly to heat sink extend aluminum heat sink with  even distribution hackle cool board.High thermal conductivity, reasonable of  radiation coefficient and convection coefficient to solve thermal management  system design of the cooling.This enables the LEDs to consistently run  cooler, providing significant boosts to lifetime, efficacy, and color consistency
Optical System:

    The reflector is made of metal material and with surface oxidized, which effectively enhances the lumen output ratio. Also its fish scale shape design on interior  surface prevent lighting glare very well, making the light effect quiteeven  and free from layering
Applications:
  • Ceiling Lights in Office, Schools, Hallways,Parking Garage, Parking Structure Lighting
  • Lighting in education,government, Warehouse,Coolers, Freezers, Vending Machines
  • Retail Store Display Lighting,Transportation, Railroad, Buses
  • Undercabinet or Cabinet Lights,Light Boxes, Signage Backlighting

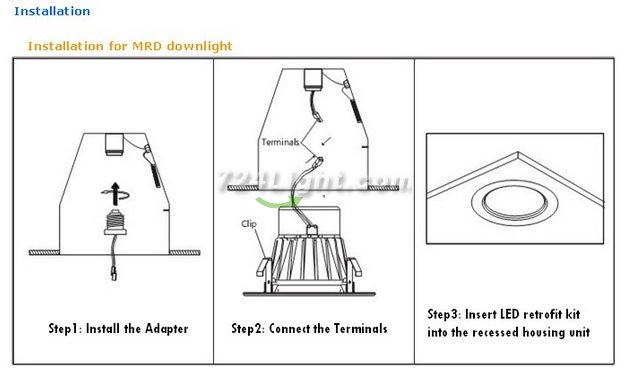

Install



LD-DL-HK-04 Series LED Down Light
Part Number Wattage Color Lumen Replacement For LED Weight
10W
Pure wthite/Warm White/Nature White
900 Lumens
75W Equivalent
Philips 3030 LED
0.7kg
12W
Pure wthite/Warm White/Nature White
1100 Lumens
100W Equivalent
Philips 3030 LED
0.7kg
15W
Pure wthite/Warm White/Nature White
1300 Lumens
120W Equivalent
Philips 3030 LED
0.7kg
