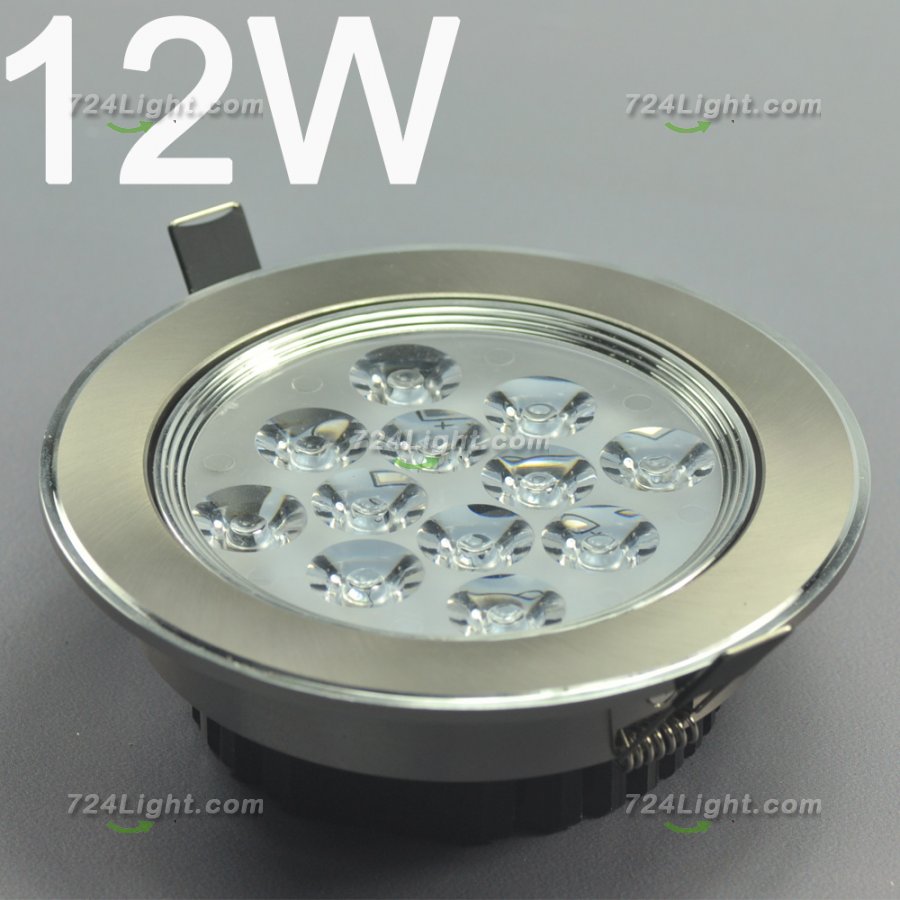

12W CL-HQ-04-12W LED Spotlight Cut-out 114mm Diameter 5.4" Gray Recessed LED Dimmable/Non-Dimmable LED Ceiling light

Model: LD-CL-HQ-04-12W
Availability :  In Stock
  • 12W CL-HQ-04-12W LED Spotlight Cut-out 114mm Diameter 5.4" Gray Recessed LED Dimmable/Non-Dimmable LED Ceiling light
  • 12W CL-HQ-04-12W LED Spotlight Cut-out 114mm Diameter 5.4" Gray Recessed LED Dimmable/Non-Dimmable LED Ceiling light
  • 12W CL-HQ-04-12W LED Spotlight Cut-out 114mm Diameter 5.4" Gray Recessed LED Dimmable/Non-Dimmable LED Ceiling light
  • 12W CL-HQ-04-12W LED Spotlight Cut-out 114mm Diameter 5.4" Gray Recessed LED Dimmable/Non-Dimmable LED Ceiling light
  • 12W CL-HQ-04-12W LED Spotlight Cut-out 114mm Diameter 5.4" Gray Recessed LED Dimmable/Non-Dimmable LED Ceiling light
  • 12W CL-HQ-04-12W LED Spotlight Cut-out 114mm Diameter 5.4" Gray Recessed LED Dimmable/Non-Dimmable LED Ceiling light
  • 12W CL-HQ-04-12W LED Spotlight Cut-out 114mm Diameter 5.4" Gray Recessed LED Dimmable/Non-Dimmable LED Ceiling light
  • 12W CL-HQ-04-12W LED Spotlight Cut-out 114mm Diameter 5.4" Gray Recessed LED Dimmable/Non-Dimmable LED Ceiling light
  • 12W CL-HQ-04-12W LED Spotlight Cut-out 114mm Diameter 5.4" Gray Recessed LED Dimmable/Non-Dimmable LED Ceiling light
$19.19
LED Color

Driver and Dimmable

Qty Discounts Off Price
1-4
$19.19		 5-9
$18.23		 10-19
$17.27		 20-49
$16.31		 50-99
$15.35		 100+
$14.39

* Discounts may vary based on options above
QTY :
Part Number Hole Size Size Material Surface Color Brightness Light Source Light Angle CRI Weight
LD-CL-HQ-04-9W 0.474 KG
LD-CL-HQ-04-7W 0.305 KG
LD-CL-HQ-04-5W 0.305 KG
LD-CL-HQ-04-3W 0.188 KG

724Light LD-CL-HQ-04 series 12W high lumens of exceptional 75+ CRI light,Lifetime > 50000hr, Pure white and warm white color options,Dimmable/Non-Dimmable options. maximum 85 lumens per watt.50% energy saving, and easy to install, suitable for office, home, indoor, lobby, living room, bedroom, bathroom, kitchen, cabinet, company.(Big order/need customized LED downlight, [email protected])

Product Specifications
Part number: LD-CL-HQ-04-12W
Cut-out: Φ114mm
Surface Diameter: 5.4"(138mm)
Power Consumption: 12W
Operating Voltage:100~277VAC
Body Material: Aluminum
Replacement For: 18W CFL
Body Color: Gray
LED Color: Pure White(6000-6500k),Warm White(2700-3500k)
Lumen: 1020 Lumens
LED Type: Epistar Chip
LED Quantity: 12*1W/PCS
Beam Angle: Approx. 60°
CRI: 75 CR
Operating Temperature: -40~+45 °C
Dimmable: Dimmable(Default)/Non-Dimmable
Power Factor: 0.90
Connector: 2-Pin 10cm Power Line(4")
Lens:Clear
Lifetime: 50000 Hours
Standards And Certifications:CE/FCC/ROHS Compliant
Warranty: 2 Years
Weight : 0.474 kg
Dimensions(D*H): 114mm x 45mm
Packaging list : 1* LED Downlight
1* LED Driver

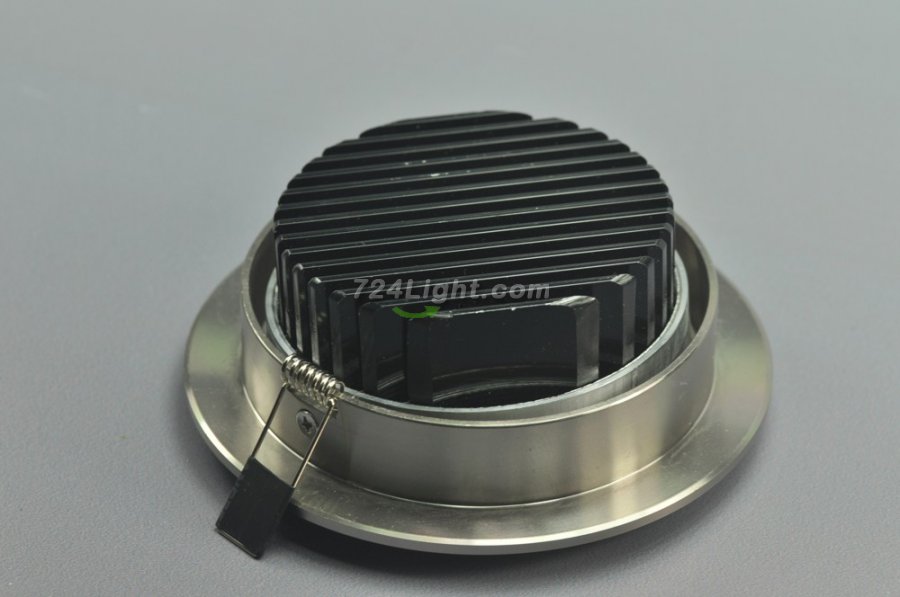

Heat Sink:
    The source mounts directly to heat sink extend aluminum heat sink with even distribution hackle cool board.High thermal conductivity, reasonable of radiation coefficient and convection coefficient to solve thermal management system design of the cooling.This enables the LEDs to consistently run cooler, providing significant boosts to lifetime, efficacy, and color consistency

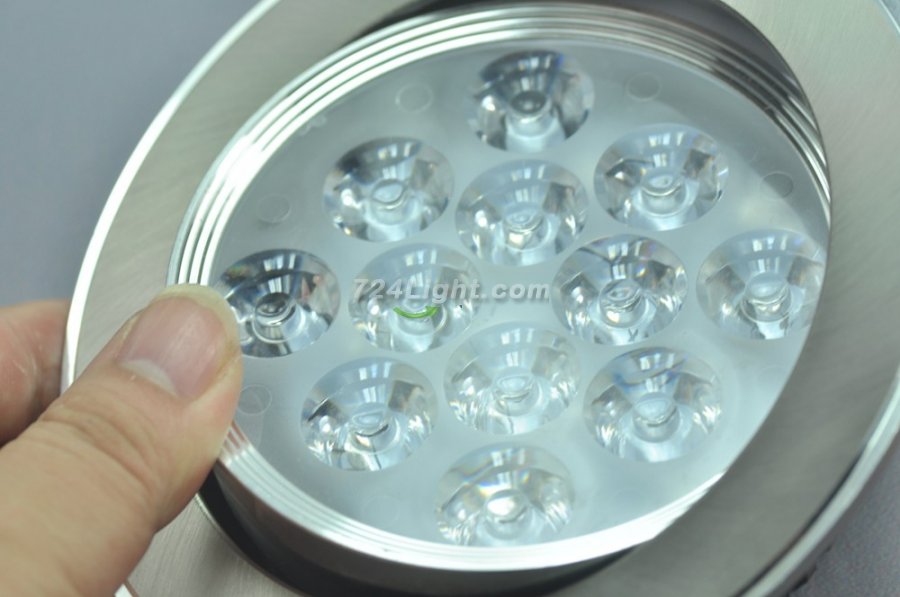

Optical System:
    The reflector is made of metal material and with surface oxidized, which effectively enhances the lumen output ratio. Also its fish scale shape design on interior surface prevent lighting glare very well, making the light effect quiteeven and free from layering
Applications:
  • Ceiling Lights in Office, Schools, Hallways,Parking Garage, Parking Structure Lighting
  • Lighting in education,government, Warehouse,Coolers, Freezers, Vending Machines
  • Retail Store Display Lighting,Transportation, Railroad, Buses
  • Undercabinet or Cabinet Lights,Light Boxes, Signage Backlighting

Install

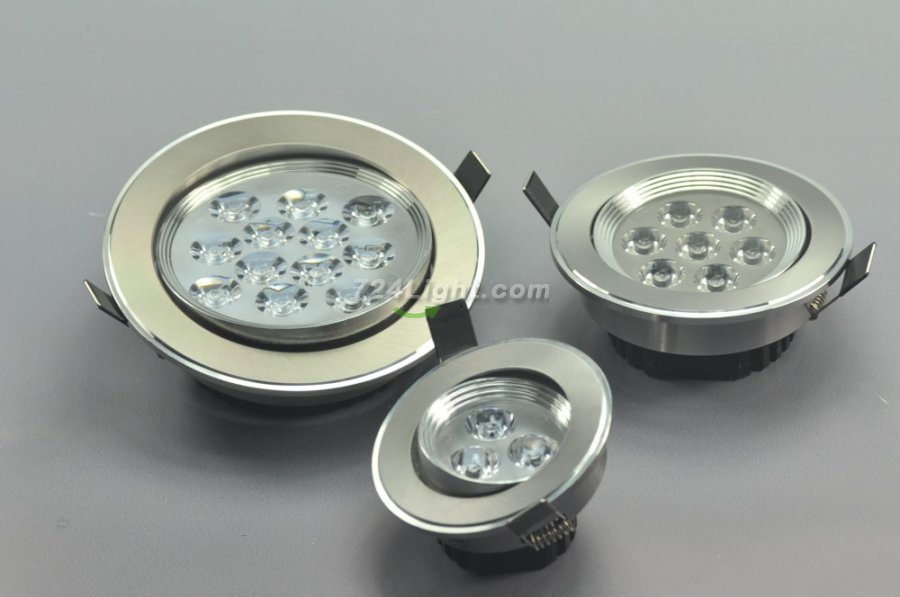

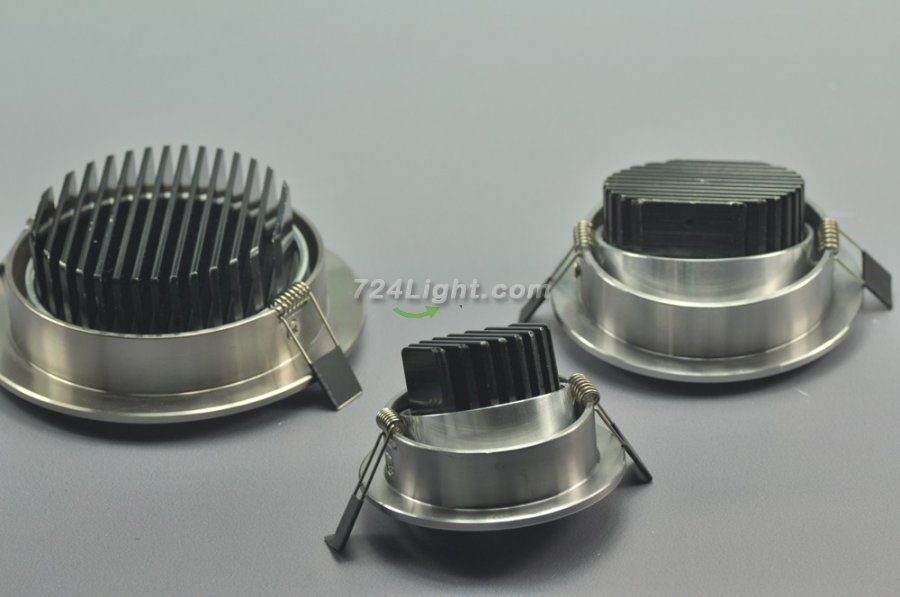

LD-CL-HQ-04 Series Other LED Down Light
Part Number Wattage Color Dimension(W*H) Cut-out LED Weight
3W
Pure wthite/Warm White
Φ86mm*47mm
Φ70.5mm
3*1W LED
0.188kg
5W
Pure wthite/Warm White
Φ109mm*44mm
Φ91mm
5*1W LED
0.305kg
7W
Pure wthite/Warm White
Φ109mm*44mm
Φ91mm
7*1W LED
0.305kg
9W
Pure wthite/Warm White
Φ138mm*45mm
Φ114mm
9*1W LED
0.474kg
12W
Pure wthite/Warm White
Φ138mm*45mm
Φ114mm
12*1W LED
0.474kg
