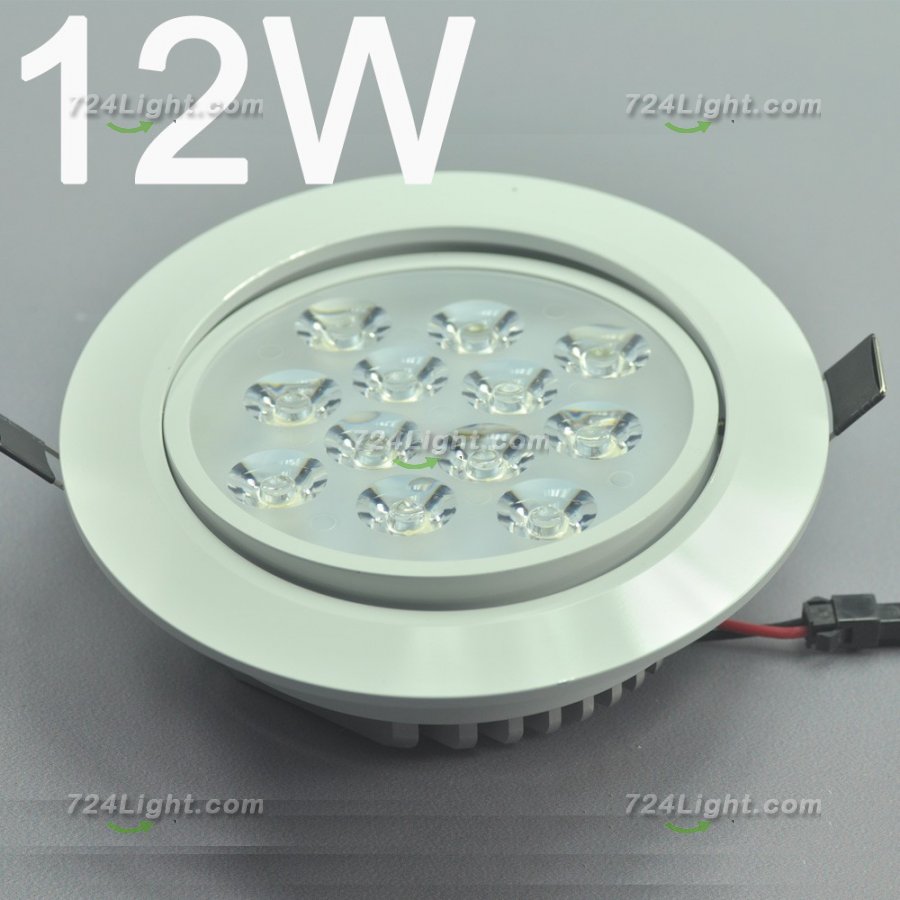

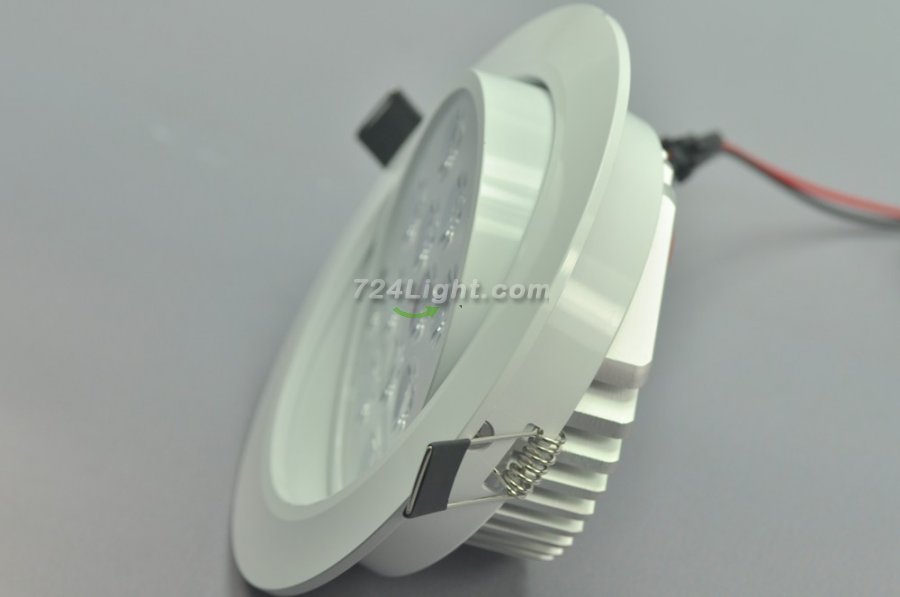

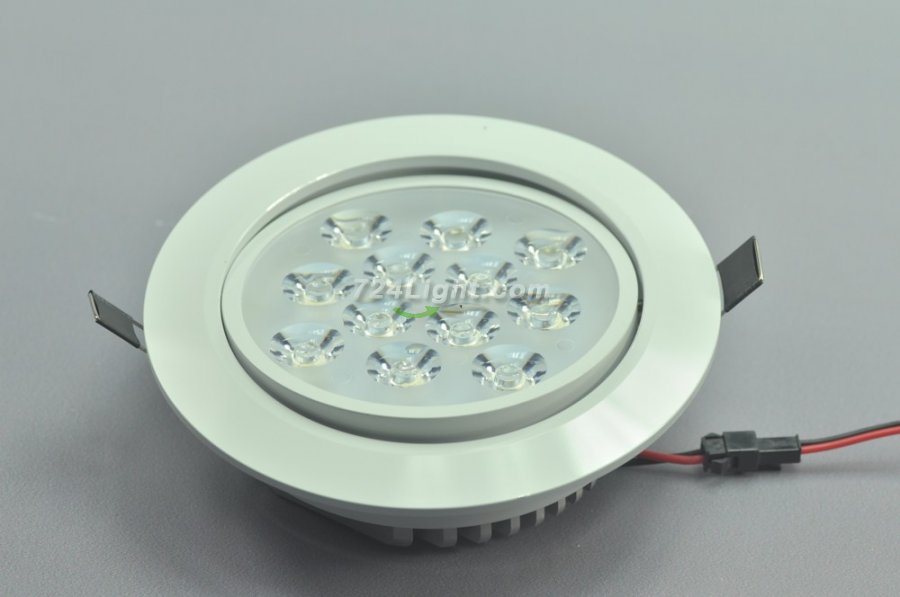

12W CL-HQ-02-12W LED Spotlight Cut-out 112mm Diameter 5.5" White Recessed LED Dimmable/Non-Dimmable LED Ceiling light

Model: LD-CL-HQ-02-12W
Availability :  In Stock
  • 12W CL-HQ-02-12W LED Spotlight Cut-out 112mm Diameter 5.5" White Recessed LED Dimmable/Non-Dimmable LED Ceiling light
  • 12W CL-HQ-02-12W LED Spotlight Cut-out 112mm Diameter 5.5" White Recessed LED Dimmable/Non-Dimmable LED Ceiling light
  • 12W CL-HQ-02-12W LED Spotlight Cut-out 112mm Diameter 5.5" White Recessed LED Dimmable/Non-Dimmable LED Ceiling light
  • 12W CL-HQ-02-12W LED Spotlight Cut-out 112mm Diameter 5.5" White Recessed LED Dimmable/Non-Dimmable LED Ceiling light
  • 12W CL-HQ-02-12W LED Spotlight Cut-out 112mm Diameter 5.5" White Recessed LED Dimmable/Non-Dimmable LED Ceiling light
  • 12W CL-HQ-02-12W LED Spotlight Cut-out 112mm Diameter 5.5" White Recessed LED Dimmable/Non-Dimmable LED Ceiling light
  • 12W CL-HQ-02-12W LED Spotlight Cut-out 112mm Diameter 5.5" White Recessed LED Dimmable/Non-Dimmable LED Ceiling light
$22.80
LED Color

Driver and Dimmable

Qty Discounts Off Price
1-4
$22.80		 5-9
$21.66		 10-19
$20.52		 20-49
$19.38		 50-99
$18.24		 100+
$17.10

* Discounts may vary based on options above
QTY :
Part Number Hole Size Size Material Surface Color Brightness Light Source Light Angle CRI Weight
LD-CL-HQ-02-9W 0.514 KG
LD-CL-HQ-02-7W 0.344 KG
LD-CL-HQ-02-5W 0.336 KG
LD-CL-HQ-02-3W 0.191 KG

724Light LD-CL-HQ-02 series 12W high lumens of exceptional 75+ CRI light,Lifetime > 50000hr, Pure white and warm white color options,Dimmable/Non-Dimmable options. maximum 85 lumens per watt.50% energy saving, and easy to install, suitable for office, home, indoor, lobby, living room, bedroom, bathroom, kitchen, cabinet, company.(Big order/need customized LED downlight, [email protected])

Product Specifications
Part number: LD-CL-HQ-02-12W
Cut-out: Φ112mm
Surface Diameter: 5.5"(138.5mm)
Power Consumption: 12W
Operating Voltage:100~277VAC
Body Material: Aluminum
Replacement For: 18W CFL
Body Color: White
LED Color: Pure White(6000-6500k),Warm White(2700-3500k)
Lumen: 1020 Lumens
LED Type: Epistar Chip
LED Quantity: 12*1W/PCS
Beam Angle: Approx. 60°
CRI: 75 CR
Operating Temperature: -40~+45 °C
Dimmable: Dimmable(Default)/Non-Dimmable
Power Factor: 0.90
Connector: 2-Pin 10cm Power Line(4")
Lens:Clear
Lifetime: 50000 Hours
Standards And Certifications:CE/FCC/ROHS Compliant
Warranty: 2 Years
Weight : 0.520 kg
Dimensions(D*H): 138.5mm x 43mm
Packaging list : 1* LED Downlight
1* LED Driver

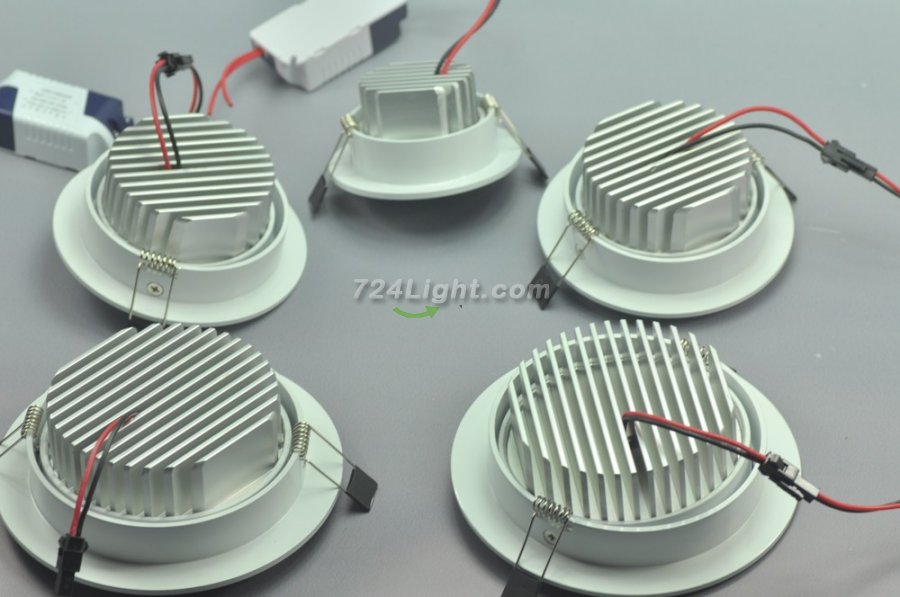

Heat Sink:
    The source mounts directly to heat sink extend aluminum heat sink with even distribution hackle cool board.High thermal conductivity, reasonable of radiation coefficient and convection coefficient to solve thermal management system design of the cooling.This enables the LEDs to consistently run cooler, providing significant boosts to lifetime, efficacy, and color consistency
Optical System:
    The reflector is made of metal material and with surface oxidized, which effectively enhances the lumen output ratio. Also its fish scale shape design on interior surface prevent lighting glare very well, making the light effect quiteeven and free from layering
Applications:
  • Ceiling Lights in Office, Schools, Hallways,Parking Garage, Parking Structure Lighting
  • Lighting in education,government, Warehouse,Coolers, Freezers, Vending Machines
  • Retail Store Display Lighting,Transportation, Railroad, Buses
  • Undercabinet or Cabinet Lights,Light Boxes, Signage Backlighting

Install

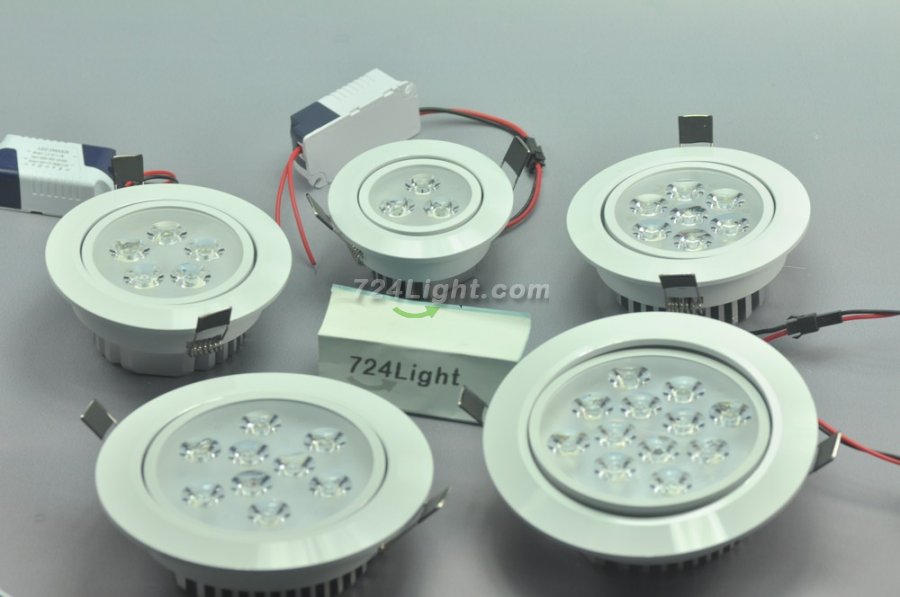

LD-CL-HQ-02 Series Other LED Down Light
Part Number Wattage Color Dimension(W*H) Cut-out LED Weight
3W
Pure wthite/Warm White
Φ84.5mm*43mm
Φ68.5mm
3*1W LED
0.191kg
5W
Pure wthite/Warm White
Φ109mm*44.5mm
Φ90mm
5*1W LED
0.336kg
7W
Pure wthite/Warm White
Φ109mm*44mm
Φ90mm
7*1W LED
0.344kg
9W
Pure wthite/Warm White
Φ139mm*43mm
Φ113mm
9*1W LED
0.514kg
12W
Pure wthite/Warm White
Φ138.5mm*43mm
Φ112mm
12*1W LED
0.520kg
