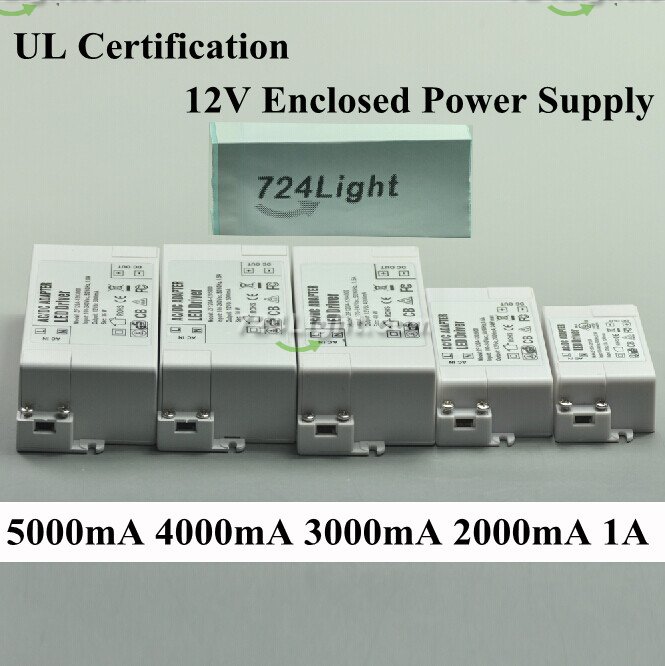

12W 24W 36W 48W 60W LED Power Supply 12V 1A 2A 3A 4A 5A LED Power Supplies UL Certification For LED Strips LED Light

Model: LED-PS-40521-001
Availability :  In Stock
  • 12W 24W 36W 48W 60W LED Power Supply 12V 1A 2A 3A 4A 5A LED Power Supplies UL Certification For LED Strips LED Light
  • 12W 24W 36W 48W 60W LED Power Supply 12V 1A 2A 3A 4A 5A LED Power Supplies UL Certification For LED Strips LED Light
  • 12W 24W 36W 48W 60W LED Power Supply 12V 1A 2A 3A 4A 5A LED Power Supplies UL Certification For LED Strips LED Light
  • 12W 24W 36W 48W 60W LED Power Supply 12V 1A 2A 3A 4A 5A LED Power Supplies UL Certification For LED Strips LED Light
  • 12W 24W 36W 48W 60W LED Power Supply 12V 1A 2A 3A 4A 5A LED Power Supplies UL Certification For LED Strips LED Light
  • 12W 24W 36W 48W 60W LED Power Supply 12V 1A 2A 3A 4A 5A LED Power Supplies UL Certification For LED Strips LED Light
$8.51
Type

Qty Discounts Off Price
1
$8.51		 2-4
$8.08		 5-14
$7.66		 15-19
$7.23		 20-49
$6.81		 50+
$6.38

* Discounts may vary based on options above
QTY :

Model LED-PS-40521-001
Output Dc Voltage 12V
Rated Current 1A  2A  3A  4A  5A
Rated Power 12W 24W 36W 48W 60W
Ripple&Noise 180mvp-p
Voltage ADJ.Range 10.8-13.2V
Voltage Tolerance ±1.0%
Line Regulation ±0.5%
Load Regulation ±1.0%
Setup,Rise Time 300ms,50ms/230VAC 800ms,50ms/115Vac at full load
Hold Up Time(typ.) 90ms/230vac 12ms/115vac At Full Load
input Voltage Range 85-264VAC 120-370VDC
Frequency Range 47-63Hz
Efficiency(typ.) 74%
Ac Current(typ.) 5.6A/115V  2.8A/230Vac
Inrush current Cold Start  25A/115Vac 50A/230V
leakage Current 3.5mA/240VAC
Protection Overload 105-150% rated output power
protection type:hiccup mode,recovers automatically after fault condition
115-135% rated output voltage
Over Voltage 115-135% rated output voltage
Protection Type:hiccup mode,recovers automatically after fault condition
environment Working Temp  -10~+60°c
Working Humidity 20-90%rh non-condesing
Storage Temp,Humidity  -20~+85°c,10-95%rh
Temp.Coefficient ±0.03%°c(0-50°c)
Vibration 10-500hz
Safety&EMC safety standard CE RoHS
withstand voltage I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
Isolation Resistance I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH
EMI Conduction&radiation Design refer to GB4943,UL60950,EN60950
EMC Standard Design refer to GB9254,EN55022 Class A




Model
 Power Size(L*W*H mm) Voltage -Max Current Weight(kg) Support Strip Light

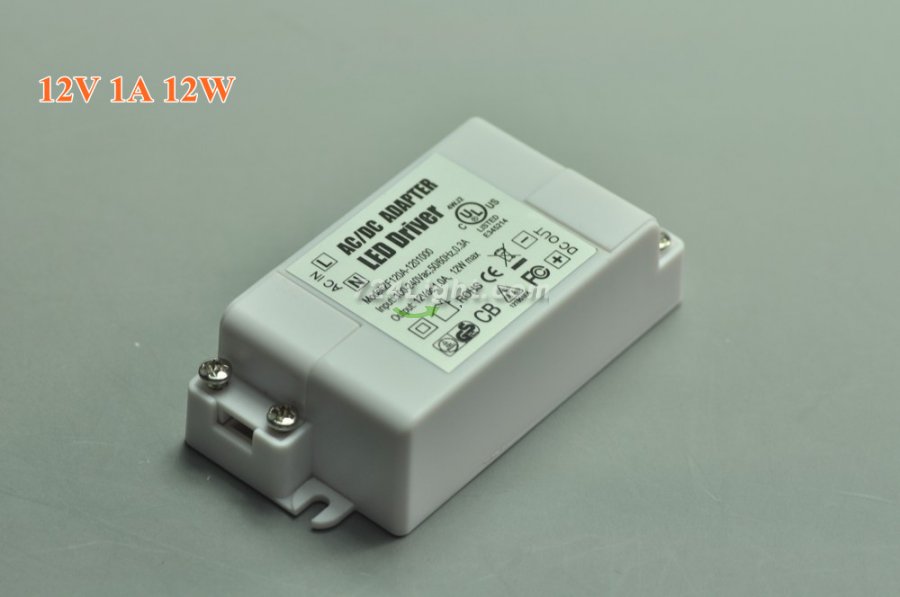

12W 76*36*23 12V-1A
 0.047 <= 1 M(3.28Ft)

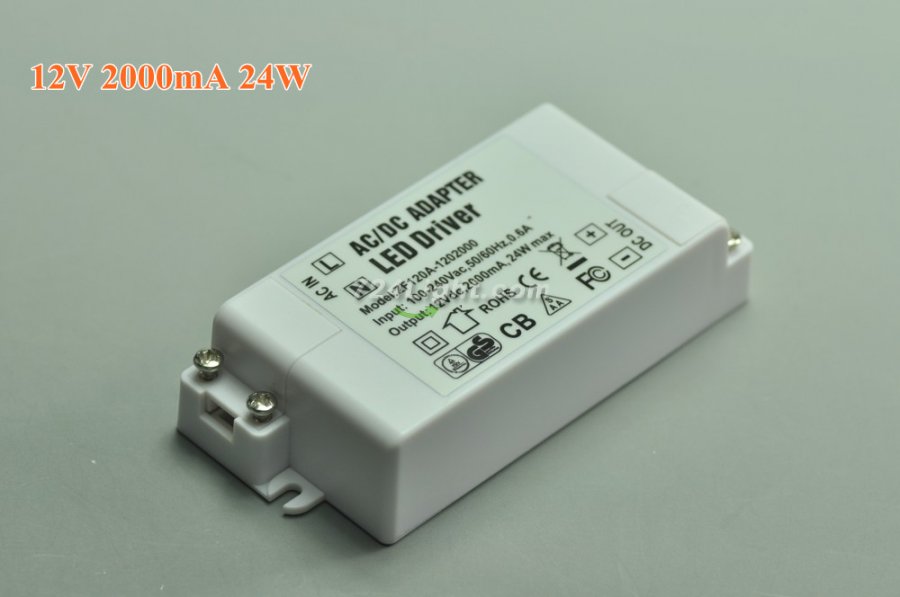

24W 95*44*23 12V-2000mA 0.072 <= 2M(6.56Ft)

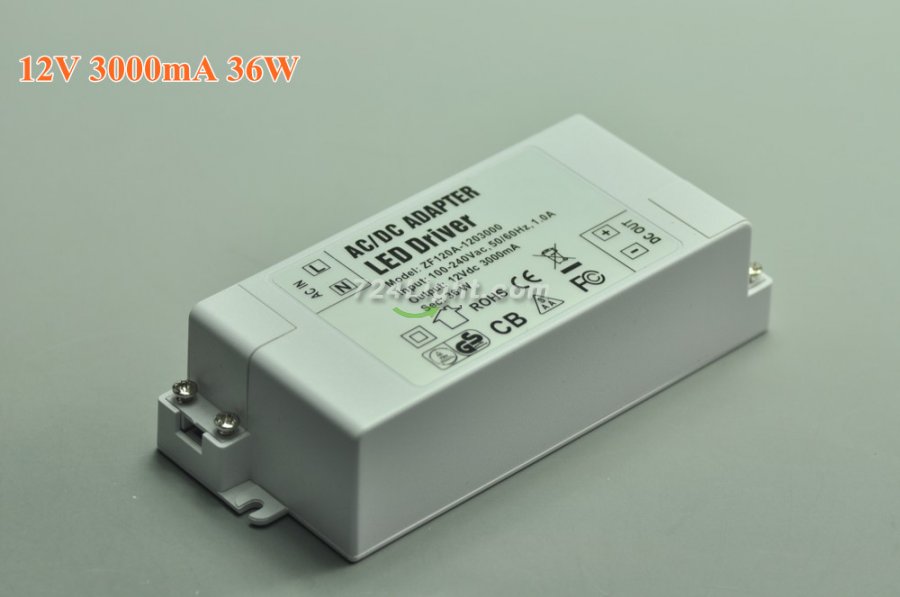

36W 117*48*30 12V-3000mA 0.155 <= 3M(9.84Ft)

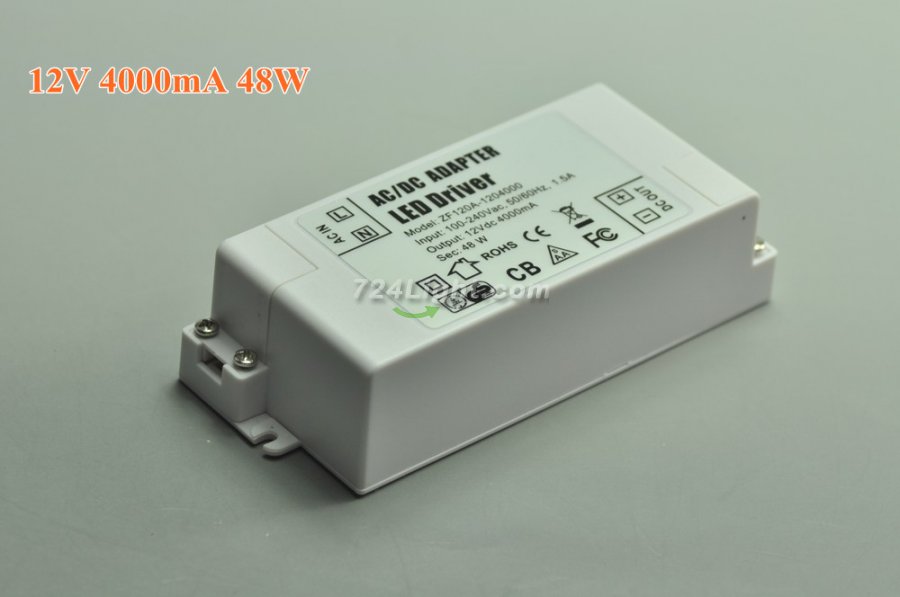

48W 117*47*30 12V-4000mA 0.142 <= 4M(13.12Ft)

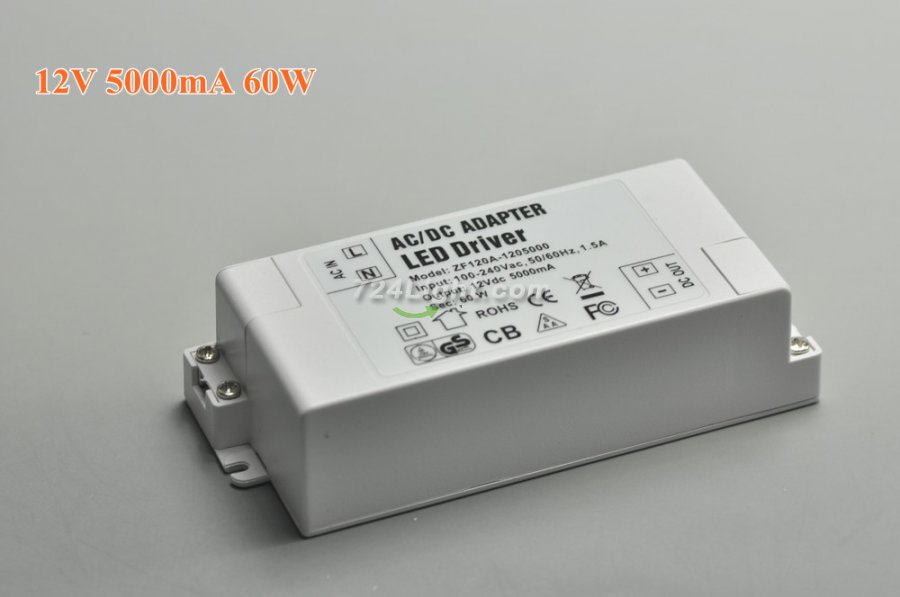

50W 117*48*30 12V-5000mA 0.155 <= 5M(16.4Ft)
