Buttons | Definition |
SET | Save Settings ( to save current settings file and the playback speed ) |
MODE | Change programs |
SPEED+ | Speed up | Press speed+ and speed- on the same time the program
      will play circularly. |
SPEED- | Speed down |
 Â
DC5V | +5V power input |
GND | Power GND input |
7.5-24V | +7.5-24V power input |
POWER | Power indicator |
ERROR | Error indicator |
SD CARD | SD card slot |
 Features:
  1. 256 Gray,Gamma correction processing software.
  2. Support the rules and special-shaped handle.
  3. Controller, a port output, may bring 1024/2048 light.
  4. Off-line control, play back content stored in the SD card
  5. T-1000C store a maximum of 16 documents
  Note: The model T-1000S with one port output, When it control 512  pixels the speed can reach 30fps, more than 512 pixels, the frame speed will be slow down automatically

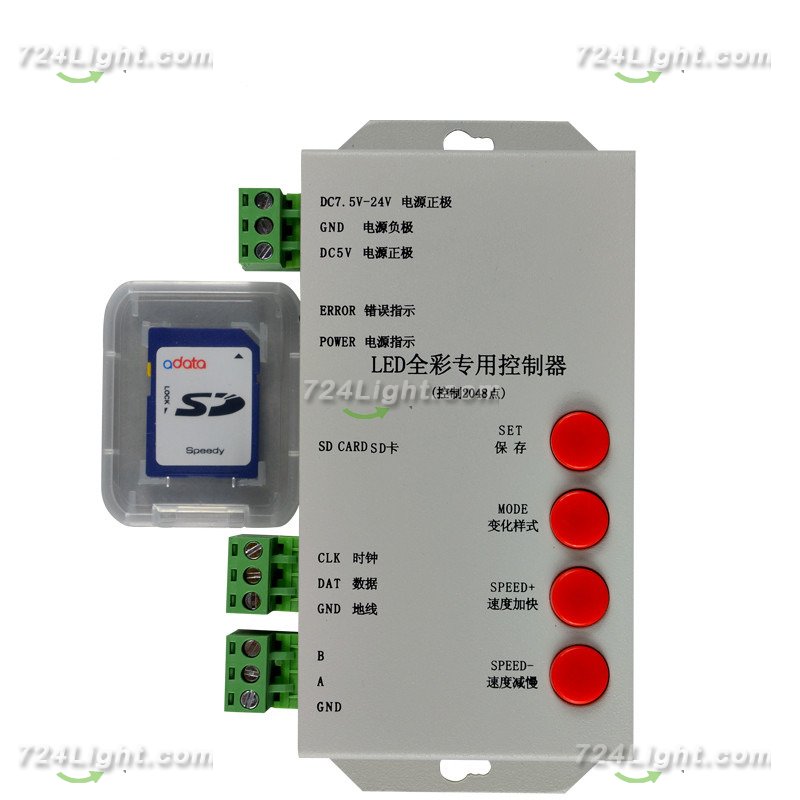

 Connection diagram:           Â
7.5V-24V | DC power input, to provide two sets of power input, select a group can be. |
5V | Power Ground. |
GND | Error indicator |
ERROR | Power LED |
POWER | SD card slot |
SD CARD | Output CLK |
CLK | Output DATA |
DAT | Signal Ground |
GND | Â |
B
     A | Compatible with DMX signal, differential A, and differential B |
GND | Signal Ground |
Regulatory function button: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
SET | Save Settings to save current settings file and the playback speed |
MODE | Switch File |
SPEED+ | Speed up the playback speed |
SPEED- | Slow down the playback speed |
 System architecture diagram:
  Specific parameters:
  Memory Card:
  . Type: SD Card
  . Capacity: 128MB-2GB
  . File Format: FAT file format
  . Store files: *.led
  Physical parameters:
  . Weight:0.2kg
  . Size:122mm*67mm*25mm
  . Temperature :-40-85 Degree
  . Volgate: DC5V / DC7.5-24V
  . Power:3W
 Â
 Note:
  To copy files to SD card, you must first format to the SD card, pay attention to is that each copy must be formatted before.
  SD card must be formatted as "FAT" format.
Â
  TTL signal(245/spi signal):   RS485 signal.                                Â
CLK | Clock signal | B | Signal A / DMX+ |
DAT | Data signal | A | Signal B / DMX- |
GND | Signal ground | GND | Signal ground |
NOTE:For the TTL(SPI) signal, the controller signal ground must connect to
 Â
the LED lamp ground directly. Â
Package List:
 T1000S Controller* 1piece
 SD Card* 1piece
