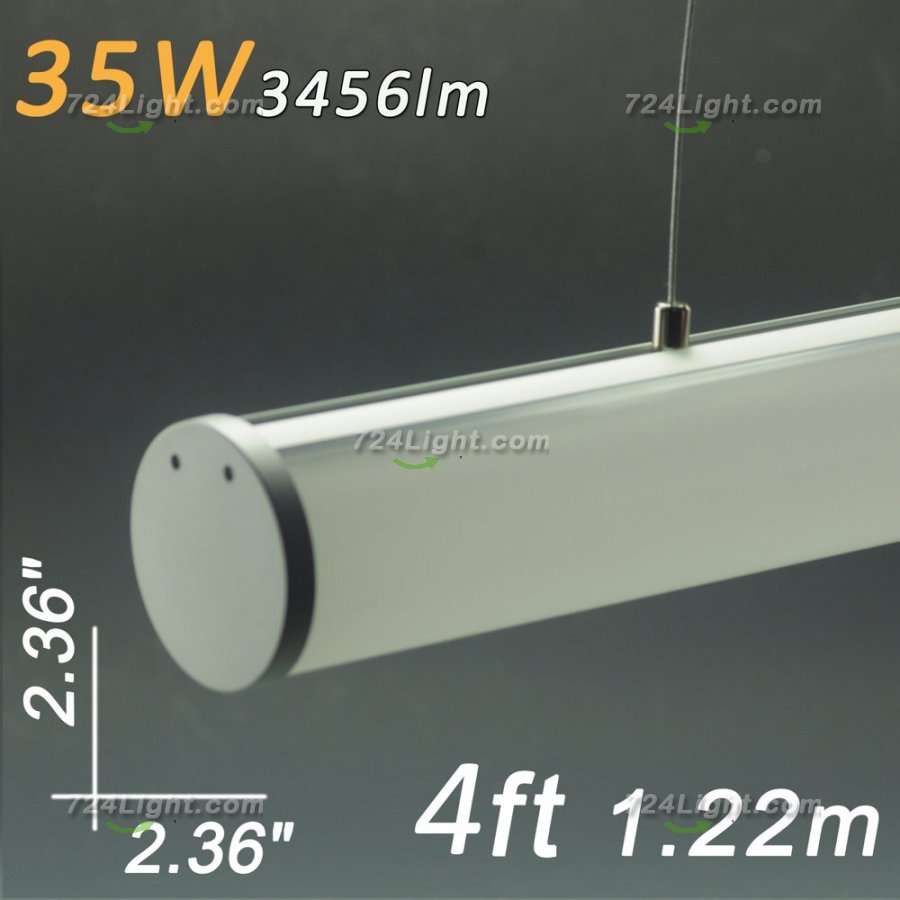

Linear Suspension Fixtures 4ft 1.2 Meter 2.36"x2.36" 35W DC 12V

Price: $132.50

  • Model: SPL-D-H-T60-4F   Weight:2Kg

Please Choose:

LED Color






about led white
Qty Discounts Off Price
1-4
$132.50
5-9
$125.88
10-49
$119.25
50-99
$112.63
100-199
$106.00
200+
$99.38

* Discounts may vary based on options above
Add to Cart:
buy now
Shipping To  us start at $34.00,Over $100 Free shipping

Description:

The 35W SPL-D-H-T60-series LED Suspension Linear is an energy-efficient, low maintenance alternative to traditional linear fluorescent in a variety of commercial, low bay lighting applications. Compact and sleek in design, the linear features a long rated life of 50,000 hours . Ideal for industrial, commercial and light assembly applications. DC12V input ,Consumes 35 Watts of power using 144PCS high power 5050 SMD LEDs. welcome wholesale , also If need any length and color please contact info@724light.com
Product Specifications
Part number:SPL-D-H-T60-4F
Mount Type:Suspended
Finish:Silver Oxide
Length:48 inch(1.22meter)
Operating Voltage:DC 12V(With 1pcs Power Supply)
Power Consumption:35W
Replacement For:T8 53W to 58W Fluorescent
Color option:Pure White , Warm White,Cool White,Double White(PW+WW)
Color Temperature:Pure White(6000-6500k),Warm White(2700-3500k),Cool White,
Lumen:Pure White:3456 Lumens
Warm White:3156 Lumens
LED Type:SMD5050
LED Quantity:144
Beam Angle:Approx. 120°
CRI:80 CR
Operating Temperature:-40~+45 °C
Power Input:DC12V
Dimmable:No
Power Factor:0.97
Connector:OneSide AC 3Pin Power Cord
Brown:L(LIVE)
Blue: N(NEUTRAL)
Yellow/Green:E(EARTH)
Lens:Frosted
Lifetime:50000 Hours
Standards And Certifications:CE/FCC/ROHS Compliant
Warranty:4 Years
Weight :1 kg
Dimensions(L*H*W):48" x 2.36"x2.36"(1220mm x 60mm x 60mm)
Packaging list :1* LED Linear
1* Power Supply
2 * Droplight Accessories package(steel line and Binding screw)
Housing:
  • 6063 Rugged extruded aluminum housing.
  • Each LED module is equipped with an upper limit thermal control to ensure fixture lifetime throughout the temperature range.
Electrical:
  • 10-12V volt.
  • System power factor is >90% and THD <20%.
Mounting :

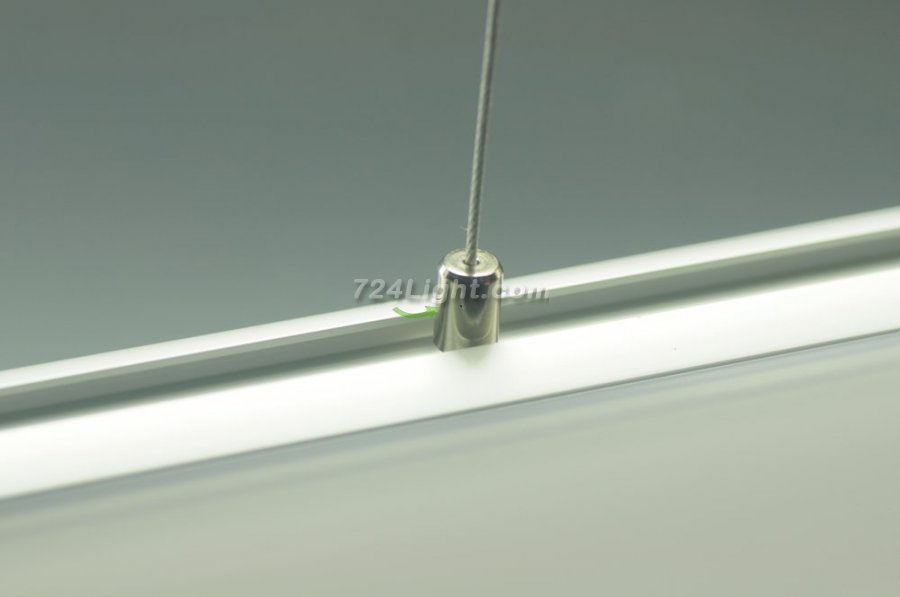

  • Suspended the steel line, place the Gem Bar (with ground screw inserted)into the Canopy over top , and attch all components together with a countersunk,connect 12v power supply
Controller optional:
    Default without controller
  • 1: Motion and Daylight sensor
  • 2: Wireless remoter controller
Applications:
  • Suspended Lights in Office, Schools, Hallways,Parking Garage, Parking Structure Lighting
  • Lighting in Production Area, Warehouse,Coolers, Freezers, Vending Machines
  • Retail Store Display Lighting,Transportation, Railroad, Buses
  • Undercabinet or Cabinet Lights,Light Boxes, Signage Backlighting
