  4. LED Dulb 18W aluminium PCB SMD5730 Semi-Finished Dry LED Aluminium Base For LED Lighting

LED Dulb 18W aluminium PCB SMD5730 Semi-Finished Dry LED Aluminium Base For LED Lighting

Model: PCBH-DW-H-5730-18W-2
Availability :  In Stock
  • LED Dulb 18W aluminium PCB SMD5730 Semi-Finished Dry LED Aluminium Base For LED Lighting
  • LED Dulb 18W aluminium PCB SMD5730 Semi-Finished Dry LED Aluminium Base For LED Lighting
  • LED Dulb 18W aluminium PCB SMD5730 Semi-Finished Dry LED Aluminium Base For LED Lighting
  • LED Dulb 18W aluminium PCB SMD5730 Semi-Finished Dry LED Aluminium Base For LED Lighting
  • LED Dulb 18W aluminium PCB SMD5730 Semi-Finished Dry LED Aluminium Base For LED Lighting
  • LED Dulb 18W aluminium PCB SMD5730 Semi-Finished Dry LED Aluminium Base For LED Lighting
  • LED Dulb 18W aluminium PCB SMD5730 Semi-Finished Dry LED Aluminium Base For LED Lighting
$4.70
LED Color

Qty Discounts Off Price
1-49
$4.70		 50-499
$4.23		 500-999
$3.76		 1,000-2,999
$3.29		 3,000-4,999
$2.82		 5,000+
$2.35

* Discounts may vary based on options above
QTY :

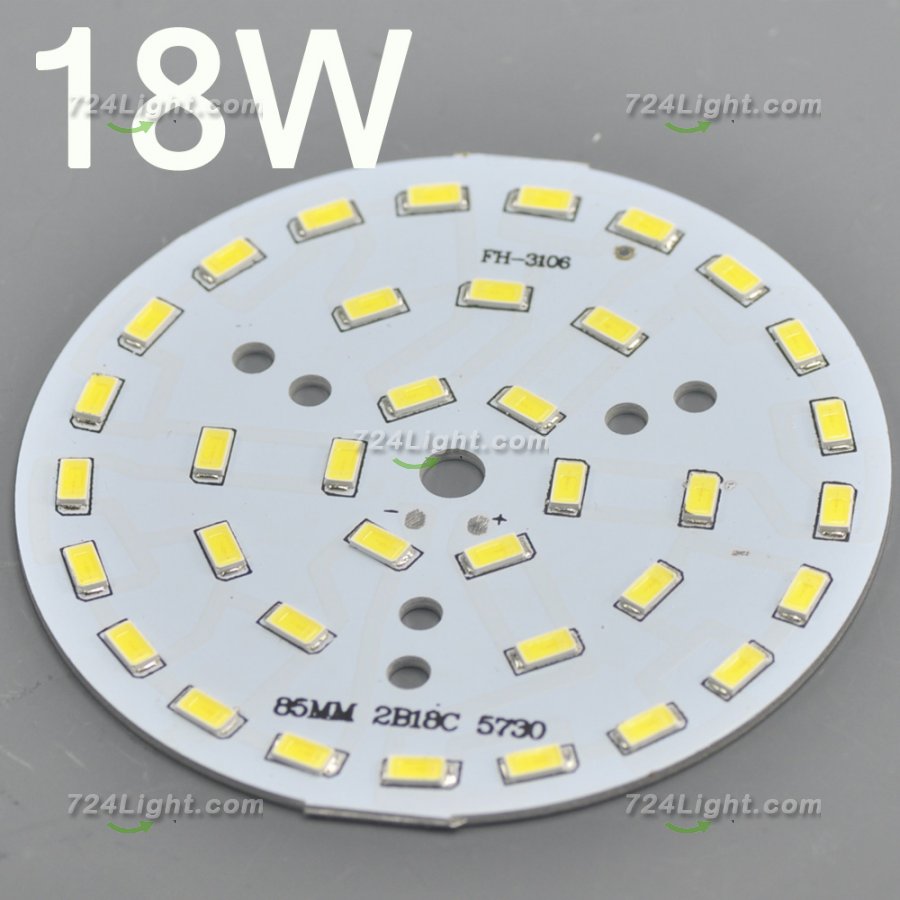

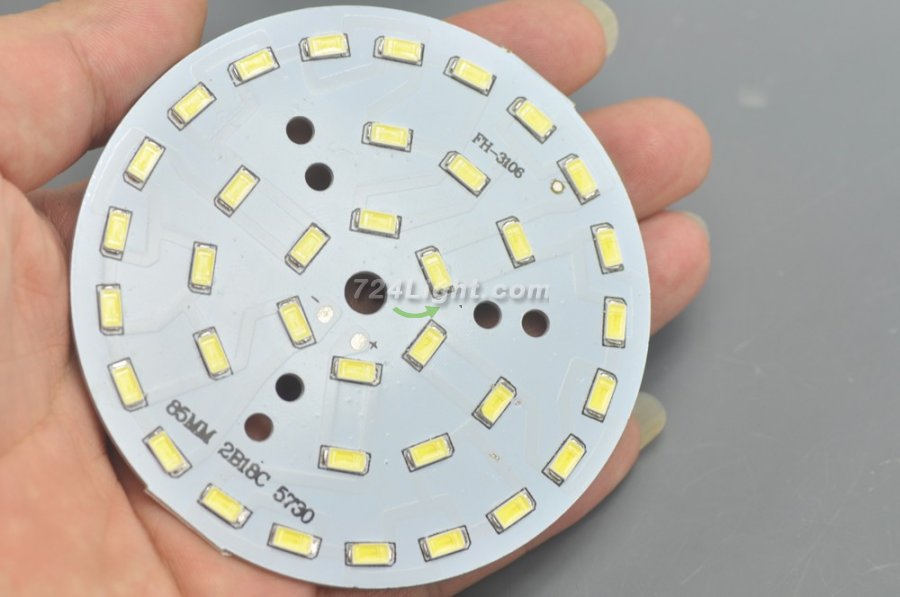

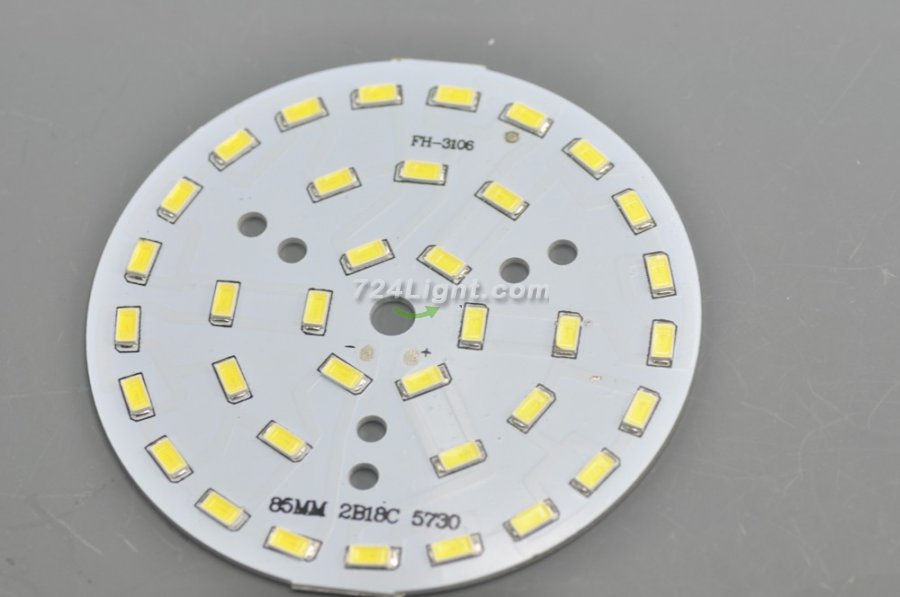

724Light 18W PCB For LED BULB/led downlight Dry ,this semi-finished chip to produce up to max 990 lumens. Color include:Pure White, Warm White.(We can do any color temperature led chip,if need custom/wholesale ,please contact [email protected]:)


Product Specifications
Part number: PCBH-DW-H-5730-18W
Wattage: 18W
Compares to: 45 Watt Halogen Quartz
Color: Pure White, Warm White
Color Temperature: Pure White(6000-6500k),Warm White(2700-3500k)
Lumen: 990 Lumens
LED Type: SMD 5730
LED Quantity: 1x36 series
Beam Angle: Approx. 140°
CRI: 80 CR
Operating Temperature:-40~+50 °C
Materials:Aluminum
Operating Voltage:54-60V
Operating Current: 260-300mA
Dimensions: 85mm
Lifetime:40000 Hours
Standards And Certifications:CE/FCC/ROHS Compliant
Warranty:2 Years
Weight : 0.023 kg
Packaging list: 1 pcs x  semi-finished pcb with led
Number into the box : 100pcs
