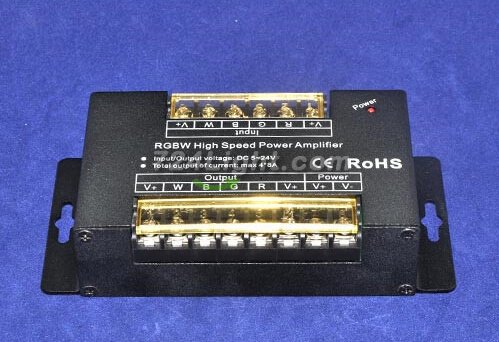

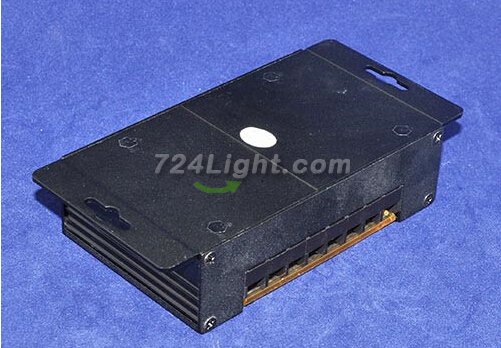

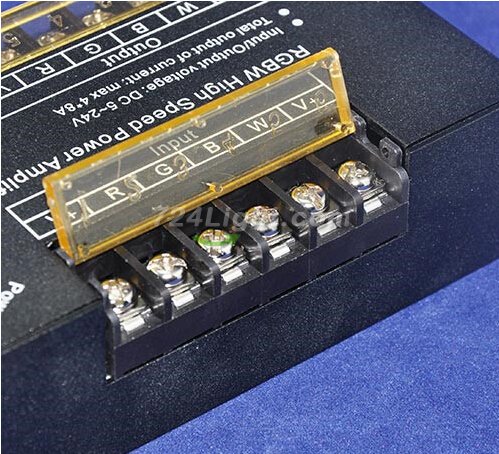

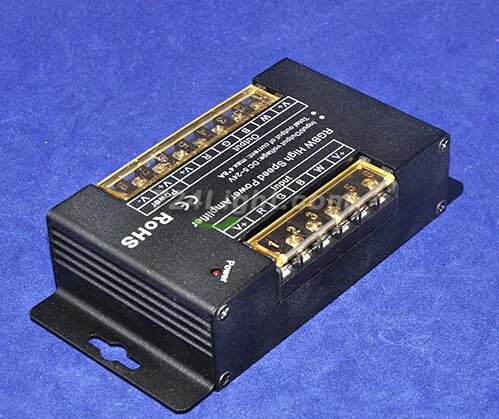

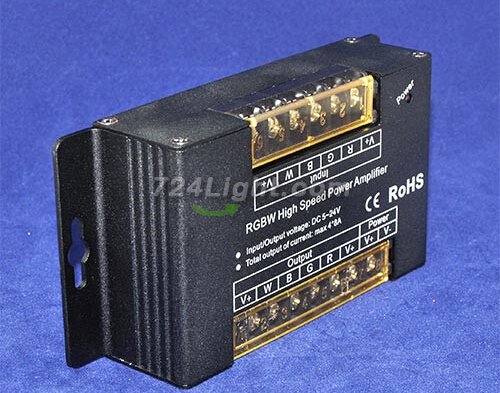

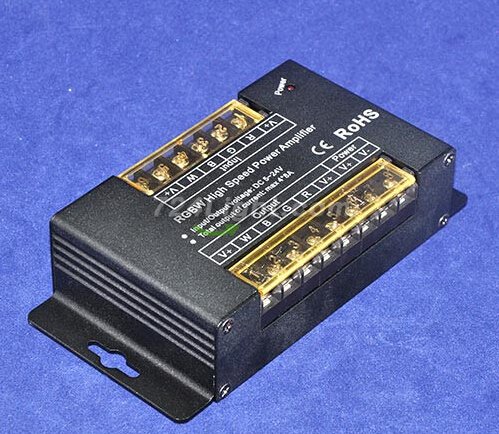

DC5V-24V LED RGBW High Speed Large Current Power Amplifier For LED Strip DC5V<160W 24V<768W

Price: $19.90

  • Model: LD-TAC-100-A   Weight:0.4Kg
Add to Cart:
buy now
Shipping To  us start at $10.20,Over $100 Free shipping

Description:

Product Summarization
High speed large current power amplifier, suit for PWM control led controller, it can amplify the power of LED controller, each time add one amplifier, the connecting number of led will be more than twice to three times, and can cascade, in theory, numerous amplifiers can be connected. It is convenience for different voltage, high power and small power LED lamps and lanterns unified control. Whether our company's products or any other company's products, as long as it is PWM control, voltage appropriate, all can use this series power amplifier. Using high speed light lotus root design, can achieve very low delay time, to ensure that when many sets of cascade, it can keep pace with host.

Technical Parameters
Working temperature: -20-60
Working voltage: DC5V-24V
Signal voltage: DC5V-24V
Input signal: PWM dimming signal
Dimming range: 0.1%-100%
Net weight: 270g
Gross weight: 310g
External dimension: L147mm*W70mm*H34mm
Packing size: L152* W75* H75mm
Connect terminal: screw connect mode, terminal caliber 7mm
Connect mode: common anode
Output current: <32A
Output power: 5V:<160W, 24V:<768W

Package:
1 * RGBW High Speed Large Current Power Amplifier



DC5V-24V LED RGBW High Speed Large Current Power Amplifier For LED Strip DC5V
DC5V-24V LED RGBW High Speed Large Current Power Amplifier For LED Strip DC5V
DC5V-24V LED RGBW High Speed Large Current Power Amplifier For LED Strip DC5V

DC5V-24V LED RGBW High Speed Large Current Power Amplifier For LED Strip DC5V
DC5V-24V LED RGBW High Speed Large Current Power Amplifier For LED Strip DC5V
DC5V-24V LED RGBW High Speed Large Current Power Amplifier For LED Strip DC5V
