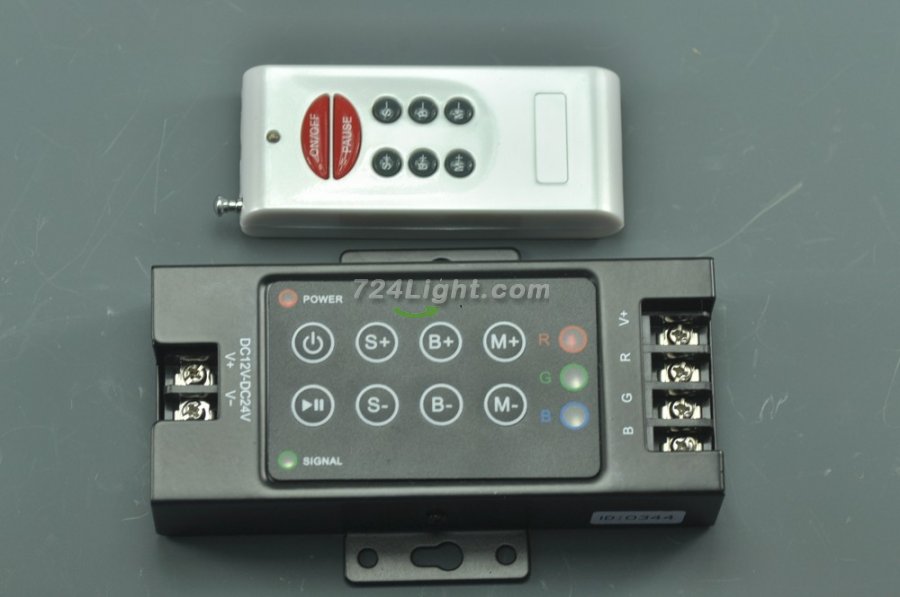

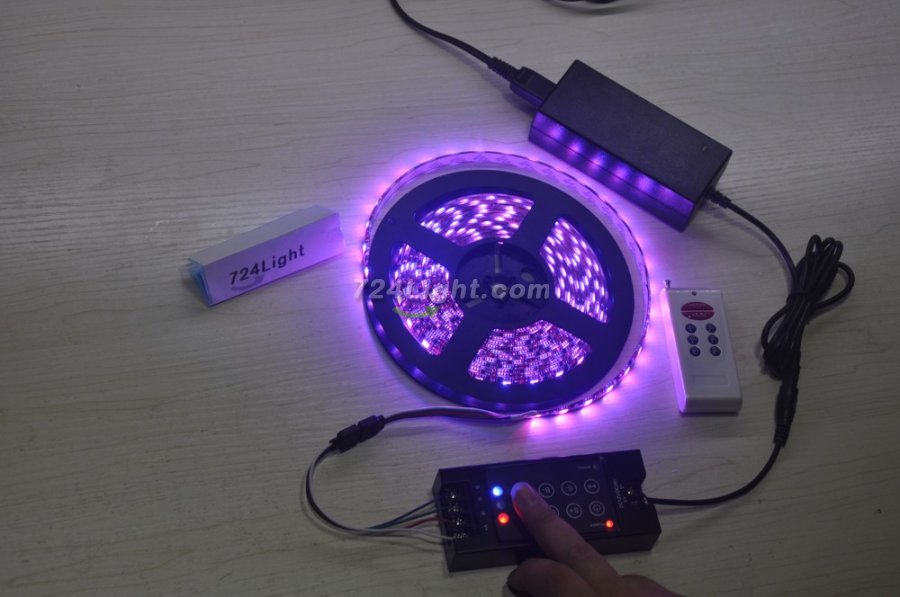

RF 8-key controller adopts the advanced micro-control unit,it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible strip light, wall washer lamp, glass curtain wall light and so on;It has power-fail memory, synchronized indicator light show and other functions. At the same time,it has many advantages such as low price, easy connection and simplicity to use. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.    Working temperature: -20-60 C    Supply voltage: DC12V (optional DC5V, 24V available, please contact us if you need.)    Output: 3 channels    Connecting mode: Common anode (pls contact us if you need common cathode.)    External dimension: L121*W53*H25 mm    Packing size: L150*W76*H51 mm    Net weight: 255g    Gross weight: 285g    Static power consumption: <1W    Output current: <4A(each channel)    Output power: 12V: <144W, 24V: <288W    This item can work great with(MAX) 20 meters SMD5050 30LEDs/M LED Strips    or 10 meters SMD5050 60LEDs/M LED Strips. How to use: 1. Connect the load wire at first, following by the power wire 2. Adopt film button and RF for controlling,there are 8 buttons in all, the funtion of each key as follows: (1): you could turn on/off controller at any time; (2): Play/pause button,it is convenient for you to see the static effection of led; S(3)+: The step of the speed change add 1 by each pressing; S-(4): The step of the speed change subtract 1 by each pressing; B+(5): A brightness control button,the step of the brightness add 1 by each pressing; B-(6): The step of the brightness subtract 1 by each pressing; M+(7): The NO. of patterns add 1 by each pressing;(refer to the following form) M-(8): The NO. of patterns subtract 1 by each pressing; Standard changes funtion as the following form:
No.
Patterns
Remarks
1
Static red
Â
 Brightness is adjustable,Speed is unadjustable.
14
Blue stroboflash
Speed and
Brightness
are adjustable
2
Static blue
15
Purple stroboflash
3
Static purple
16
Green stroboflash
4
Static green
17
Yellow stroboflash
5
Static yellow
18
Cycan stroboflash
6
Static cyan
19
White stroboflash
7
Static white
20
R/B crossfade
Speed is adjustable,
brightness is unadjustable
8
Three-color jumpy changing
Speed and brightness are adjustable
21
B/G crossfade
9
Seven-color jumpy changing
22
G/R crossfade
10
Three-color gradual changing
Speed is adjustable,brightness is unadjustable
23
fadeout and fadein in whole
11
Seven-color gradual changing
24
 Random flashing
12
Three-color running
25
AUTO
1-24Â
13
Red stroboflash
