50pcs x 12v 1A US UL listed 5.5x 2.1mm Power supply Wholesale Free Shipping

Price: $130.34

  • Model: PS-UL-P12W12V1A   Weight:0.11Kg
Add to Cart:
buy now
Shipping To  us start at $6.97,Over $100 Free shipping

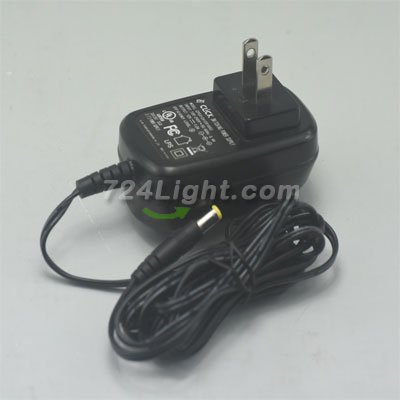

50pcs x 12v 1a power supply

The dc out put is 5.5mm x 2.1mm 2.5meter long . UL Listed power supply . Note :this input is AC120V only for USA and Canada . online UL checkE301297

Model PS-UL-P12W12V1A-110
Series PS-UL-P12W12V1A
OutputDc Voltage12V
Rated Current 1A
Current Range 0~1A
Rated Power 12W
Ripple&Noise(max) Note.2120mVp-p
Voltage Tolerance Note.3±5.0%
Line Regulation±1.0%
Load Regulation±2.0%
Setup,Rise Time500ms, 20ms / 230VAC    5 at full load
Hold Up Time(typ.)50ms/230VAC          16ms/115VAC at full load
InputVoltage Range Note.490 ~ 264VAC 127 ~ 370VDC
Frequency Range47-63Hz
Ac Current(typ.) 0.3A/120VAC
Inrush currentCOLD START 45A
leakage Current 0.25mA/120VAC
ProtectionOverload110-150% rated output power
 protection type:hiccup mode,recovers automatically after fault condition
 115-135% rated output voltage
Over Voltage13.8 ~ 16.2V
Protection type : Shut off o/p voltage, clamping by zener diode
EnvironmentWorking Temp-30 ~ +70℃ (Refer to "Derating Curve")
Working Humidity20-90%rh non-condesing
Storage Temp,Humidity-40~+85 , 10~95% RH
Vibration10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety&EMCSafety Standard Note.6UL879, UL1310, CSA C22.2 No. 207-M89, CAN/CSA C22.2 No. 223-M91, IP67 approved ; design refer to TUV EN60950-1
Withstand VoltageI/P-O/P:3KVAC
Isolation ResistanceI/P-O/P:>100M Ohms / 500VDC / 25 / 70% RH
EMC EmissionCompliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
EMI ImmunityCompliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-1, light industry level, criteria A
OthersMTBF320.7Khrs min. MIL-HDBK-217F (25 )
Dimension 76mm*46.9mm*31.6mm (L*W*H)
Packing 0.11Kg
Warranty 3 years warranty
  • 1. All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  • 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  • 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  • 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  • 5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
  • 6.Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  • 7.The unit might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of the unit.
  • 8.Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minute.
