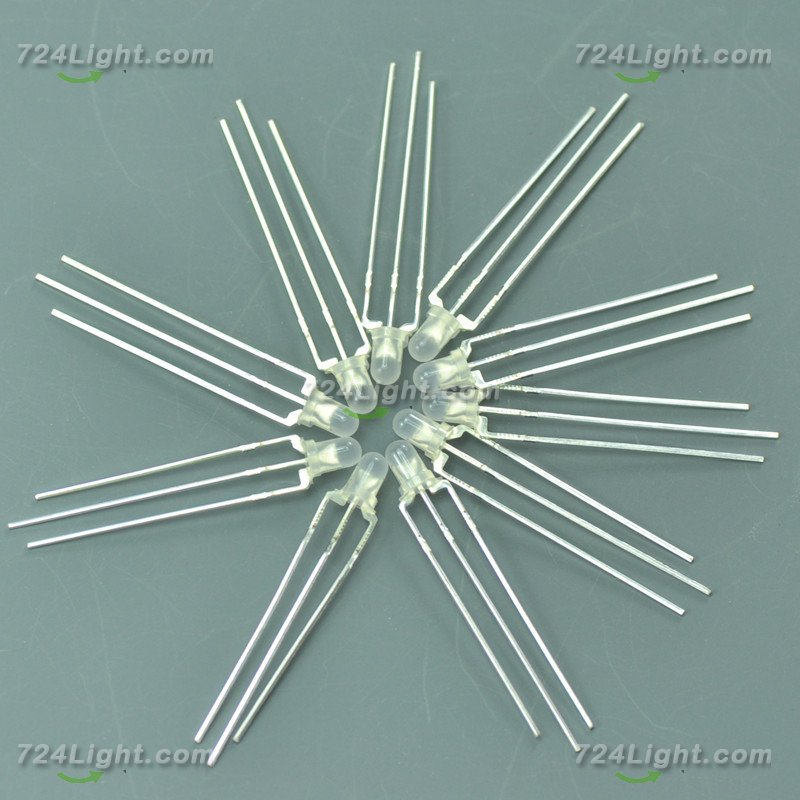

3mm Blue/Green/White/Yellow/Orange/Red/Pink/Ultra Violet Purple/RGB Flash LED Lamp Light Bulb

Price: Starting at: $0.06

  • Model: SL0010   Weight:0.002Kg

Please Choose:

LED Color-169









Qty Discounts Off Price
1-49
$0.06
50-499
$0.05
500-999
$0.05
1,000-2,999
$0.04
3,000-4,999
$0.04
5,000+
$0.03

* Discounts may vary based on options above
Add to Cart:
buy now
Shipping To  us start at $1.73,Over $100 Free shipping

Description:

FEATURES:
New !
In excellent condition
Long lasting (Last up to 100000hours)
Low Power Consumption
Intensely Bright
Low Forward Voltage Operated
Instant Light (Less than 100ns)

SPECIFICATIONS:
Led size: 3mm
Viewing Angel:20 Degree
Source Material:InGaN
Emitting Colour:BLUE
Luminous Intensity-MCD: Min: 8000mcd  Max: 13000 mcd
Reverse Voltage:5.0 V
DC Forward Voltage: Typical: 3.4 V Max: 3.8V
DC Forward Current:20mA
Viewing Angle:20±10 degree
Lead Soldering Temp:260°C for 5 seconds
Intensely Bright

Absolute Maximum Ratings at Ta=25°C

Items Symbol Absolute maximum Rating Unit
Power Dissipation PD 100 mW
Forward Current(DC) IF 20 mA
Peak Forward Current* IFP 30 mA
Reverse Voltage VR 5 V
Operation Temperature Topr -40~85
Storage Temperature Tstg -10~100
Lead Soldering Temperature Tsol Max.260°C for 5 sec Max. (3mm from the base of the epoxy bulb)

*Pulse width≦0.1msec duty≦1/10

Electrical/Optical Characteristics at Ta=25°C

Items Symbol Condition Min. Typ. Max. Unit
Forward Dissipation VF IF=20mA 3.00 / 3.80 V
Reverse Current(DC) IR VR=5V / / 10 uA
Dominant Wavelength λD IF=20mA 520 / 530
Luminous Intensity IV IF=20mA 10000 / 15000 mcd
50% Power Angle △θ IF=20mA / ±10 / deg


XYZ0
