24 Watt LED Power Supply 12V 2A LED Power Supplies For LED Strips LED Light

Price: $7.50

  • Model: GY-PS-JK-S-24-12   Weight:0.075Kg
Qty Discounts Off Price
1
$7.50
2-4
$7.13
5-14
$6.75
15-19
$6.38
20-49
$6.00
50+
$5.63

Add to Cart:
buy now
Shipping To  us start at $2.98,Over $100 Free shipping

Description:

Model GY-PS-JK-S-24-12
Output Dc Voltage 12V
Rated Current 2A
Rated Power 24W
Ripple&Noise 180mvp-p
Voltage ADJ.Range 10.8-13.2V
Voltage Tolerance ±1.0%
Line Regulation ±0.5%
Load Regulation ±1.0%
Setup,Rise Time 300ms,50ms/230VAC 800ms,50ms/115Vac at full load
Hold Up Time(typ.) 90ms/230vac 12ms/115vac At Full Load
input Voltage Range 85-264VAC 120-370VDC
Frequency Range 47-63Hz
Efficiency(typ.) 74%
Ac Current(typ.) 5.6A/115V  2.8A/230Vac
Inrush current Cold Start  25A/115Vac 50A/230V
leakage Current 3.5mA/240VAC
Protection Overload 105-150% rated output power
protection type:hiccup mode,recovers automatically after fault condition
115-135% rated output voltage
Over Voltage 115-135% rated output voltage
Protection Type:hiccup mode,recovers automatically after fault condition
environment Working Temp  -10~+60°c
Working Humidity 20-90%rh non-condesing
Storage Temp,Humidity  -20~+85°c,10-95%rh
Temp.Coefficient ±0.03%°c(0-50°c)
Vibration 10-500hz
Safety&EMC safety standard CE RoHS
withstand voltage I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
Isolation Resistance I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH
EMI Conduction&radiation Design refer to GB4943,UL60950,EN60950
EMC Standard Design refer to GB9254,EN55022 Class A
Dimension L90*W40*H25mm
Packing 0.075kg

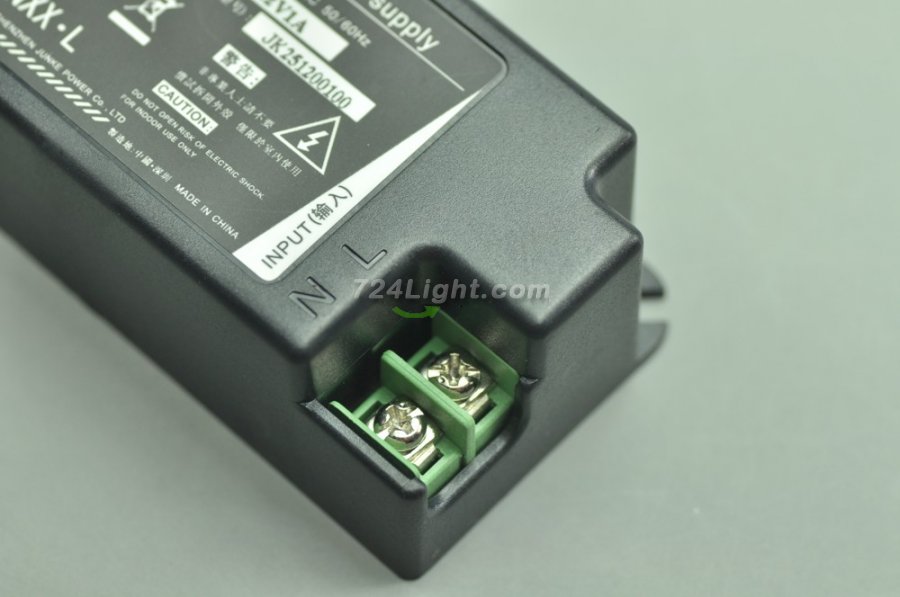

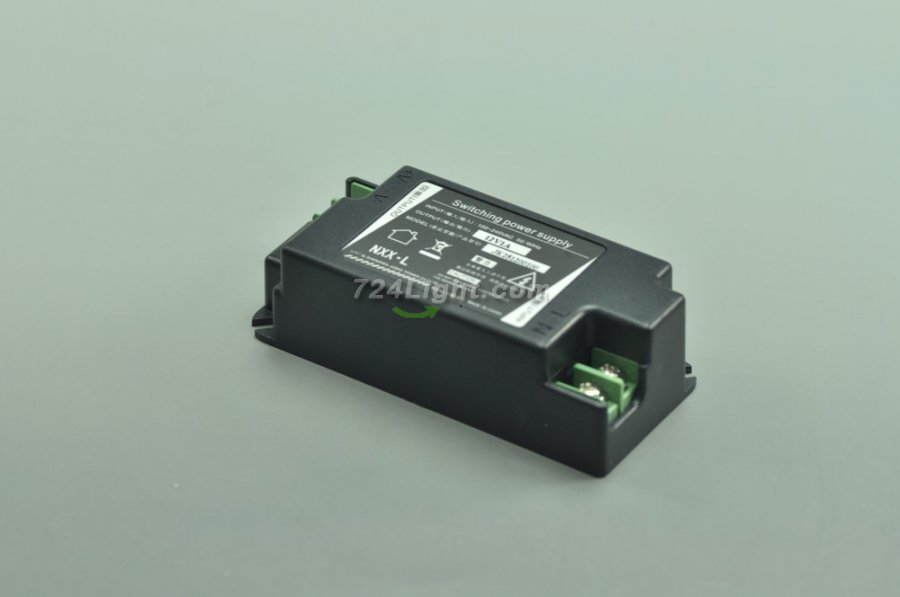

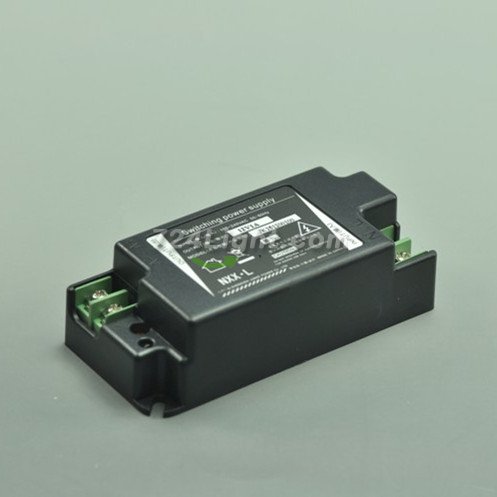

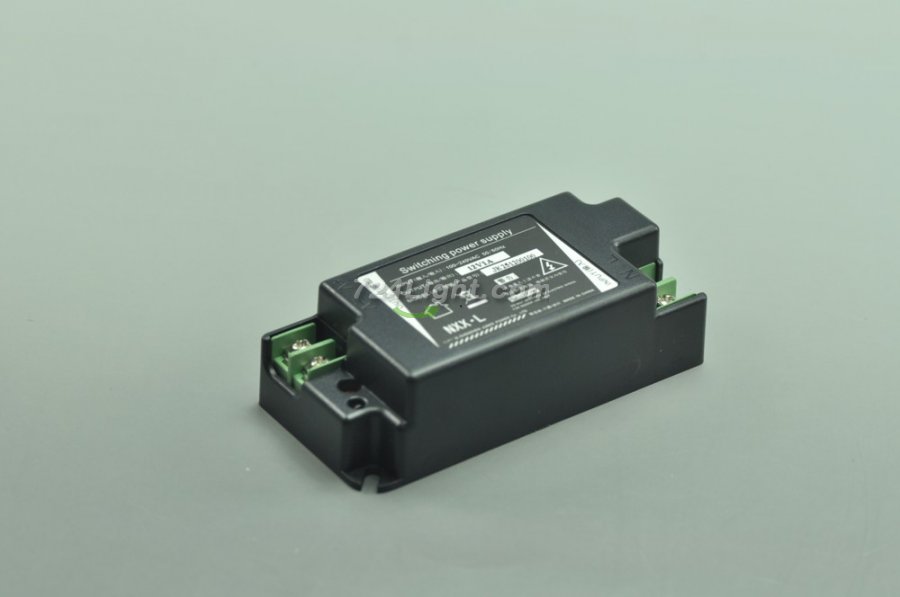

24 Watt LED Power Supply 12V 2A LED Power Supplies For LED Strips LED Light
24 Watt LED Power Supply 12V 2A LED Power Supplies For LED Strips LED Light
24 Watt LED Power Supply 12V 2A LED Power Supplies For LED Strips LED Light

24 Watt LED Power Supply 12V 2A LED Power Supplies For LED Strips LED Light




12V Adapter Series LED Power Supply

ImagesPart Number Current (A)Power(W)AC Input DC Output OutPort Weight Price
PS-HQ-AI-P12W12V1A1A12W100 - 240v12V5.5mm x 2.1mm0.1kg$2.9
PS-HQ-AI-P24W12V2A2A24W100 - 240v
12V5.5mm x 2.1mm0.14kg$4.5
PS-HQ-A-P36W12V3A-C73A36W100 - 240v12V5.5mm x 2.1mm0.22kg$6.45
PS-HQ-A-P48W12V4A-C144A48W100 - 240v
12V5.5mm x 2.1mm0.22kg$7.9
PS-HB-A-P60W12V5A-C75A60W100 - 240v12V5.5mm x 2.1mm0.3kg$11.19
PS-HQ-A-P72W12V6A-C146A72W100 - 240v
12V5.5mm x 2.1mm0.29kg$13.9
PS-HQ-A-P84W12V7A-C147A84W100 - 240v12V5.5mm x 2.1mm0.5kg$16.9
PS-HQ-A-P96W12V8A-C148A96W100 - 240v
12V5.5mm x 2.1mm0.5kg$18.9
PS-HQ-A-P120W12V10A-C1410A120W100 - 240v12V5.5mm x 2.1mm0.56kg$22.9
PS-HQ-A-P150W12V12.5A-C1412.5A150W100 - 240v
12V5.5mm x 2.1mm0.86kg$29
PS-HQ-AI-P15W12V1.25A-US1.25A15W100 - 240v12V5.5mm x 2.1mm0.177kg$3.5
PS-HQ-AI-P24W12V2A-AU-12A24W100 - 240v
12V5.5mm x 2.1mm0.127kg$4.99
PS-HQ-AI-P24W12V2A-US-UL2A24W100 - 240v12V5.5mm x 2.1mm0.148kg$5.5
PS-HQ-AI-P30W12V2.5A-AU2.5A30W100 - 240v
12V5.5mm x 2.1mm0.191kg$5.99
PS-HQ-AI-P30W12V2.5A-C142.5A30W100 - 240v
12V5.5mm x 2.1mm0.186kg$6.5


12V Original Adapter Series LED Power Supply

ImagesPart Number Current (A)Power(W)AC Input DC Output OutPort Weight Price
PS-OR-AI-P18W12V1.5A-AU1.5A18W100 - 240v12V5.5mm x 2.1mm0.133kg$4.75
PS-CWT-AI-P24W12V2A-US2A24W100 - 240v
12V5.5mm x 2.1mm0.126kg$5.99
PS-HUAWEI-AI-P12W12V2A-EU2A24W100 - 240v12V5.5mm x 2.1mm0.181kg$7.5
PS-TG-AI-P30W12V2.5A-C142.5A30W100 - 240v
12V5.5mm x 2.1mm0.269kg$10.99
PS-OR-AI-P36W12V3A-EU3A36W100 - 240v12V5.5mm x 2.1mm0.3kg$7.9
PS-OR-AI-P36W12V3A-UK3A36W100 - 240v
12V5.5mm x 2.1mm0.3kg$7.9
PS-JB-A-P60W12V5A-C145A60W100 - 240v12V5.5mm x 2.1mm0.35kg$11.5
PS-HQ-A-P60W12V5A-C75A60W100 - 240v
12V5.5mm x 2.1mm0.38kg$12.9


12V UL Certification Adapter Series LED Power Supply

ImagesPart Number Current (A)Power(W)AC Input DC Output OutPort Weight Price
PS-ZH-AI-P12W12V1A-US1A12W100 - 240v12V5.5mm x 2.1mm0.102kg$7.01
PS-ZH-AI-P24W12V2A-US2A24W100 - 240v
12V5.5mm x 2.1mm0.146kg$11.93
PS-ZH-A-P36W12V3A-C73A36W100 - 240v12V5.5mm x 2.1mm0.224kg$14.91
PS-ZH-A-P48W12V4A-C74A48W100 - 240v
12V5.5mm x 2.1mm0.224kg$17.45
PS-ZH-A-P60W12V5A-C75A60W100 - 240v12V5.5mm x 2.1mm0.224kg$18.94
PS-ZH-A-P72W12V6A-C76A72W100 - 240v
12V5.5mm x 2.1mm0.326kg$28.87
PS-ZH-A-P84W12V7A-C77A84W100 - 240v12V5.5mm x 2.1mm0.326kg$31.85
PS-ZH-A-P96W12V8A-C78A96W100 - 240v
12V5.5mm x 2.1mm0.326kg$33.34
PS-ZH-A-P120W12V10A-C710A120W100 - 240v12V5.5mm x 2.1mm0.484kg$44.76


12V SP Non-Waterproof Switching Enclosed Series LED Power Supply

ImagesPart NumberDimension(L*W *H) Current (A)Power(W)AC Input DC Output OutPort  Weight Price
SP-PS-35-1285*58*33mm3A36W100 - 240v12V2P/8mm pich terminal block0.2kg$12.99
SP-PS-60-12108*75*34mm 5A60W100 - 240v
12V2P/8mm pich terminal block0.28kg$16.5
SP-PS-100-12126*95*37mm8.3A100W100 - 240v12V4P/8mm pich terminal block0.4kg$21.5
SP-PS-120-12158*98*40mm 10A120W100 - 240v
12V4P/8mm pich terminal block0.48kg$22.5
SP-PS-150-12167*105*56mm12.5A150W100 - 240v12V4P/8mm pich terminal block0.48kg$26.5
SP-PS-200-12158*98*46mm 16.6A200W100 - 240v12V4P/8mm pich terminal block0.6kg$16.50
SP-PS-250-12158*98*46mm20.5A250W100 - 240v12V4P/8mm pich terminal block0.63kg$33.99
SP-PS-350-12203*151*55mm 29.2A350W100 - 240v12V6P/8mm pich terminal block0.76kg$42.5
SP-PS-400-12203*151*55mm33.3A400W100 - 240v12V6P/8mm pich terminal block0.76kg$43.99
SP-C-100-12120*96*40mm 8.3A100W100 - 240v
12V2P/8mm pich terminal block0.29kg$22.5
SP-C-150-12162*97*41mm12.5A150W100 - 240v12V4P/8mm pich terminal block0.39kg$27.5
SP-L-60-12163*43*32mm 5A60W100 - 240v
12V2P/8mm pich terminal block0.2kg$22.5
SP-L-100-12190*52*37mm8.3A100W100 - 240v12V4P/8mm pich terminal block0.26kg$29.99
SP-L-150-12200*58*37mm 12.5A150W100 - 240v12V4P/8mm pich terminal block0.38kg$34.99
SP-L-250-12223*70*39mm20.5A250W100 - 240v12V4P/8mm pich terminal block0.65kg$39.99


12V JK Non-Waterproof Switching Enclosed Series LED Power Supply

ImagesPart NumberDimension(L*W *H) Current (A)Power(W)AC Input DC Output OutPort  Weight Price
GY-PS-JK-E-36-12105*58*34mm3A36W100 - 240v12V2P/8mm pich terminal block0.131kg$11.5
GY-PS-JK-E-60-12105*58*34mm 5A60W100 - 240v12V2P/8mm pich terminal block0.131kg$11.5
GY-PS-JK-E-80-12145*62*43mm7A80W100 - 240v12V4P/8mm pich terminal block0.244kg$14.99
GY-PS-JK-E-100-12145*62*43mm 8.5A100W100 - 240v
12V4P/8mm pich terminal block0.244kg$16.5
GY-PS-JK-E-150-12130*98*40mm12.5A150W100 - 240v12V4P/8mm pich terminal block0.606kg$21.5
GY-PS-JK-E-180-12130*98*40mm 15A180W100 - 240v
12V4P/8mm pich terminal block0.606kg$27.5
GY-PS-JK-E-240-12197*94*46mm20A240W100 - 240v12V6P/8mm pich terminal block0.437kg$27.5

12V YLY Non-Waterproof Switching Enclosed Series LED Power Supply

ImagesPart NumberDimension(L*W *H) Current (A)Power(W)AC Input DC Output OutPort  Weight Price
GY-PS-YLY-N-80-12215*80*30mm7A80W200 - 240v12V6P/8mm pich terminal block0.44kg$24.96
GY-PS-YLY-N-160-12215*78*33mm 13.5A160W200 - 240v12V6P/8mm pich terminal block0.55kg$32.45
GY-PS-YLY-E-240-12195*115*32mm20A240W200 - 240v12V6P/8mm pich terminal block0.54kg$47.42
GY-PS-YLY-E-360-12220*120*31mm 30A360W170-240v
      100-120v
12V6P/8mm pich terminal block0.73kg$16.5

12V NES Non-Waterproof Switching Enclosed Series LED Power Supply

ImagesPart NumberDimension(L*W *H) Current (A)Power(W)AC Input DC Output OutPort  Weight Price
NES-50-12129*98*38mm4.2A50W100 - 240v12V2P/8mm pich terminal block0.41kg$31.99
NES-75-12159*97*38mm6.2A75W100-240v12V2P/8mm pich terminal block0.52kg$38.5
NES-100-12159*97*38mm8.5A100W100-120v
      200-240v
12V4P/8mm pich terminal block0.53kg$40.5
NES-150-12199*98*38mm12.5A150W100-120v
      200-240v
12V4P/8mm pich terminal block0.7kg$52.99
NES-200-12215*115*50mm 17A200W100-120v
      200-240v
12V6P/8mm pich terminal block0.93kg$74.5
NES-350-12215*115*50mm29A350W100-120v
      200-240v
12V6P/8mm pich terminal block1.07kg$83.99


12V Switching Enclosed LED Power Supply

ImagesPart NumberDimension(L*W *H) Current (A)Power(W)AC Input DC Output OutPort  Weight Price
GY-PS-JK-S-12-1293*43*27mm1A12W100 - 240v12V2P/8mm pich terminal block0.075kg$6.99
GY-PS-JK-S-24-1293*43*27mm 2A24W100 - 240v12V2P/8mm pich terminal block0.075kg$7.5
GY-PS-JK-S-36-12115*40*25mm3A36W100 - 240v12V2P/8mm pich terminal block0.121kg$9.99
GY-PS-JK-S-48-12115*40*25mm 4A48W100 - 240v
12V2P/8mm pich terminal block0.121kg$9.99
GY-PS-ZH-S-12-1276*36*23mm1A12W100 - 240v12V2P/8mm pich terminal block0.047kg$8.51
GY-PS-ZH-S-24-1295*44*23mm 2A24W100 - 240v12V2P/8mm pich terminal block0.072kg$12.54
GY-PS-ZH-S-36-12117*48*30mm3A36W100 - 240v12V2P/8mm pich terminal block0.155kg$29.85
GY-PS-ZH-S-48-12117*47*30mm 4A48W100 - 240v
12V2P/8mm pich terminal block0.142kg$32.84
GY-PS-ZH-S-60-12117*48*30mm5A60W100 - 240v12V2P/8mm pich terminal block0.155kg$35.33


12V SP Waterproof Switching Enclosed Series LED Power Supply

ImagesPart NumberDimension(L*W *H) Current (A)Power(W)AC Input DC Output OutPort  Weight Price
SP-FX-60-12163*68*38mm5A60W100 - 240v12V16AWGx2C(18cm)0.45kg$24.99
SP-FX-100-12183*68*38mm 8.3A100W100 - 240v
12V16AWGx2C(18cm)0.47kg$29.99
SP-FX-150-12235*88*48mm12.5A150W100 - 240v12V16AWGx2C(18cm)0.77kg$34.99
SP-FX-250-12235*88*48mm 20.5A250W170 - 240v
100 - 120v
12V16AWGx2C(18cm)0.88kg$39.99
SP-FX-350-12265*107*52mm29.2A350W100 - 240v12V16AWGx2C(18cm)1.13kg$52.5
SP-FX-400-12265*107*52mm 33.3A400W170 - 240v
100 - 120v
12V16AWGx2C(18cm)1.15kg$54.99
SP-LP-20-12118*35*26mm1.66A20W100 - 240v12V16AWGx2C(18cm)0.25kg$16.5
SP-LP-35-12148*40*30mm 3A35W100 - 240v12V16AWGx2C(18cm)0.35kg$21.5
SP-LP-60-12163*43*32mm5A60W100 - 240v12V16AWGx2C(18cm)0.4kg$27.5
SP-LP-75-12190*45*33mm 6.25A75W100 - 240v12V16AWGx2C(18cm)0.57kg$32.5
SP-LP-100-12190*52*37mm8.3A100W100 - 240v12V16AWGx2C(18cm)0.65kg$37.5
SP-LPS-150-12205*70*37mm 12.5A150W170 - 240v
100 - 120v
12V16AWGx2C(18cm)1.02kg$56.45
SP-LPS-200-12240*110*50mm16.6A200W170 - 240v
100 - 120v
12V16AWGx2C(18cm)1.68kg$76.6
SP-LPSL-12-12207*175*165mm 1A12W100 - 240v12V16AWGx2C(18cm)0.1kg$13.22
SP-LPSL-35-12170*40*30mm2.9A35W100 - 240v12V16AWGx2C(18cm)0.32kg$18.18
SP-LPSL-60-12185*40*30mm 5A60W100 - 240v12V16AWGx2C(18cm)0.48kg$13.22


12V LTC Waterproof Switching Enclosed Series LED Power Supply

ImagesPart NumberDimension(L*W *H) Current (A)Power(W)AC Input DC Output OutPort  Weight Price
GY-PS-LTC-60-12120*90*50mm5A60W175 - 240v12V2P/8mm pich terminal block0.27kg$15.97
GY-PS-LTC-100-12140*90*55mm 8.3A100W175 - 240v
12V2P/8mm pich terminal block0.32kg$19.97
GY-PS-LTC-150-12180*90*50mm12.5A150W175 - 240v12V2P/8mm pich terminal block0.39kg$21.96
GY-PS-LTC-250-12180*120*60mm 20.8A250W175 - 240v
12V4P/8mm pich terminal block0.58kg$29.95
GY-PS-LTC-350-12230*120*60mm29.2A350W175 - 240v12V6P/8mm pich terminal block0.75kg$32.95
GY-PS-LTC-400-12230*120*60mm 33.3A400W175 - 240v
12V6P/8mm pich terminal block0.75kg$54.99


12V JK Waterproof Switching Enclosed Series LED Power Supply

ImagesPart NumberDimension(L*W *H) Current (A)Power(W)AC Input DC Output OutPort  Weight Price
GY-PS-JK-W-36-12140*38.5*25.5mm3A36W100 - 240v12V16AWGx2C(18cm)0.218kg$16.5
GY-PS-JK-W-60-12160*50*26mm 5A60W100 - 240v
12V16AWGx2C(18cm)0.254kg$27.5
GY-PS-JK-W-96-12155*68*40mm8A96W100 - 240v12V16AWGx2C(18cm)0.596kg$39.99
GY-PS-JK-W-120-12200*68*40mm 12A120W100 - 240v
12V16AWGx2C(18cm)0.722kg$49.99


12V DO Waterproof Switching Enclosed Series LED Power Supply

ImagesPart NumberDimension(L*W *H) Current (A)Power(W)AC Input DC Output OutPort  Weight Price
GY-PS-DO-W-10-12118*26*19mm0.83A10W100 - 240v12V16AWGx2C(18cm)0.127kg$9.99
GY-PS-DO-W-20-12177*28*18mm 1.67A20W100 - 240v
12V16AWGx2C(18cm)0.207kg$12.5
GY-PS-DO-W-30-12216*28*18mm2.5A30W100 - 240v12V16AWGx2C(18cm)0.239kg$17.63
GY-PS-DO-W-36-12216*28*18mm 3A36W100 - 240v
12V16AWGx2C(18cm)0.233kg$18
GY-PS-DO-W-60-12164*64*38mm5A60W100 - 240v12V16AWGx2C(18cm)0.743kg$28.99
GY-PS-DO-W-120-12210*63*39mm 10A120W170 - 240v
100 - 120v
12V16AWGx2C(18cm)0.971kg$52.5
GY-PS-DO-W-200-12230*122*47mm16.5A150W170 - 240v
100 - 120v
12V16AWGx2C(18cm)2.48kg$72.5
GY-PS-DO-W-200-12-1227*115*46mm 16.7A150W170 - 240v
100 - 120v
12V16AWGx2C(18cm)2.36kg$72.5
GY-PS-DO-W-300-12330*115*45mm25A300W170 - 240v
100 - 120v
12V16AWGx2C(18cm)3.5kg$114.99


12V JB Waterproof Switching Enclosed Series LED Power Supply

ImagesPart NumberDimension(L*W *H) Current (A)Power(W)AC Input DC Output OutPort  Weight Price
GY-PS-JB-W-60-12195*52*35mm5A60W100 - 120v12V16AWGx2C(18cm)0.58kg$29.99
GY-PS-JB-W-100-12202*72*45mm 8.33A100W100 - 120v
12V16AWGx2C(18cm)0.98kg$44.99
GY-PS-JB-W-120-12244*72*45mm10A120W100 - 120v12V16AWGx2C(18cm)1.26kg$64.99
GY-PS-JB-W-150-12244*72*45mm 12.5A150W100 - 120v
12V16AWGx2C(18cm)1.26kg$69.99

12V EK Waterproof Switching Enclosed Series LED Power Supply

ImagesPart NumberDimension(L*W *H) Current (A)Power(W)AC Input DC Output OutPort  Weight Price
12V 12.5A LED Power Supply GY-PS-EK-WH-150-12 150W Power supplyGY-PS-EK-WH-150-12230*63*49mm12.5A150W170 - 265v12V16AWGx2C(18cm)1.117kg$68.99
12V 12.5A LED Power Supply GY-PS-EK-W-150-12 150W Power supplyGY-PS-EK-W-150-12240*68*55mm 12.5A150W170 - 265v
12V16AWGx2C(18cm)1.25kg$57.5
12V 16.7A LED Power Supply GY-PS-EK-WH-200-12 200W Power supplyGY-PS-EK-WH-200-12266*63*49mm16.7A200W170 - 265v12V16AWGx2C(18cm)1.4kg$86.5
12V 16.7A LED Power Supply GY-PS-EK-W-200-12 200W Power supplyGY-PS-EK-W-200-12270*68*55mm 16.7A200W170 - 265v
12V16AWGx2C(18cm)1.3kg$72.99
XYZ0

Payment and Shipping

Register airmail Fee:start at $4.9 (6 - 15 days),express shipping start at $19 (3 -6 days) . Order Over $100 free shipping by register airmail,over $200 Free shipping by Express shipping

1.We only accept payment through PayPal(Recommend) and telegraphic transfer.
2. Please key in the correct shipping address while checking out with PayPal. Or the order will be shipped to your PayPal address.
3. Normally, order will be shipped out in 1 business day. For same custom items, it will take us 1-3 working days to Custom.

Shipping Method
Standing Register airmail (Start at $4.9) Area Time
United States,Canada,Mexico 6-14 business days
Australia,New Zealand,Singapore 5-11 business days
United Kingdom, France, Spain, Germany, Netherlands, Japan, Turkey,Belgium, Denmark, Finland, Ireland, Norway,Portugal, Sweden, Switzerland 7-15 business days
Italy , Brazil 10-25 business days
Other countries 7-15 business days
Express (DHL/FedEx/UPS )Starting at $19.00 3-6 business days to worldwide

Note: If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible.

Warranty & Return

  • 1. All products have been checked and packaged in good condition before dispatch.
  • 2. All products have 1 year warranty.
  • 3. If you are not satisfied with our product and service. Please contact us first before giving a non positive feedback or dispute. we will try to our best to solve the problems.

Customer Service

  • 1. We guarantee that all our items are "as stated" in their descriptions. We strive for 100% customer satisfaction on every sale we complete.
  • 2. Our products are direct from LED factory, there is no middle man, no high markup, so we can provide quality items yet very competitive price.
  • 3. If you have any questions please contact us first, most are responded with in 12 business hours.Contact Us

Reviews:






Recently Viewed
