19.7inch 0.5Meter 9W LED Bar Fixture 5630 36LED 1260 Lumens U Type Cabinet LED Bar Light Kits

Price: Starting at: $19.30

  • Model: LD-RG-SH002-kit050   Weight:0.2Kg

Please Choose:

Kits Bar Quantity






LED Color





about led white
Add to Cart:
buy now
Shipping To  us start at $6.80,Over $100 Free shipping

Description:

724Light LD-RG-SH002-kit050 series 19.7inch(500mm) 9W LED Bar Fixture uses high power SMD 5630 LEDs to produce up to 1260lumens/bar. The LD-RG-SH002-Kit series is ideal for cabinet , stairs, parking lots, garages, tunnels, or any other house Interior . Safe 12V DC operation , 100% 6030 aluminium channel . Available in Pure White and Warm white with wide flood 120 degree beam patterns. support custom desgin(info@724light.com)
Product Specifications
Part number: LD-RG-SH002-Kit033
Wattage: 9W/pcs
Compares to: 15W Fluorescent
Kits include Bar: 2/4/6/8 pcs optional
Color Temperature:Pure White(6000-6500k),Warm White(2700-3500k)
Lumen: 1260 Lumens/bar(35Lumens/leds)
LED Type: SMD 5630
LED Quantity: 1*36PCS
Beam Angle:Approx. 120°
CRI:75 CR
Operating Temperature:-40~+50 °C
Materials:Aluminum/Stainless Steel
Operating Voltage: 12 DC
Length: 19.7inch(500mm)
Wire Connector: 2000mm OneSide 2Pin Power Cord with connector
Lifetime:40000 Hours
Standards And Certifications:CE/FCC/ROHS Compliant
Warranty:2 Years
Weight(Net): 0.1kg/bar
Dimensions(LxWxH): 19.7inch(500mm) x 18mm x 8.21mm
Package Weight:
Install : direct install with power supply , clip and screw

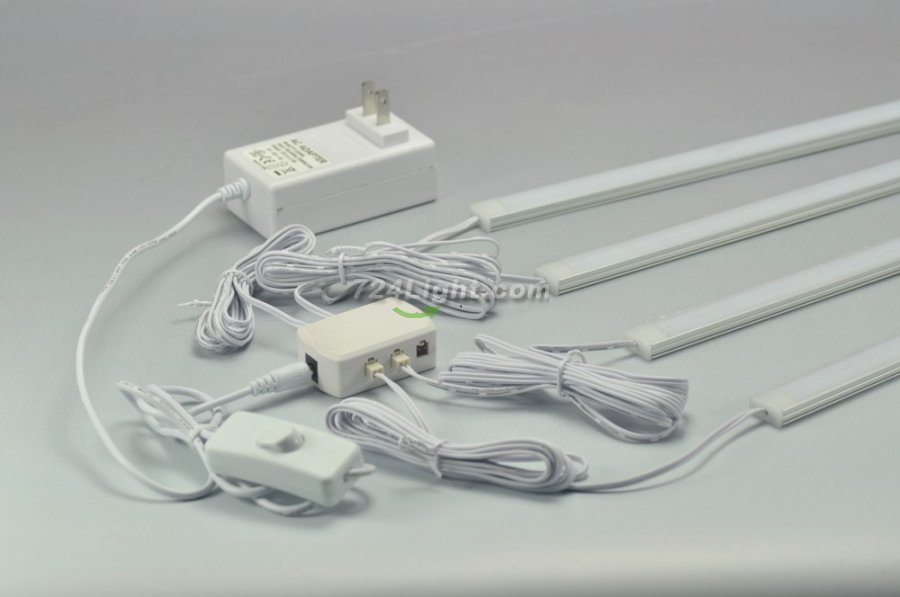

Packaging list:
1)LED Bar (according your choose pcs)
2)LED Power Supply (according your choose pcs )
  • 2PCS--12V 2A
  • 4PCS--12V 4A
  • 6PCS--12V 5A
  • 8PCS--12V 6A

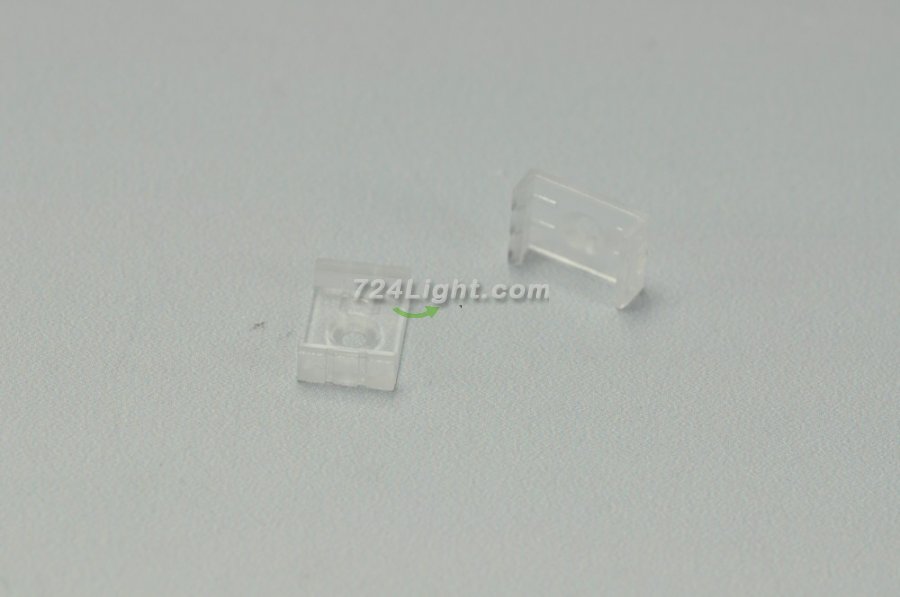

3)Install Clip and screw

ALL LD-RG-SH002 Series (One pcs Bar)

Part Number Length Lumens Watts Compares to LEDS Weight
LD-RG-SH002-Kit033 13inch(330mm) 840 Lumens 6W 10W Fluorescent 24 Pcs 5360LEDs 0.067Kg
LD-RG-SH002-Kit050 19.7 inch(500mm) 1260 Lumens 9W 15W Fluorescent 36 Pcs 5360LEDs 0.1Kg
LD-RG-SH002-Kit100 39.3inch(1000mm) 2520 Lumens 18W 30W Fluorescent 72 Pcs 5360LEDs 0.2Kg
