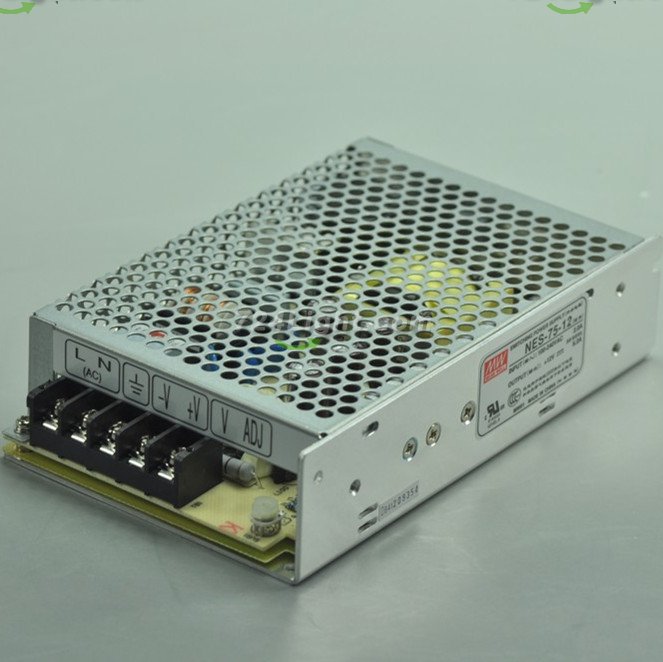

12V 75W MEAN WELL NES-75-12 LED Power Supply 12V 6.2A NES-75 NE Series UL Certification Enclosed Switching Power Supply

Price: $38.50

  • Model: NES-75-12   Weight:0.52Kg
Qty Discounts Off Price
1
$38.50
2-4
$36.58
5-14
$34.65
15-19
$32.73
20-49
$30.80
50+
$28.88

Add to Cart:
buy now
Shipping To  us start at $12.24,Over $100 Free shipping

Description:

Model NES-75
Series NES-75-12
Output Dc Voltage 12V
Rated Current 6.2A
Current Range 0~6.2A
Rated Power 74.4W
Ripple&Noise(max) Note.2 120mVp-p
Voltage ADJ.Range 10.8~13.2V
Voltage Tolerance Note.3 ±1.0%
Line Regulation Note.4 ±0.5%
Load Regulation Note.5 ±0.5%
Setup,Rise Time 1000ms, 20ms/230VAC 1000ms, 20ms/115VAC at full load
Hold Up Time(typ.) 90ms/230vac 12ms/115vac At Full Load
Input Voltage Range Note.8 85~132VAC /176~264VAC selected by switch 248 ~ 373VDC
Frequency Range 47-63Hz
Efficiency(typ.) 82%
Ac Current(typ.) 1.5A/115VAC 0.9A/230VAC
Inrush current COLD START 45A
leakage Current 3.5mA/240VAC
Protection Overload 105-150% rated output power
protection type:hiccup mode,recovers automatically after fault condition
115-135% rated output voltage
Over Voltage 115-135% rated output voltage
Protection Type:hiccup mode,recovers automatically after fault condition
Environment Working Temp -20 ~ +60℃ (Refer to "Derating Curve")
Working Humidity 20-90%rh non-condesing
Storage Temp,Humidity -40~+85 , 10~95% RH
Temp.Coefficient ±0.03%°c(0-50°c)
Vibration 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety&EMC Safety Standard Note.6 UL60950-1, CB(IEC60950-1),CCC GB4943.1:2011 approved CE RoHS
Withstand Voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC Emission Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
EMI Immunity Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-1, light industry level, criteria A
Others MTBF 320.7Khrs min. MIL-HDBK-217F (25 )
Dimension 159*97*38mm (L*W*H)
Packing 0.52Kg;30pcs/16.6Kg/0.97CUFT
Warranty 2 years warranty
Datasheet
Note:
  • 1. All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  • 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  • 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  • 4. Line regulation is measured from low line to high line at rated load.
  • 5. Load regulation is measured from 0% to 100% rated load.
  • 6. For the request of GB4943.1,the power supply is only suitable for use in the altitude 2000m below and the non tropical climate condition.
  • 7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
  • 8. When using DC voltage as the input, please connect positive pole of input voltage to mark “N” of the terminal block and negative pole of input voltage to mark “L” of the terminal block.
