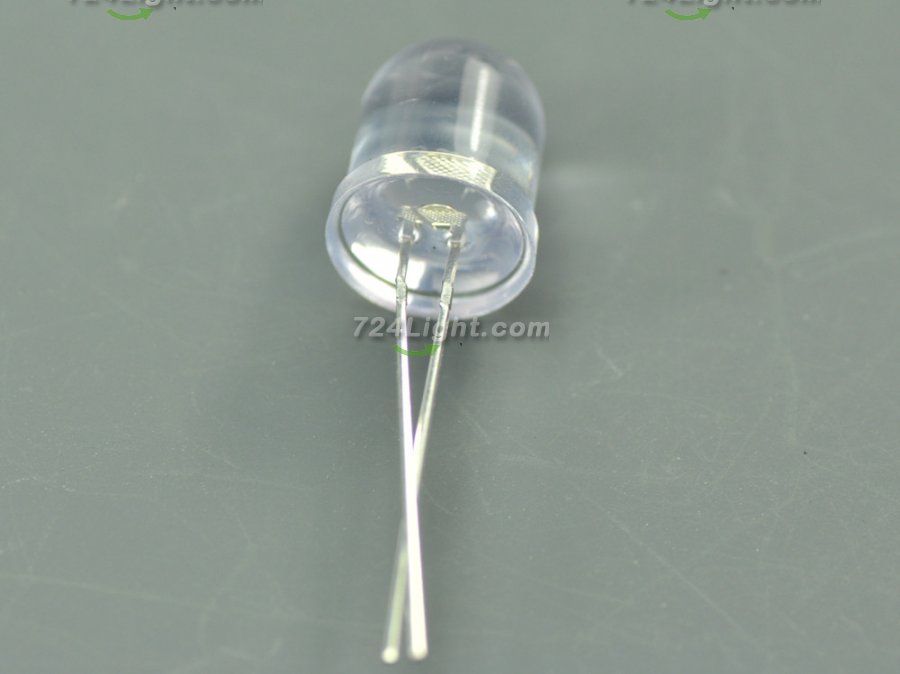

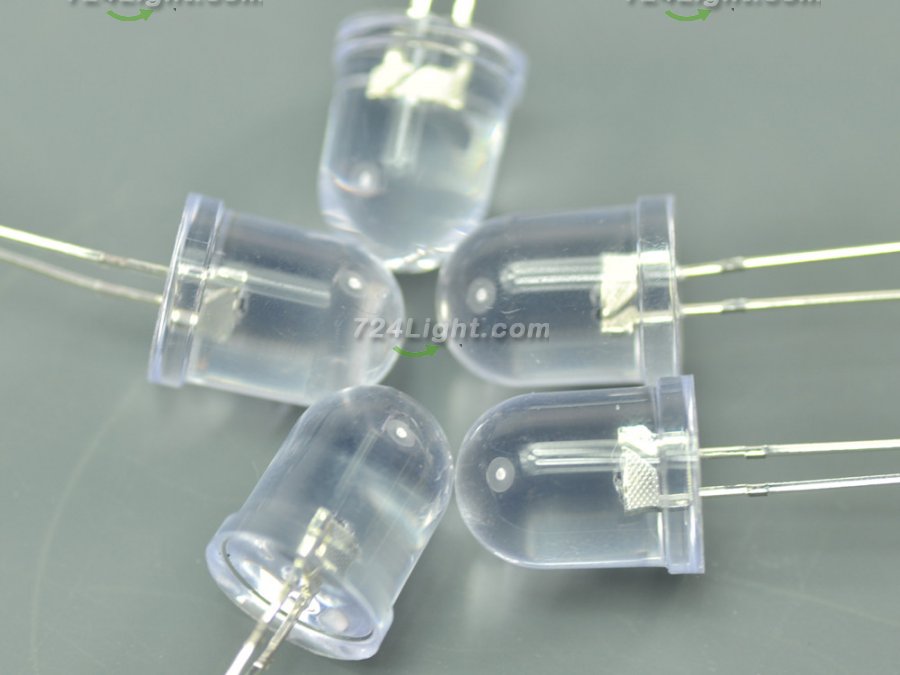

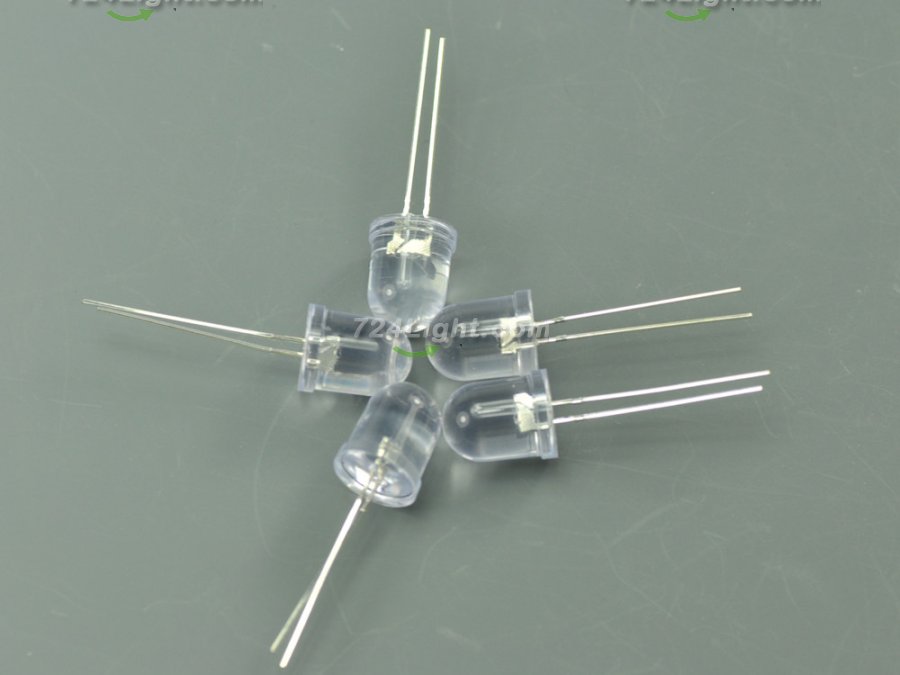

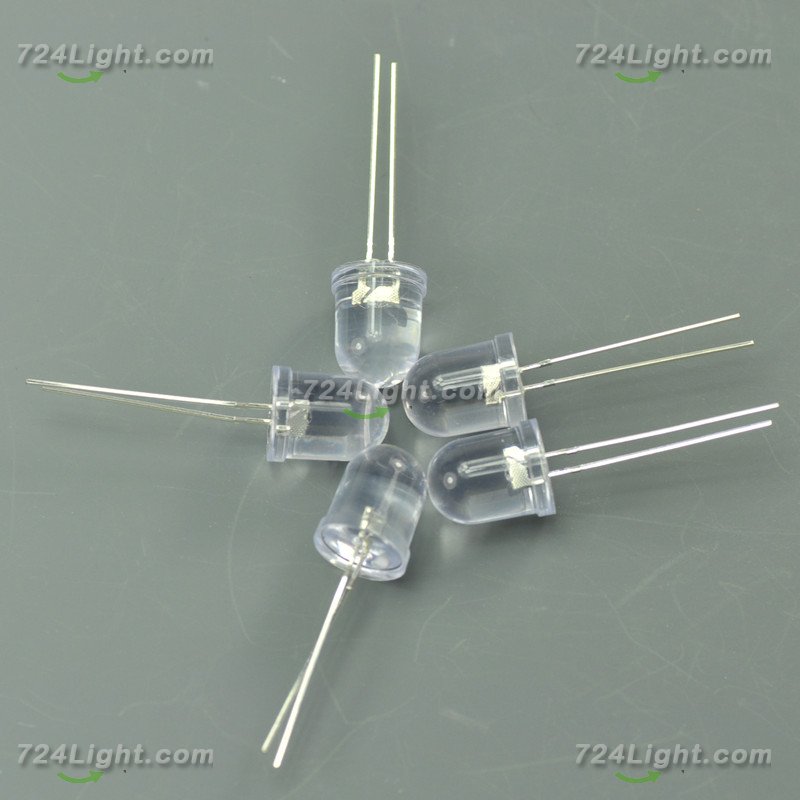

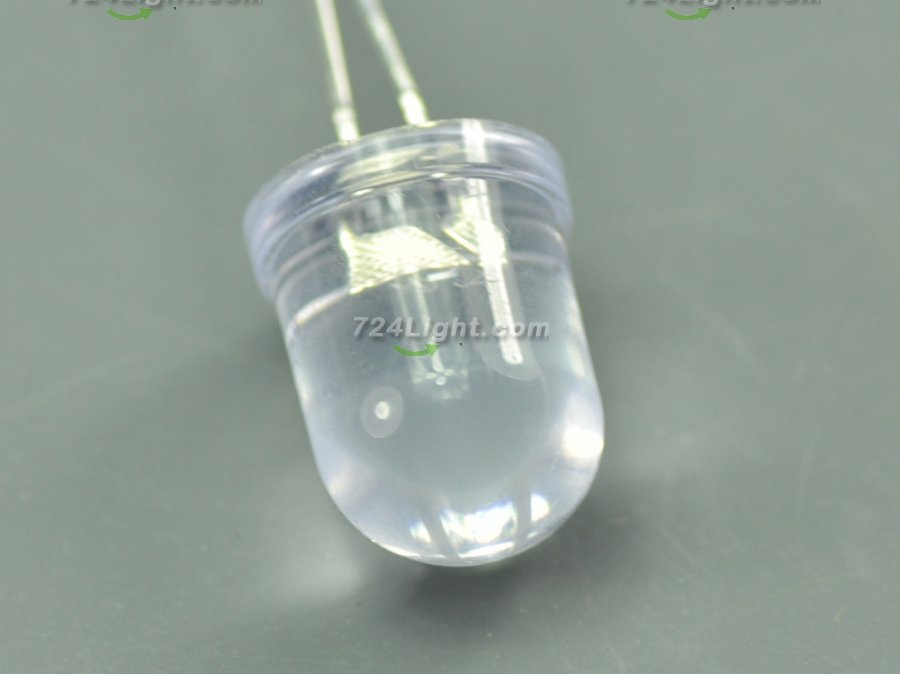

10mm Super Bright Straw Hat Led Lamp

Price: Starting at: $0.20

  • Model: SL0041   Weight:0.002Kg

Please Choose:

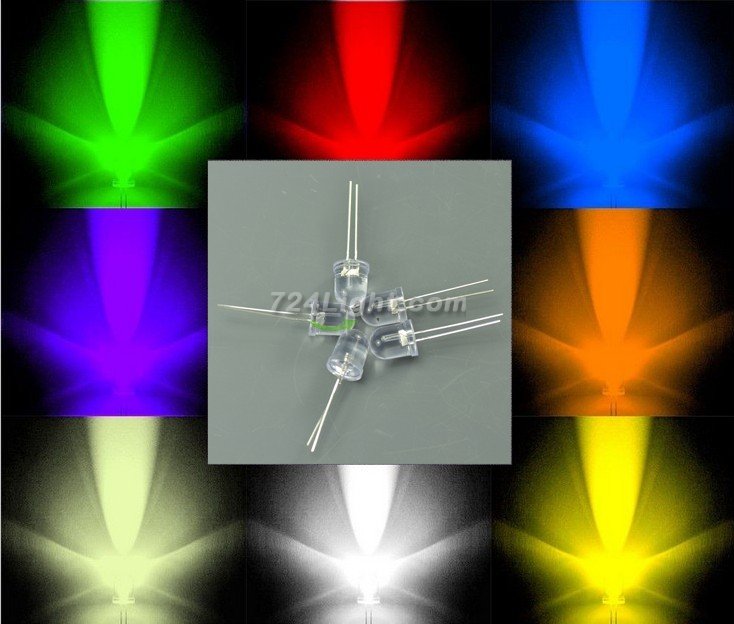

LED Color-169






Qty Discounts Off Price
1-49
$0.20
50-499
$0.18
500-999
$0.16
1,000-2,999
$0.14
3,000-4,999
$0.12
5,000+
$0.10

* Discounts may vary based on options above
Add to Cart:
buy now
Shipping To  us start at $1.73,Over $100 Free shipping

Description:

FEATURES:
New !
In excellent condition
Long lasting (Last up to 100000hours)
Low Power Consumption
Intensely Bright
Low Forward Voltage Operated
Instant Light (Less than 100ns)

SPECIFICATIONS:
Led size: 10mm
Viewing Angel:12 Degree
Source Material: InGaN
Emitting Colour:Amber
Luminous Intensity-MCD: Min:50000cd  Max: 70000 mcd
Reverse Voltage:5.0 V
DC Forward Voltage: Typical:2.0 V Max: 2.4V
DC Forward Current:20mA
Viewing Angle:12±6 degree
Lead Soldering Temp:260°C for 5 seconds
Intensely Bright

Absolute Maximum Ratings at Ta=25°C

Items Symbol Absolute maximum Rating Unit
Power Dissipation PD 100 mW
Forward Current(DC) IF 20 mA
Peak Forward Current* IFP 30 mA
Reverse Voltage VR 5 V
Operation Temperature Topr -40~85
Storage Temperature Tstg -10~100
Lead Soldering Temperature Tsol Max.260°C for 5 sec Max. (3mm from the base of the epoxy bulb)

*Pulse width≦0.1msec duty≦1/10

Electrical/Optical Characteristics at Ta=25°C

Items Symbol Condition Min. Typ. Max. Unit
Forward Dissipation VF IF=20mA 1.80 / 2.40 V
Reverse Current(DC) IR VR=5V / / 10 uA
Dominant Wavelength λD IF=20mA 600 / 610
Luminous Intensity IV IF=20mA 50000 / 70000 mcd
50% Power Angle △θ IF=20mA / ±6 / deg


10mm Super Bright Straw Hat Led Lamp
10mm Super Bright Straw Hat Led Lamp
10mm Super Bright Straw Hat Led Lamp

10mm Super Bright Straw Hat Led Lamp
10mm Super Bright Straw Hat Led Lamp
10mm Super Bright Straw Hat Led Lamp
